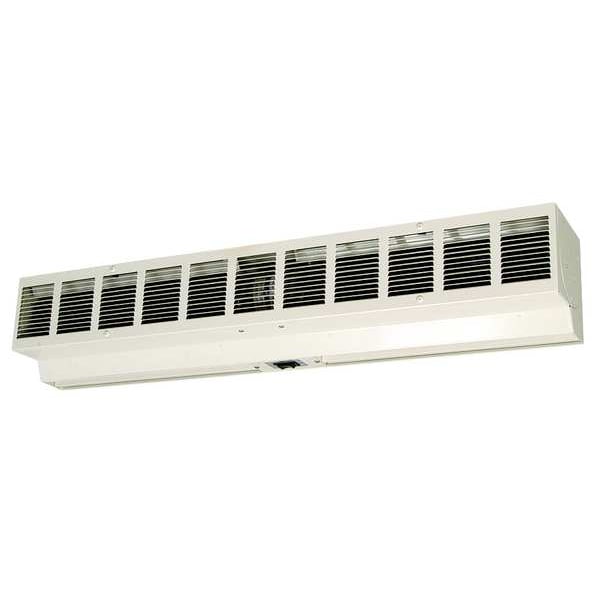

Compact Air Curtain
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Item | Unhtd 7.5"H 42"W 6.8"D Steel Air Curtain |
| Width | 42 in |
| Phase | 1 |
| Max. Mounting Height | 8 ft |
| Air Curtain Finish | Painted |
| Number of Motors | 1 |
| Height | 7-3/8 in |
| Air Curtain Air Velocity | 1800/1350 fpm |
| Voltage | 120 V |
| Air Curtain Air Volume | 1.3333 cfm |
| Air Curtain Max. Door Width | 3 ft 6 in |
| Air Curtain dBA @ 10 Feet | 66 dBA |
| Depth | 6-3/4 in |
| Air Curtain Heated | No |
| Air Curtain Housing Material | Steel |
| Hz | 60 |
| Max. Amps | 1.6 |
| Number of Speeds | 2 |
| Motor Enclosure | Totally Enclosed |
| Includes | Not Applicable |
| Air Curtain Item | Low Profile Air Curtain |
| Housing Color | Light Tan |
| Max. RPM | 1,600 |
| Motor Type | Permanent Split Capacitor |
| Motor HP | 0.125 |
| Overall Depth | 6-3/4 in |
| Standards | ETL Listed |
| Control Type | Switch |
| Overall Height | 7-3/8 in |
| Overall Width | 42 in |
| Finish | Painted |
| Housing Material | Steel |
| Electrical Connection | Plug-In |
| Series | Not Applicable |
| Maximum Operating Temperature | Not Available |
| Ultraviolet Air Cleaning | No |
| For Frame Opening Width | 3 ft 6 in |
| Nameplate Voltage | 120 V AC |
| NEMA Plug Configuration | 5-15P |
| Hazardous Location Specification | Not Applicable |
| Air Temperature Rise | Not Applicable |
| Power Cord Length | 6 ft |
| Heat Source | Not Applicable |
| Heated/Not Heated | Not Heated |
| Washdown | No |
| Sound Level @ 10 ft | 66 dBA |
| Nozzle Width | 2-1/2 in |
| Full Load Current | 1.6 A |
| Maximum Speed | 1,600 rpm |
| Sanitation Certified | No |
| Frequency | 60 Hz |
| HEPA Air Cleaning | No |
| Motor IP Rating | IP44 |
| Mounting Height for Insect Control | 8 ft |
| Power Consumption | 0.21 kW |
| Minimum Operating Temperature | Not Available |
| Maximum Air Velocity | 1,800 fpm |
| Heater Power Consumption | Not Applicable |
| Mounting Height for Temperature Control | 8 ft |
| For Outdoor Use | No |
| Profile Type | Low Profile |
| Grille Material | Steel |
| Assembly | Assembled |
| Mounting Hole Diameter | 1/4 in |
| Motor Horsepower per Motor | 0.125 HP |
| Maximum Air Volume | 1,200 cfm |
| Includes Mounting Fasteners | No |
| Drive Type | Direct Drive |
| Type of Entrance | Front Customer Door |
| Country of Origin (subject to change) | Thailand |
| Package Quantity | 1 |
