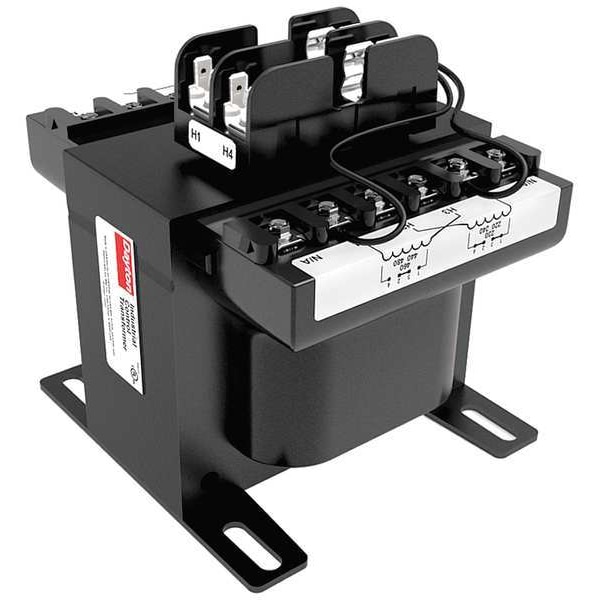

Control Transformer, 1.5 kVA, 80°C, 12/24V AC, 120V AC
| Item | Control Transformer |
|---|---|
| Input Voltage - Transformer | 120V AC |
| Mounting - Transformer | Foot |
| Hz - Electrical | 50/60 Hz |
| Green Environmental Attribute | Does Not Contain PVC |
| Standards | cUL Listed, UL Listed |
| Depth | 6.81 in |
| VA Rating - Transformer | 1.5 kVA |
| Output Voltage - Transformer | 12/24V AC |
| Width | 6-3/4 in |
| Enclosure Finish | Epoxy |
| Temp. Rise | 80 deg C |
| Phase - Electrical | 1 |
| Height | 7.18 in |
| Includes | Primary Fuse Block |
| Manufacturers Warranty Length | 20 yr |
| Fused | Yes |
| Protective Device | Primary Fuse |
| Enclosure Style - Transformer | Encapsulated |
| For Fuse Class | CC |
| For Fuse Length | 1-1/2 in |
| For Fuse Diameter | 13/16 in |
| Package Quantity | 1 |
