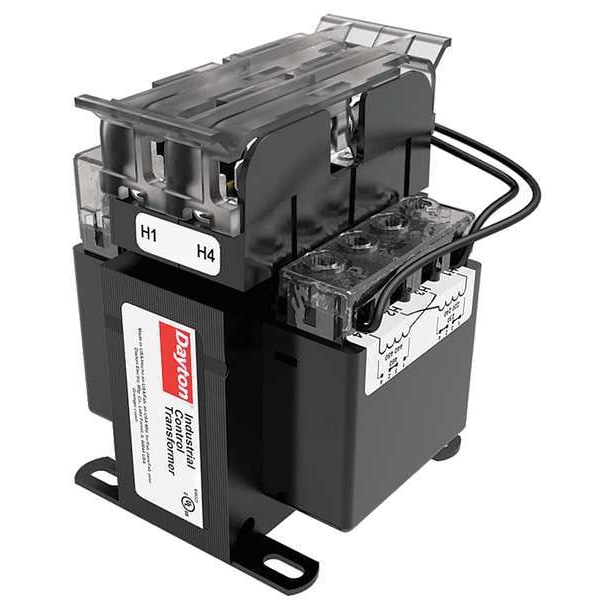

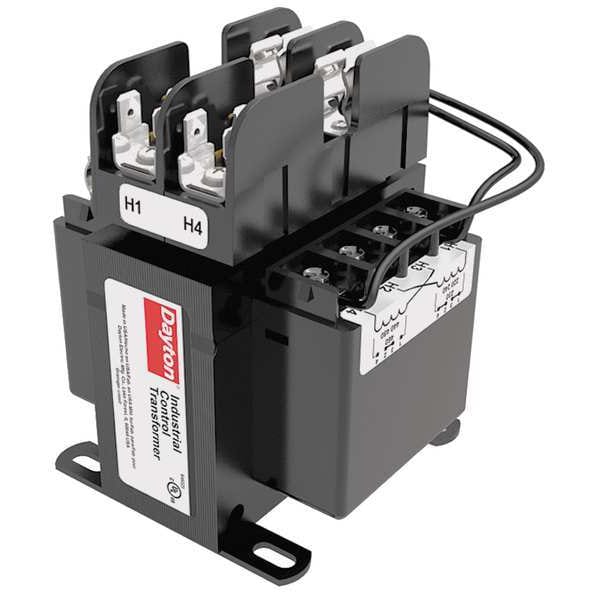

Control Transformer, 150 VA, 80°C, 120V AC, 240/480V AC
| CAD Available | Yes |
|---|---|
| Item | Control Transformer |
| Input Voltage - Transformer | 240/480V AC |
| Mounting - Transformer | Foot |
| Hz - Electrical | 50/60 Hz |
| Depth | 3.96 in |
| Height | 4.67 in |
| Phase - Electrical | 1 |
| Output Voltage - Transformer | 120V AC |
| Green Environmental Attribute | Does Not Contain PVC |
| Temp. Rise | 80 deg C |
| Includes | Dual Class CC Primary Fuse Block and Secondary Fuse Clips |
| Protective Device | Primary and Secondary Fuse |
| Standards | RoHS, UL/cUL Listed File #E46323 |
| Enclosure Finish | No Finish |
| Fused | Yes |
| Manufacturers Warranty Length | 20 yr |
| Enclosure Style - Transformer | Encapsulated |
| VA Rating - Transformer | 150 VA |
| Width | 3-3/4 in |
| For Fuse Class | CC |
| For Fuse Length | 1-1/2 in |
| For Fuse Diameter | 7/16 in |
| Package Quantity | 1 |
