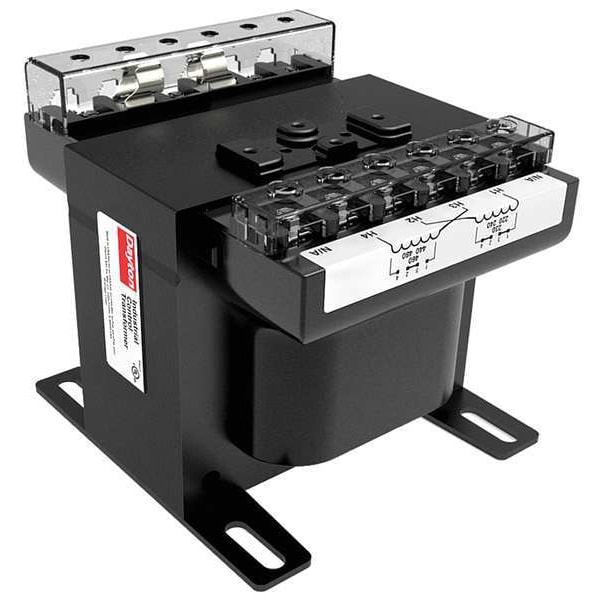

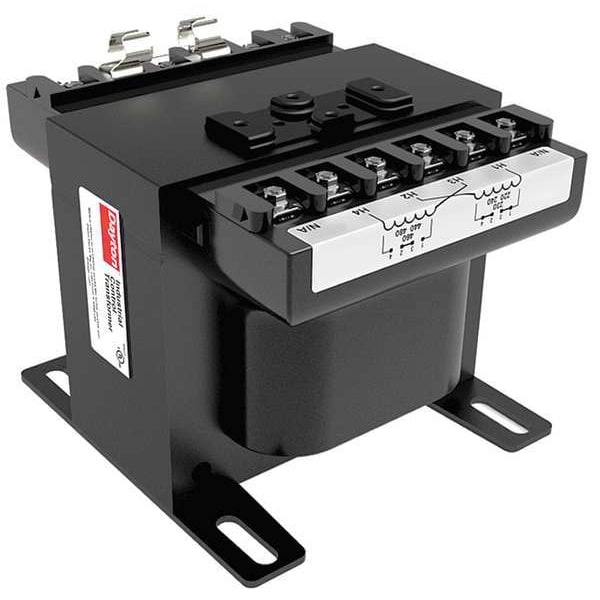

Control Transformer, 2 kVA, 115°C, 120V AC, 208/240/480V AC
| Item | Control Transformer |
|---|---|
| Input Voltage - Transformer | 208/240/480V AC |
| Mounting - Transformer | Foot |
| Hz - Electrical | 50/60 Hz |
| Protective Device | Secondary Fuse |
| Width | 6-3/4 in |
| Output Voltage - Transformer | 120V AC |
| Phase - Electrical | 1 |
| Height | 6.05 in |
| Enclosure Style - Transformer | Encapsulated |
| Fused | No |
| Temp. Rise | 115 deg C |
| Standards | cUL Listed, UL Listed |
| Includes | Factory Installed Secondary Fuse Clip |
| VA Rating - Transformer | 2 kVA |
| Manufacturers Warranty Length | 20 yr |
| Depth | 8.13 in |
| Green Environmental Attribute | Does Not Contain PVC |
| Enclosure Finish | Epoxy |
| For Fuse Class | Midget |
| For Fuse Diameter | 7/16 in |
| For Fuse Length | 1-1/2 in |
| Package Quantity | 1 |
