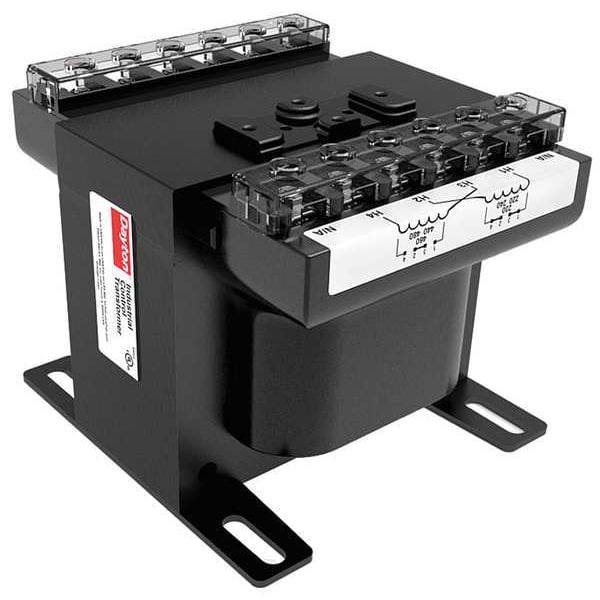

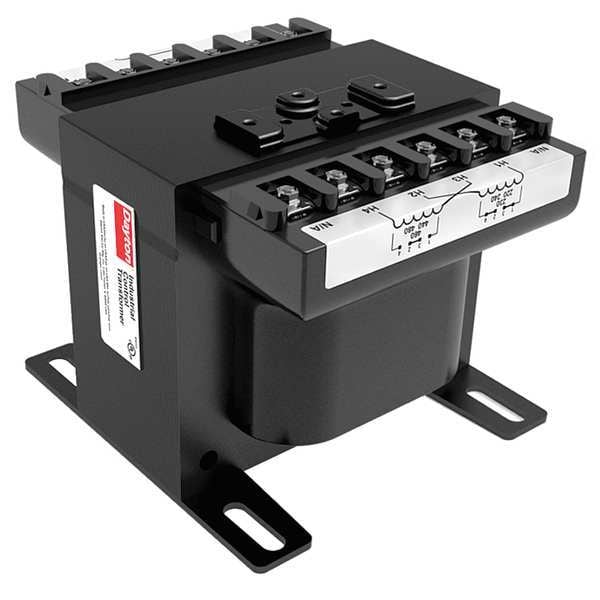

Control Transformer, 3 kVA, 115°C, 120V AC, 208/240/480V AC
| Item | Control Transformer |
|---|---|
| Input Voltage - Transformer | 208/240/480V AC |
| Mounting - Transformer | Foot |
| Hz - Electrical | 50/60 Hz |
| Protective Device | None |
| Phase - Electrical | 1 |
| Enclosure Finish | Epoxy |
| Width | 9 in |
| Output Voltage - Transformer | 120V AC |
| VA Rating - Transformer | 3 kVA |
| Green Environmental Attribute | Does Not Contain PVC |
| Standards | cUL Listed, UL Listed |
| Manufacturers Warranty Length | 20 yr |
| Includes | Not Applicable |
| Height | 7-1/2 in |
| Fused | No |
| Depth | 8-1/2 in |
| Temp. Rise | 115 deg C |
| Enclosure Style - Transformer | Encapsulated |
| Package Quantity | 1 |
