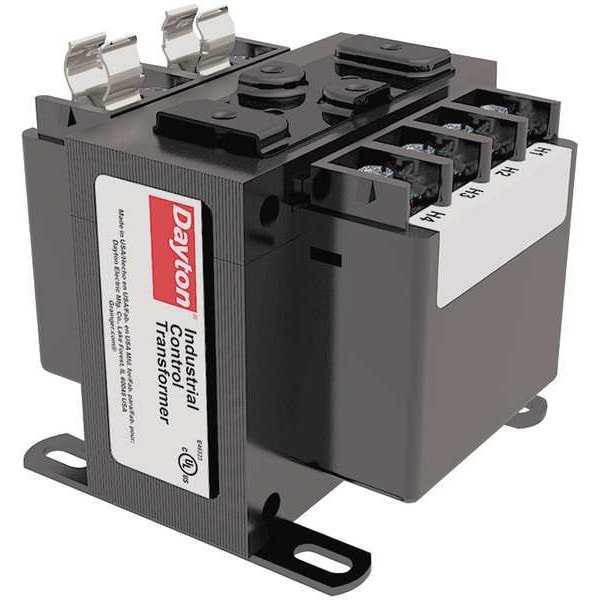

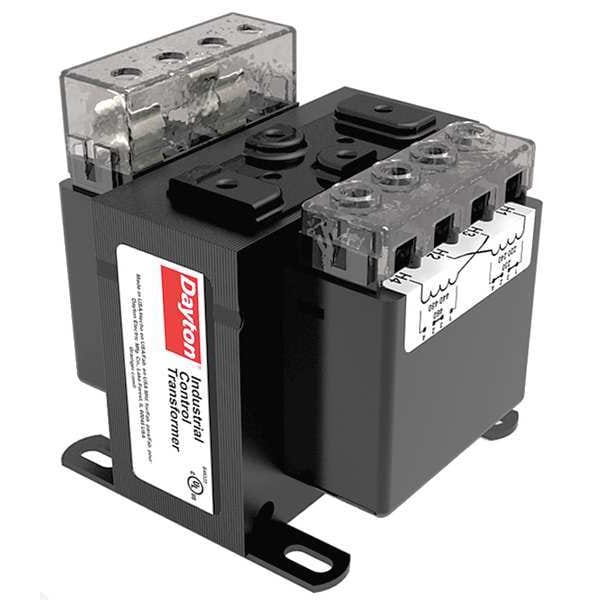

Control Transformer, 300 VA, 80°C, 24V AC, 277V AC
| Item | Control Transformer |
|---|---|
| Input Voltage - Transformer | 277V AC |
| Mounting - Transformer | Foot |
| Hz - Electrical | 50/60 Hz |
| Enclosure Finish | No Finish |
| Output Voltage - Transformer | 24V AC |
| Enclosure Style - Transformer | Encapsulated |
| Width | 4-1/2 in |
| Manufacturers Warranty Length | 20 yr |
| Includes | Factory Installed Secondary Fuse Clip |
| Depth | 4.88 in |
| Green Environmental Attribute | Does Not Contain PVC |
| Height | 4.11 in |
| Protective Device | Secondary Fuse |
| Standards | cUL Listed, UL Listed |
| VA Rating - Transformer | 300 VA |
| Temp. Rise | 80 deg C |
| Phase - Electrical | 1 |
| Fused | No |
| For Fuse Class | Midget |
| For Fuse Length | 1-1/2 in |
| For Fuse Diameter | 7/16 in |
| Package Quantity | 1 |
