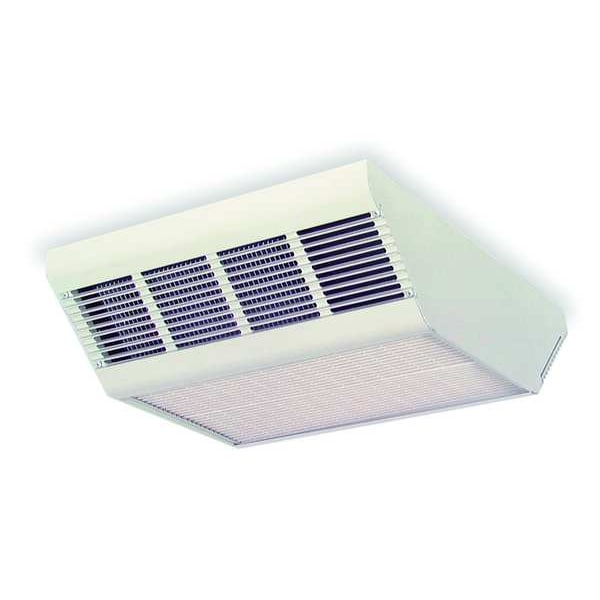

Convection Ceiling Heater, 208V, 13,700Btu
| Item | Surface-Mount Electric Ceiling Heater |
|---|---|
| Heater Voltage | 208VAC |
| kW | 4/3/2 |
| BtuH | 13,700/10,200/6800 |
| Phase | 1 or 3 |
| Amps | 19.2/14.2/9.6 |
| Mounting Type | Surface |
| Length | 20 in |
| Width | 16-1/2 in |
| Height | 5-3/4 in |
| Finish | Neutral Gray Baked Enamel Electrostatic Painting |
| Hz | 60 |
| Air Temp. Rise | 51 deg F |
| Standards | UL Listed, CUL Listed |
| Manufacturers Warranty Length | 1 yr (Limited), 5 yr (Elements) |
| Features | Adjustable Directional Airflow |
| Watts | 4000/3000/2000 |
| Voltage | 208 V |
| Overall Width | 16-7/16 in |
| Overall Height | 5-3/4 in |
| Housing Color | White |
| Housing Material | Steel |
| Wattage Output | 2000W/3000W/4000W |
| Overall Dimensions - H x W x D | 5-3/4 in x 16-7/16 in x 5-3/4 in |
| Smart Connectivity | No Connectivity |
| Voltage, Phase | 208V AC, 1 or 3-phase |
| Housing Finish | Baked-Enamel Electrostatic |
| Air Flow | 283 cfm |
| Amperage | 9.6A/14.2A/19.2A |
| Frequency | 60 Hz |
| Thermostat Included | No |
| Heating Method | Fan Forced |
| Overall Depth | 5-3/4 in |
| Heating Capacity | 6800/10,200/13,700 BtuH |
| Control Type | Mechanical Selector Dial |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
