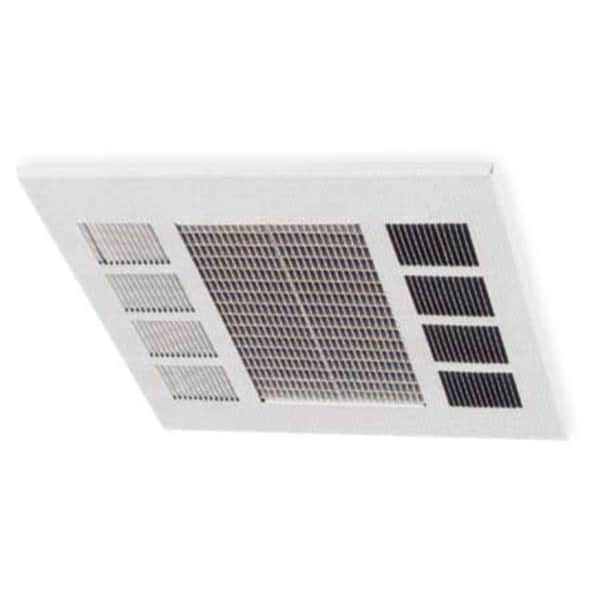

Convection Ceiling Heater, 240V, 17,100Btu
| Item | Electric Ceiling Panel Heater |
|---|---|
| Heater Voltage | 240VAC |
| kW | 5/3.8/2.5 |
| BtuH | 17,100/13,000/8500 |
| Phase | 1 or 3 |
| Amps | 20.8/15.8/10.4 |
| Mounting Type | Recessed |
| Length | 23-3/4 in |
| Width | 23-3/4 in |
| Height | 5-3/4 in |
| Watts | 5000/3800/2500 |
| Standards | UL Listed, cUL Listed |
| Features | Adjustable Directional Airflow |
| Finish | Neutral Gray Baked Enamel Electrostatic Painting |
| Hz | 60 |
| Air Temp. Rise | 45 deg F |
| Manufacturers Warranty Length | 1 yr (Limited), 5 yr (Elements) |
| Overall Height | 5-3/4 in |
| Overall Width | 23-3/4 in |
| Voltage | 240 V |
| Overall Length | 23-3/4 in |
| Housing Finish | Baked Enamel |
| Overall Dimensions - L x W x D | 23-3/4 in x 23-3/4 in x 5-3/4 in |
| Air Flow | 300 cfm |
| Heater Mounting Position | Vertical Burn |
| Frequency | 60 Hz |
| Overall Depth | 7 in |
| Wattage Output | 2500W/3800W/5000W |
| Amperage | 20.8A/15.8A/10.4A |
| Housing Color | White |
| Control Type | Thermostat |
| Thermostat Included | No |
| Heating Capacity | 8500/13,000/17,100 BtuH |
| Housing Material | Steel |
| Voltage, Phase | 240V AC, 1 or 3-phase |
| Heating Method | Fan Forced |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
