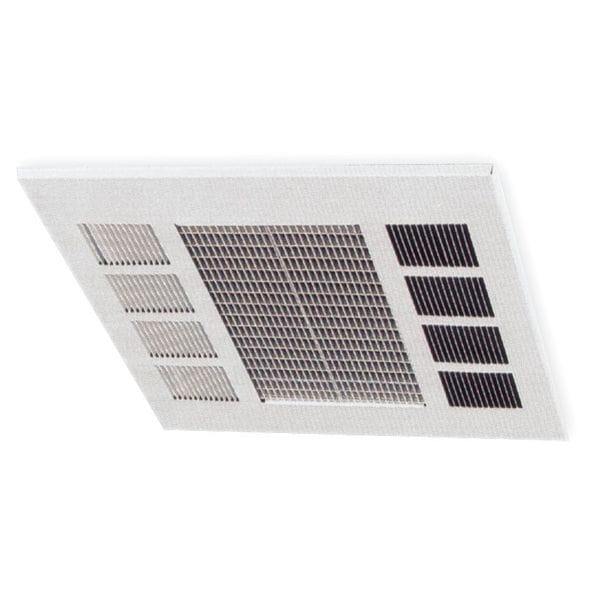

Convection Ceiling Heater, 277V, 13,700Btu
| Item | Electric Ceiling Panel Heater |
|---|---|
| Heater Voltage | 277VAC |
| kW | 4/3/2 |
| BtuH | 13,700/10,200/6800 |
| Phase | 1 |
| Amps | 14.4/10.8/7.2 |
| Mounting Type | Recessed |
| Length | 23-3/4 in |
| Width | 23-3/4 in |
| Height | 5-3/4 in |
| Finish | Neutral Gray Baked Enamel Electrostatic Painting |
| Watts | 4000/3000/2000 |
| Air Temp. Rise | 51 deg F |
| Manufacturers Warranty Length | 1 yr (Limited), 5 yr (Elements) |
| Standards | UL Listed, cUL Listed |
| Hz | 60 |
| Features | Adjustable Directional Airflow |
| Overall Height | 5-3/4 in |
| Overall Length | 23-3/4 in |
| Overall Width | 23-3/4 in |
| Voltage | 277 V |
| Heating Capacity | 6,800/10,200/13,700 BtuH |
| Frequency | 60 Hz |
| Air Flow | 300 cfm |
| Heating Method | Fan Forced |
| Housing Material | Steel |
| Housing Color | Gray |
| Thermostat Included | No |
| Amperage | 14.4A/10.8A/7.2A |
| Overall Dimensions - L x W x D | 23-3/4 in x 23-3/4 in x 5-3/4 in |
| Control Type | Thermostat |
| Overall Depth | 7 in |
| Voltage, Phase | 277V AC, 1-phase |
| Wattage Output | 2000W/3000W/4000W |
| Heater Mounting Position | Vertical Burn |
| Housing Finish | Baked Enamel |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
