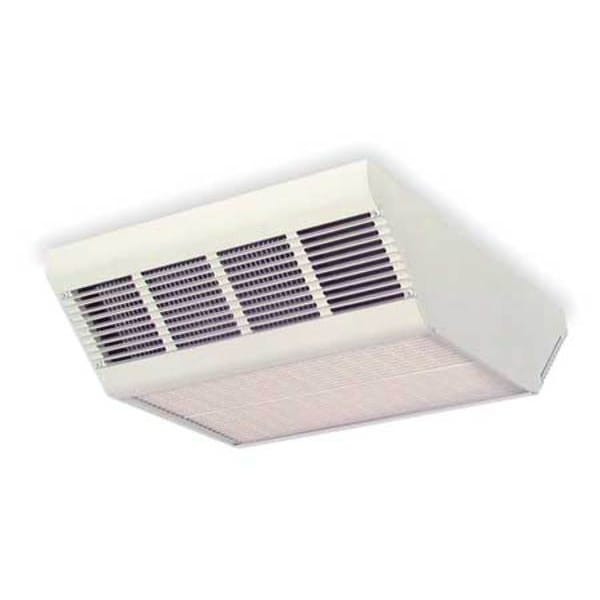

Convection Ceiling Heater, 277V, 17,100Btu
| Item | Surface-Mount Electric Ceiling Heater |
|---|---|
| Heater Voltage | 277VAC |
| kW | 5/3.8/2.5 |
| BtuH | 17,100/13,000/8500 |
| Phase | 1 |
| Amps | 18.1/13.7/9.0 |
| Mounting Type | Surface |
| Length | 20 in |
| Width | 16-1/2 in |
| Height | 5-3/4 in |
| Standards | ETL Listed, UL Listed, C-UL Listed |
| Hz | 60 |
| Air Temp. Rise | 45 deg F |
| Manufacturers Warranty Length | 1 yr (Limited), 5 yr (Elements) |
| Finish | Neutral Gray Baked Enamel Electrostatic Painting |
| Features | Adjustable Directional Airflow |
| Watts | 5000/3800/2500 |
| Voltage | 277 V |
| Overall Height | 5-3/4 in |
| Overall Width | 16-7/16 in |
| Thermostat Included | No |
| Heating Method | Fan Forced |
| Amperage | 9A/13.7A/18.1A |
| Heating Capacity | 8500/13,000/17,100 BtuH |
| Housing Color | White |
| Housing Material | Steel |
| Housing Finish | Baked-Enamel Electrostatic |
| Control Type | Mechanical Selector Dial |
| Overall Depth | 5-3/4 in |
| Smart Connectivity | No Connectivity |
| Frequency | 60 Hz |
| Wattage Output | 2500W/3800W/5000W |
| Air Flow | 283 cfm |
| Voltage, Phase | 277V AC, 1-phase |
| Overall Dimensions - H x W x D | 5-3/4 in x 16-7/16 in x 5-3/4 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
