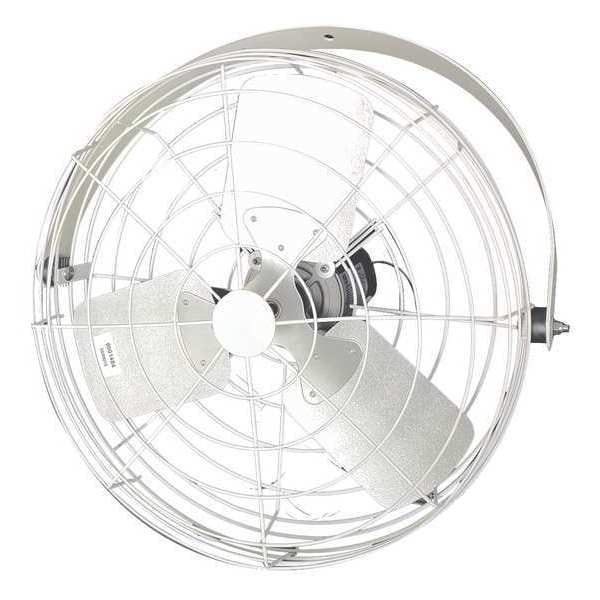

Corrosion Resistant Industrial Fan, Ceiling, IBeam, Wall Mount, 20 in Blade Dia, 115/230V
| Blade Diameter | 20 in |
|---|---|
| Oscillation | Non-Oscillating |
| Number of Speeds | Variable |
| Voltage | 115/230V |
| Phase | 1 |
| Motor HP | 0.1 HP |
| Air Flow | 1,850/1,700/1,500 cfm |
| Drive Type | Direct Drive |
| Blade Material | Galvalume(R) |
| Sound Level | 57 dBA |
| Item | Industrial Fan |
| Environmental Applications | Agricultural |
| Motor Insulation | Class B |
| Width | 13 in |
| Motor Type | Split Phase |
| Mobile/Stationary | Stationary |
| Application | Spot Cooling |
| Max. Depth | 12 in |
| CFM Low | 1,450 |
| Thermal Protection | Yes |
| Housing Material | Steel |
| Wire Guard Finish | Powder Coated |
| CFM/Watt | 20.3 |
| Max. Ambient Temp. | 120 deg F |
| Height | 24 in |
| Watts | 100 W |
| Shaft Dia. | 1/2 in |
| Motor Enclosure | Totally Enclosed Air Over |
| Motor RPM | 1700 RPM |
| Hz | 60 |
| CFM High | 1,980 |
| Includes | Mounting Accessory |
| Fan Mounting Location | Wall, Ceiling, IBeam |
| CFM Medium | 1,890 |
| Guard Material | Steel |
| Outside Dia. | 23 in |
| Assembled | Yes |
| Number of Blades | 3 |
| Fan Style | Corrosion Resistant |
| Material | Steel |
| Amps | 1.0/.5 |
| Fan Cord Length | 9 ft |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
