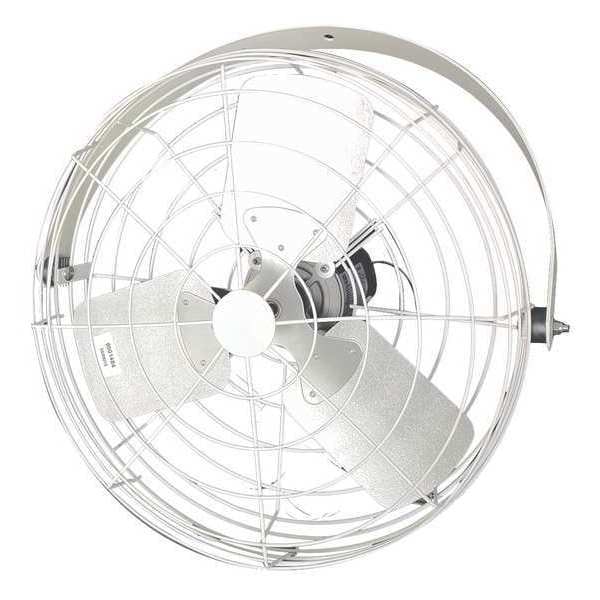

Corrosion Resistant Industrial Fan, Ceiling, IBeam, Wall Mount, 24 in Blade Dia, 115/230V
| Blade Diameter | 24 in |
|---|---|
| Oscillation | Non-Oscillating |
| Number of Speeds | Variable |
| Voltage | 115/230V |
| Phase | 1 |
| Motor HP | 0.3333 HP |
| Air Flow | 3,450/3,790/3,850 cfm |
| Drive Type | Direct Drive |
| Blade Material | Galvalume(R) |
| Sound Level | 62 dBA |
| Item | Industrial Fan |
| Shaft Dia. | 1/2 in |
| Max. Ambient Temp. | 120 deg F |
| Number of Blades | 3 |
| Environmental Applications | Industrial |
| CFM Medium | 3,790 |
| Guard Material | Steel |
| Motor Insulation | Class B |
| Assembled | Yes |
| Motor RPM | 1,725 RPM |
| Width | 15 in |
| Motor Enclosure | Totally Enclosed Air Over |
| Height | 28 in |
| Motor Type | Split Phase |
| CFM Low | 3,450 |
| Hz | 60 |
| Outside Dia. | 27 in |
| Fan Mounting Location | Wall, Ceiling, IBeam |
| Includes | Mounting Accessory |
| Mobile/Stationary | Stationary |
| Application | Spot Cooling |
| CFM/Watt | 13.1 |
| Thermal Protection | Yes |
| Max. Depth | 14 in |
| Watts | 336 W |
| Wire Guard Finish | Powder Coated |
| Housing Material | Steel |
| CFM High | 3,850 |
| Fan Style | Corrosion Resistant |
| Fan Housing Material | Steel |
| Fan Cord Length | 9 ft |
| Wheeled Base | Stationary |
| Assembly Required | No |
| RPM | 1725 |
| Amps | 3.5/1.7 |
| Depth | 14 in |
| Material | Steel |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
