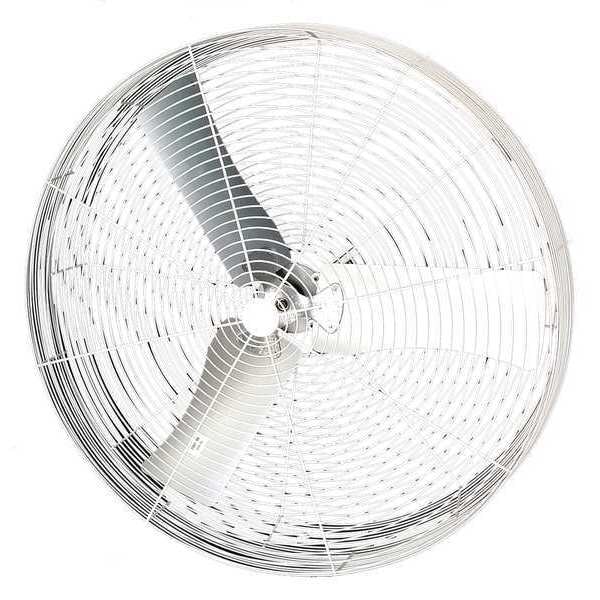

Corrosion Resistant Industrial Fan, Ceiling, IBeam, Wall Mount, 36 in Blade Dia, 115/230V
| Blade Diameter | 36 in |
|---|---|
| Oscillation | Non-Oscillating |
| Number of Speeds | 1 |
| Voltage | 115/230V |
| Phase | 1 |
| Motor HP | 0.5 HP |
| Air Flow | 12,627 cfm |
| Drive Type | Direct Drive |
| Blade Material | Galvalume(R) |
| Sound Level | 66 dBA |
| Item | Industrial Fan |
| Motor Insulation | Class B |
| Guard Material | Steel |
| Height | 42 in |
| Hz | 60 |
| Motor Enclosure | Totally Enclosed Air Over |
| Width | 14 in |
| Watts | 551 W |
| Wire Guard Finish | Powder Coated |
| CFM/Watt | 18.1 |
| Outside Dia. | 40 in |
| Assembled | Yes |
| Thermal Protection | Yes |
| CFM Low | 12,627 |
| Shaft Dia. | 5/8 in |
| Motor Type | Dual Voltage Capacitor Start |
| Application | Spot Cooling |
| Fan Mounting Location | Wall, Ceiling, IBeam |
| Max. Depth | 16 in |
| Includes | Mounting Accessory |
| Motor RPM | 825 RPM |
| Max. Ambient Temp. | 120 deg F |
| CFM High | 12,627 |
| CFM Medium | 12,627 |
| Number of Blades | 3 |
| Mobile/Stationary | Stationary |
| Environmental Applications | Agricultural |
| Housing Material | Steel |
| Fan Style | Corrosion Resistant |
| Material | Steel |
| Amps | 5.2/2.6 |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
