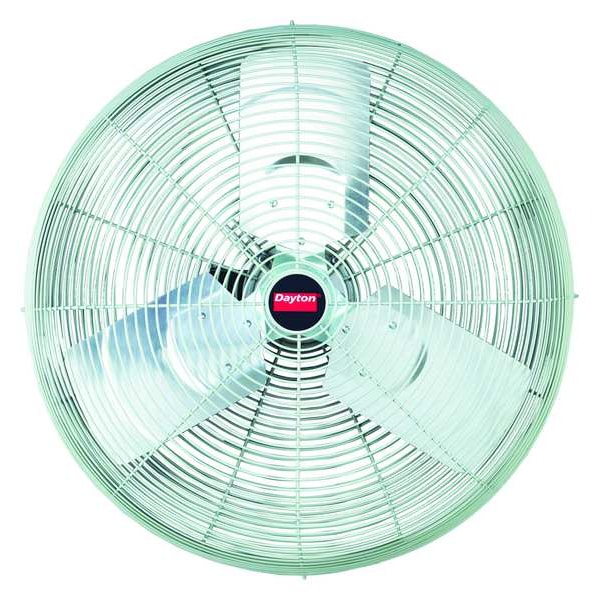

Corrosion Resistant Standard Duty Industrial Fan, Ceiling Mount, 24 in Blade Dia, 115V, 6,400 cfm
| Blade Diameter | 24 in |
|---|---|
| Oscillation | Non-Oscillating |
| Number of Speeds | 1 |
| Voltage | 115V |
| Phase | 1 |
| Motor HP | 0.25 HP |
| Air Flow | 6,400 cfm |
| Drive Type | Direct Drive |
| Blade Material | Aluminum |
| Sound Level | 74 dBA |
| Item | Industrial Fan |
| Fan Accessory Style | Standard |
| Assembled | Yes |
| Height | 31 in |
| Watts | 320 W |
| Mobile/Stationary | Stationary |
| Max. Depth | 13-1/4 in |
| Includes | S Hooks and Mounting Chains |
| Number of Conductors | 3 |
| Fan Style | Standard Duty |
| Bearing Type | Ball |
| Fan Mounting Location | Ceiling |
| Standards | UL/cUL/OSHA/UL 507 Humidity Conditioning and Water Spray Test |
| Max. Ambient Temp. | 104 deg F |
| Motor Enclosure | Totally Enclosed Air Over |
| Hz | 60 |
| CFM High | 6,400 |
| Air Velocity @ 10 Ft. | 1,050 fpm |
| Air Velocity @ 40 Ft. | 150 fpm |
| Outside Dia. | 27 in |
| NEMA Plug Configuration | 5-15p |
| Motor RPM | 1,100 RPM |
| Air Velocity @ 20 Ft. | 465 fpm |
| Environmental Applications | Industrial |
| CFM/Watt | 49 |
| Wire Guard Finish | Powder Coated |
| Application | Greenhouse Cooling |
| Width | 27 in |
| Guard Material | Steel |
| Motor Insulation | Class B |
| Thermal Protection | Automatic Reset |
| Number of Blades | 3 |
| Shaft Dia. | 1/2 in |
| Motor Type | Permanent Split Capacitor |
| Housing Material | Steel |
| Fan Housing Material | Steel |
| Color | Gray |
| Depth | 13-1/4 in |
| Height Adjustment | Fixed Height |
| Amps | 2.8 |
| Wheeled Base | Stationary |
| Fan Cord Length | 10 ft |
| Assembly Required | No |
| RPM | 1100 |
| Material | Steel |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
