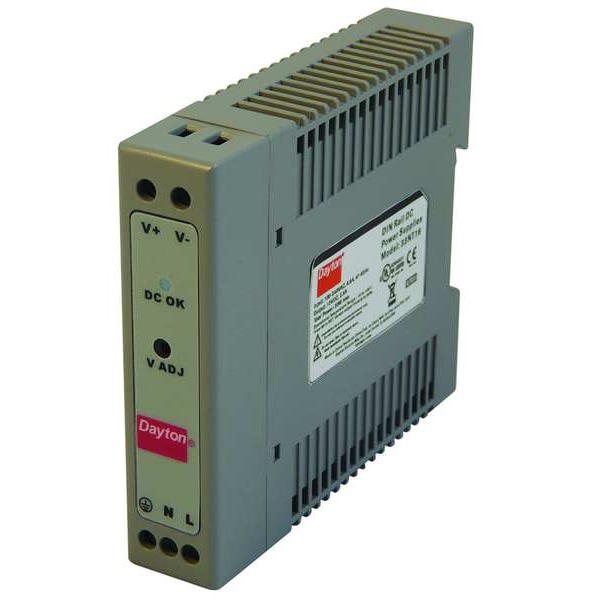

DC Power Supply, 90/264V AC, 12V DC, 30W, 2.5A, DIN Rail
| Item | DC Power Supply |
|---|---|
| Input Voltage | 90/264V AC |
| Output Voltage | 12V DC |
| Power Rating | 30 W |
| Output Amps | 2.5 A |
| Mounting | DIN Rail |
| Case Material | Plastic Case |
| Phase - Electrical | Single |
| Style | Switching |
| Height | 3.54 in |
| Width | 0.9 in |
| Depth | 4.02 in |
| Hz | 47 to 63 Hz |
| IP Rating | IP20 |
| Output Noise | Less Than or Equal to 1% |
| Peak Amps | 2.5 |
| Status Indicator | Green DC OK Signal |
| Features | Adjustable Output Voltage Compensates for Voltage Drop, Capable of Parallel Connection to Provide Redundancy for Critical Load Applications, Full Enclosed Touch-Safe Enclosure and Terminals, High Peak Power Eliminates the Need to Oversize Your Power Supply, Narrow Width Conserves Valuable Space On the DIN Rail, Universal Input Without Voltage Gaps for Full Product Application Versatility |
| Standards | cULus Listed |
| Operating Temp. Range | -10 to 60 deg C |
| Hold Up Time | Greater than 16 msec |
| Series | Not Applicable |
| Wire Connection Type | Not Applicable |
| Maximum Efficiency @ 230V AC | Not Applicable |
| Manufacturer Warranty | 1 yr |
| Operating Temperature - Minimum | 14 deg F |
| NEMA Enclosure Rating | 1 |
| Wire Size - Maximum | Not Applicable |
| Operating Temperature - Maximum | 140 deg F |
| Current - Inrush | Not Applicable |
| Housing Material | Plastic |
| Start Up Time - Maximum | Not Applicable |
| Output Power - Rated | 30 W |
| Mean Time Between Failures (MTBF) | Not Applicable |
| Input Frequency - Nominal | 50/60 Hz |
| Output Power - Peak | Not Applicable |
| Maximum Efficiency @ 115V AC | Not Applicable |
| Wire Size - Minimum | Not Applicable |
| Current - Peak | 2.5 A |
| Special Features | Adjustable Output Voltage, Parallel Capability, Finger Safe |
| Current - Output | 2.5 A |
| Package Quantity | 1 |
