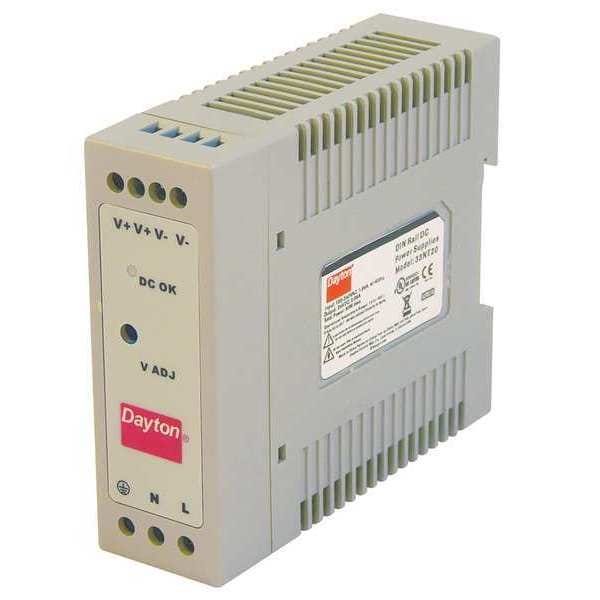

DC Power Supply, 90/264V AC, 24V DC, 50W, 2.1A, DIN Rail
| Item | DC Power Supply |
|---|---|
| Input Voltage | 90/264V AC |
| Output Voltage | 24V DC |
| Power Rating | 50 W |
| Output Amps | 2.1 A |
| Mounting | DIN Rail |
| Case Material | Plastic Case |
| Phase - Electrical | Single |
| Style | Switching |
| Height | 3.54 in |
| Width | 1.26 in |
| Depth | 4.02 in |
| Hz | 47 to 63 Hz |
| IP Rating | IP20 |
| Features | Adjustable Output Voltage Compensates for Voltage Drop, Capable of Parallel Connection to Provide Redundancy for Critical Load Applications, Full Enclosed Touch-Safe Enclosure and Terminals, High Peak Power Eliminates the Need to Oversize Your Power Supply, Narrow Width Conserves Valuable Space On the DIN Rail, Universal Input Without Voltage Gaps for Full Product Application Versatility |
| Standards | cULus Listed |
| Output Noise | Less Than or Equal to 1% |
| Operating Temp. Range | -10 to 60 deg C |
| Hold Up Time | Greater than 16 msec |
| Status Indicator | Green DC OK Signal |
| Peak Amps | 2.1 |
| Series | Not Applicable |
| Start Up Time - Maximum | Not Applicable |
| Special Features | Adjustable Output Voltage, Parallel Capability, Finger Safe |
| Current - Output | 2.1 A |
| NEMA Enclosure Rating | 1 |
| Current - Peak | 2.1 A |
| Maximum Efficiency @ 115V AC | Not Applicable |
| Housing Material | Plastic |
| Input Frequency - Nominal | 50/60 Hz |
| Maximum Efficiency @ 230V AC | Not Applicable |
| Operating Temperature - Minimum | 14 deg F |
| Manufacturer Warranty | 1 yr |
| Current - Inrush | Not Applicable |
| Wire Size - Maximum | Not Applicable |
| Mean Time Between Failures (MTBF) | Not Applicable |
| Output Power - Rated | 50 W |
| Output Power - Peak | Not Applicable |
| Operating Temperature - Maximum | 140 deg F |
| Wire Connection Type | Not Applicable |
| Wire Size - Minimum | Not Applicable |
| Package Quantity | 1 |
