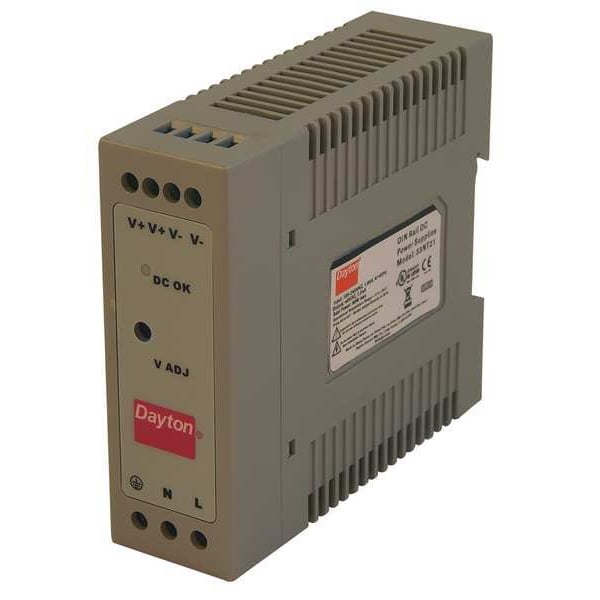

DC Power Supply, 90/264V AC, 48V DC, 50W, 1A, DIN Rail
| Item | DC Power Supply |
|---|---|
| Input Voltage | 90/264V AC |
| Output Voltage | 48V DC |
| Power Rating | 50 W |
| Output Amps | 1 A |
| Mounting | DIN Rail |
| Case Material | Plastic Case |
| Phase - Electrical | Single |
| Style | Switching |
| Height | 3.54 in |
| Width | 1.26 in |
| Depth | 4.02 in |
| Hz | 47 to 63 Hz |
| Standards | cULus Listed |
| IP Rating | IP20 |
| Status Indicator | Green DC OK Signal |
| Peak Amps | 1 |
| Operating Temp. Range | -10 to 60 deg C |
| Output Noise | Less Than or Equal to 1% |
| Hold Up Time | Greater than 16 msec |
| Features | Adjustable Output Voltage Compensates for Voltage Drop, Capable of Parallel Connection to Provide Redundancy for Critical Load Applications, Full Enclosed Touch-Safe Enclosure and Terminals, High Peak Power Eliminates the Need to Oversize Your Power Supply, Narrow Width Conserves Valuable Space On the DIN Rail, Universal Input Without Voltage Gaps for Full Product Application Versatility |
| Series | Not Applicable |
| Housing Material | Plastic |
| Output Power - Rated | 50 W |
| Maximum Efficiency @ 115V AC | Not Applicable |
| Special Features | Adjustable Output Voltage, Parallel Capability, Finger Safe |
| Wire Size - Minimum | Not Applicable |
| Current - Output | 1 A |
| Current - Inrush | Not Applicable |
| Manufacturer Warranty | 1 yr |
| Wire Connection Type | Not Applicable |
| Operating Temperature - Maximum | 140 deg F |
| Maximum Efficiency @ 230V AC | Not Applicable |
| NEMA Enclosure Rating | 1 |
| Output Power - Peak | Not Applicable |
| Current - Peak | 1 A |
| Mean Time Between Failures (MTBF) | Not Applicable |
| Operating Temperature - Minimum | 14 deg F |
| Wire Size - Maximum | Not Applicable |
| Start Up Time - Maximum | Not Applicable |
| Input Frequency - Nominal | 50/60 Hz |
| Package Quantity | 1 |
