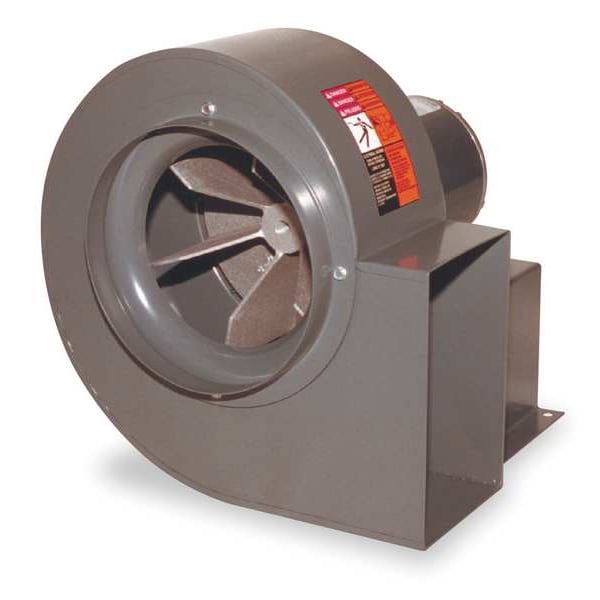

D/D Blower w/ Motor, 115/230 V
| Item | Blower |
|---|---|
| Type | With Motor |
| Wheel Dia. (In.) | 10-7/8 |
| Voltage | 115/230 |
| Motor HP | 0.75 |
| Discharge Width (In.) | 8 |
| Housing Material | Steel |
| Housing Finish | Gray Polyester Epoxy |
| dBA @ 5 Feet | 75 dBA |
| Max. Inlet Temp. (Deg. F) | 180 Degrees F |
| CFM @ 0.750-In. SP | 1,134 cfm |
| Motor RPM | 1,725 RPM |
| Full Load Amps | 11.0/5.5 |
| Motor Frame | 56 |
| CFM @ 1.000-In. SP | 916 |
| Wheel Width (In.) | 5-11/16 |
| Bearing Type | Ball in Motor |
| Width (In.) | 18 |
| CFM @ 1.500-In. SP | 97 |
| Agency Compliance | AMCA AIR |
| Discharge Height (In.) | 11-3/4 |
| Rotation | CW |
| Wheel Bore (In.) | 5/8 in |
| Height (In.) | 19 |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Blower RPM | 1,725 RPM |
| CFM @ 0.000-In. SP | 1,593 cfm |
| Depth (In.) | 17 |
| Phase | 1 |
| CFM @ 0.250-In. SP | 1,457 |
| Wheel Material | Aluminum |
| Hz | 60 |
| Assembled/Unassembled | Unassembled |
| CFM @ 0.500-In. SP | 1,309 |
| Max. Ambient Temp. (F) | 104 Degrees F |
| Inlet Dia. (In.) | 10 |
| Airflow @ 12.00 in SP | Not Applicable |
| Housing Material Gauge | 16 ga |
| Overall Width | 18 in |
| Airflow @ 6.000 in SP | Not Applicable |
| Outlet Width | 8 in |
| Sound Level | 75 dBA @ 5 ft |
| Manufacturer Warranty Length | 1 yr Limited |
| Drive Type | Direct Drive |
| Flange Size | Not Applicable |
| Overall Depth | 17 in |
| Flange Type | Non-Flanged |
| Features | Features a Self-Cleaning, Cast-Aluminum Wheel and a Housing That can be Rotated to 8 Discharge Positions in Each Rotation, Used to Convey Stringy or Straw-Like Material and is Perfectly Balanced and Aligned |
| Maximum Ambient Temperature | 104 Degrees F |
| Wheel Diameter | 11 in |
| Airflow @ 3.000 in SP | Not Applicable |
| Wheel Width | 5-11/16 in |
| Airflow @ 9.000 in SP | Not Applicable |
| Airflow @ 7.000 in SP | Not Applicable |
| Housing Depth | 17 in |
| Airflow @ 1.000 in SP | 916 cfm |
| Outlet Height | 11-3/4 in |
| Airflow @ 0.000 in SP | 1,593 cfm |
| Airflow @ 0.500 in SP | 1,309 cfm |
| Airflow @ 2.000 in SP | Not Applicable |
| Number of Discharge Positions | 8 |
| Maximum Inlet Air Temperature | 180 Degrees F |
| Airflow @ 4.000 in SP | Not Applicable |
| Airflow @ 1.500 in SP | 97 cfm |
| Airflow @ 0.250 in SP | 1,457 cfm |
| Overall Height | 19 in |
| Housing Height | 19 in |
| Motor Duty Class | Continuous |
| Inlet Diameter | 10 in |
| Motor Horsepower | 0.75 HP |
| Motor Type | Capacitor-Start |
| Frequency | 60 Hz |
| Includes Drive Package | Yes |
| Airflow @ 11.00 in SP | Not Applicable |
| Airflow @ 10.00 in SP | Not Applicable |
| Assembly | Unassembled |
| Airflow @ 0.750 in SP | 1,134 cfm |
| Maximum Fan Speed | 1,725 rpm |
| Current | 11.4/5.7 A |
| Airflow @ 13.00 in SP | Not Applicable |
| Wheel Bore Diameter | 5/8 in |
| Outlet Diameter | Not Applicable |
| Airflow @ 8.000 in SP | Not Applicable |
| Motor Speed | 1,725 rpm |
| Motor Frame Designation | 56 |
| Outlet Shape | Rectangular |
| Standards | AMCA Air Performance Certified |
| Motor Insulation Class | F |
| Number of Speeds | 1 |
| Number of Inlets | 1 |
| Housing Material Finish | Gray Polyester Epoxy |
| Maximum Static Pressure | 1.5 in wc |
| Nameplate Voltage | 115/208-230V AC |
| Housing Color | Gray |
| Housing Width | 18 in |
| Airflow @ 2.500 in SP | Not Applicable |
| Wheel Type | Radial |
| Includes Motor | Yes |
| Airflow @ 5.000 in SP | Not Applicable |
| Airflow @ 3.500 in SP | Not Applicable |
| Airflow @ 4.500 in SP | Not Applicable |
| OEM Replacement | No |
| Country of Origin (subject to change) | Multiple |
| Package Quantity | 1 |
