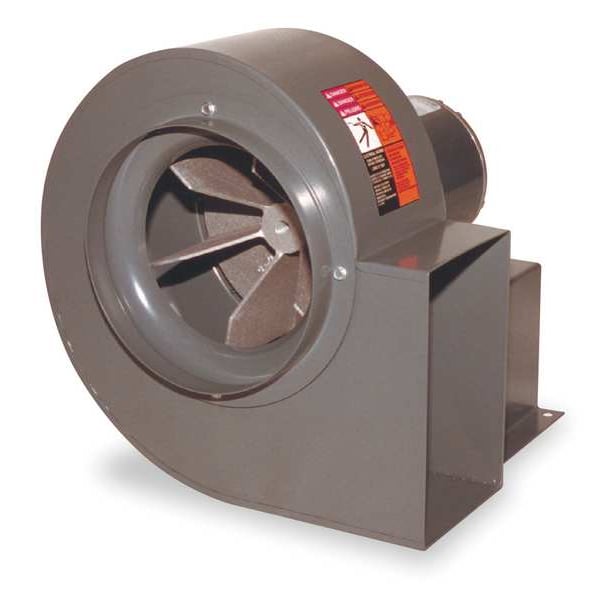

D/D Blower w/ Motor, 208-230/460 V
| Item | Blower |
|---|---|
| Type | With Motor |
| Wheel Dia. (In.) | 12-1/2 |
| Voltage | 208-230/460 |
| Motor HP | 1.5 |
| Discharge Height (In.) | 13-1/4 |
| Blower RPM | 1,725 RPM |
| Housing Material | Steel |
| Agency Compliance | AMCA AIR |
| Housing Finish | Gray Polyester Epoxy |
| Wheel Material | Aluminum |
| CFM @ 1.500-In. SP | 1,252 |
| Hz | 60 |
| Phase | 3 |
| Bearing Type | Ball in Motor |
| Wheel Width (In.) | 7-9/16 |
| Motor RPM | 1,725 RPM |
| dBA @ 5 Feet | 79 dBA |
| Full Load Amps | 4.8-4.8/2.4 |
| Height (In.) | 27 |
| CFM @ 0.750-In. SP | 2,007 cfm |
| CFM @ 2.000-In. SP | 166 |
| Discharge Width (In.) | 9-5/8 |
| Wheel Bore (In.) | 5/8 in |
| Rotation | CW |
| CFM @ 1.000-In. SP | 1,807 |
| Max. Inlet Temp. (Deg. F) | 180 Degrees F |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Inlet Dia. (In.) | 13-1/4 |
| Depth (In.) | 22 |
| CFM @ 0.250-In. SP | 2,331 |
| CFM @ 0.000-In. SP | 2,461 cfm |
| Assembled/Unassembled | Unassembled |
| Motor Frame | 56H |
| CFM @ 0.500-In. SP | 2,179 |
| Max. Ambient Temp. (F) | 104 Degrees F |
| Width (In.) | 22 |
| Outlet Shape | Rectangular |
| Number of Discharge Positions | 8 |
| Overall Depth | 22 in |
| Overall Width | 22 in |
| Airflow @ 12.00 in SP | Not Applicable |
| Housing Width | 22 in |
| Airflow @ 2.000 in SP | 166 cfm |
| Airflow @ 0.500 in SP | 2,179 cfm |
| Current | 4.3/2.1 A |
| Airflow @ 1.500 in SP | 1,252 cfm |
| Assembly | Unassembled |
| Nameplate Voltage | 208-230/460V AC |
| Airflow @ 5.000 in SP | Not Applicable |
| Airflow @ 13.00 in SP | Not Applicable |
| Wheel Diameter | 12-1/2 in |
| Housing Depth | 22 in |
| Airflow @ 4.500 in SP | Not Applicable |
| Airflow @ 2.500 in SP | Not Applicable |
| Airflow @ 8.000 in SP | Not Applicable |
| Wheel Bore Diameter | 5/8 in |
| Airflow @ 3.000 in SP | Not Applicable |
| Wheel Width | 7-1/2 in |
| Airflow @ 0.000 in SP | 2,461 cfm |
| Wheel Type | Radial |
| Airflow @ 0.250 in SP | 2,331 cfm |
| Maximum Static Pressure | 2 in wc |
| Airflow @ 6.000 in SP | Not Applicable |
| Drive Type | Direct Drive |
| Frequency | 50/60 Hz |
| Motor Insulation Class | F |
| Number of Inlets | 1 |
| Motor Speed | 1,755 rpm |
| Maximum Ambient Temperature | 104 Degrees F |
| Flange Type | Non-Flanged |
| Housing Material Gauge | 16 ga |
| Maximum Fan Speed | 1,725 rpm |
| Number of Speeds | 1 |
| Inlet Diameter | 13-1/4 in |
| Manufacturer Warranty Length | 1 yr Limited |
| Outlet Height | 13-1/4 in |
| Includes Drive Package | Yes |
| Housing Height | 27 in |
| Airflow @ 3.500 in SP | Not Applicable |
| Outlet Width | 9-5/8 in |
| Airflow @ 4.000 in SP | Not Applicable |
| Housing Material Finish | Gray Polyester Epoxy |
| Outlet Diameter | Not Applicable |
| Airflow @ 7.000 in SP | Not Applicable |
| Sound Level | 79 dBA @ 5 ft |
| Features | Features a Self-Cleaning, Cast-Aluminum Wheel and a Housing That can be Rotated to 8 Discharge Positions in Each Rotation, Used to Convey Stringy or Straw-Like Material and is Perfectly Balanced and Aligned |
| Airflow @ 11.00 in SP | Not Applicable |
| Motor Frame Designation | 56H |
| Motor Duty Class | Continuous |
| Motor Horsepower | 1.5 HP |
| Includes Motor | Yes |
| Standards | AMCA Air Performance Certified |
| Flange Size | Not Applicable |
| Airflow @ 0.750 in SP | 2,007 cfm |
| Airflow @ 10.00 in SP | Not Applicable |
| Airflow @ 1.000 in SP | 1,807 cfm |
| Maximum Inlet Air Temperature | 180 Degrees F |
| Housing Color | Gray |
| Airflow @ 9.000 in SP | Not Applicable |
| Overall Height | 27 in |
| OEM Replacement | No |
| Motor Type | 3-Phase |
| Country of Origin (subject to change) | Multiple |
| Package Quantity | 1 |
