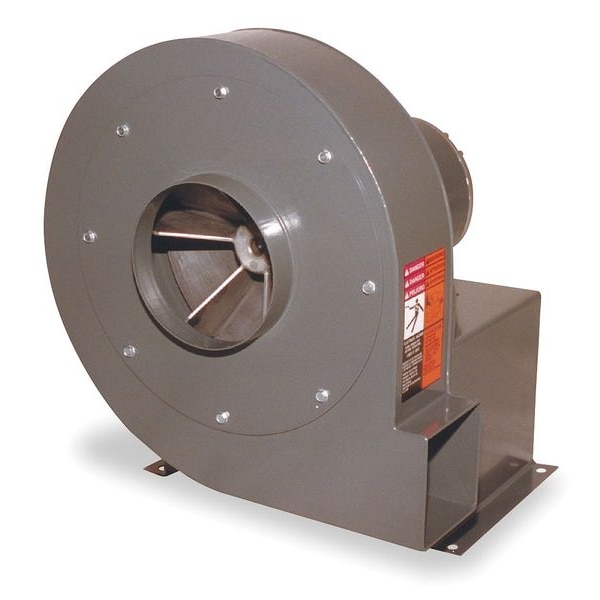

D/D Blower w/ Motor, 208-230/460 V
| Item | High Pressure Blower |
|---|---|
| Type | With Motor |
| Wheel Dia. (In.) | 7-3/4 |
| Voltage | 208-230/460 |
| Motor HP | 0.5 |

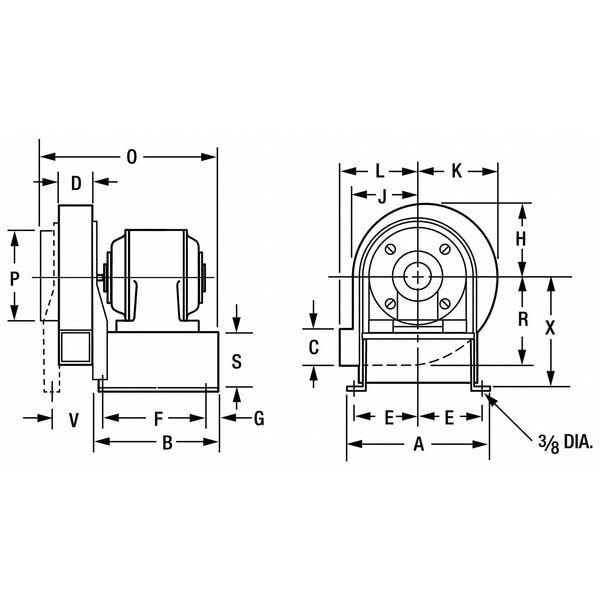

| Dimension D (In.) | 3 |
| Housing Finish | Gray Polyester Epoxy |
| Depth (In.) | 12-1/4 |
| Bearing Type | Ball in Motor |
| CFM @ 2.000-In. SP | 210 |
| Wheel Bore (In.) | 1/2 in |
| Discharge Height (In.) | 3 |
| Assembled/Unassembled | Unassembled |
| Rotation | CW |
| Full Load Amps | 1.7-1.8/0.9 |
| CFM @ 3.000-In. SP | 157 |
| Inlet Dia. (In.) | 4 |
| Dimension S (In.) | 5-1/2 |
| Dimension H (In.) | 5-3/8 |
| Motor Frame | 48 |
| Dimension B (In.) | 8 |
| Hz | 60 |
| Dimension J (In.) | 4-7/8 |
| Dimension L (In.) | 5-7/8 |
| Discharge Width (In.) | 3 |
| Dimension C (In.) | 3 |
| dBA @ 5 Feet | 74 dBA |
| CFM @ 1.000-In. SP | 252 |
| Dimension P (In.) | 6-5/8 |
| Dimension M (In.) | 5-7/8 |
| Motor Enclosure | Open Dripproof |
| Dimension G (In.) | 1/2 |
| Height (In.) | 15-1/8 |
| Dimension K (In.) | 12-1/4 |
| Width (In.) | 11-3/4 |
| Wheel Width (In.) | 2-5/16 |
| Agency Compliance | AMCA AIR |
| Dimension A (In.) | 11 |
| Max. Ambient Temp. (F) | 104 Degrees F |
| Phase | 3 |
| Dimension O (In.) | 4 |
| Dimension E (In.) | 5 |
| Max. Inlet Temp. (Deg. F) | 180 Degrees F |
| Dimension F (In.) | 7 |
| Shaft Dia. (In.) | 1/2 |
| Motor RPM | 3,450 RPM |
| Housing Material | Steel |
| Blower RPM | 3,450 RPM |
| Wheel Material | Aluminum |
| Outlet Width | 3 in |
| Airflow @ 11.00 in SP | Not Applicable |
| Airflow @ 10.00 in SP | Not Applicable |
| For Ventilation Type | Exhaust |
| Airflow @ 4.500 in SP | Not Applicable |
| Wheel Bore Diameter | 1/2 in |
| Includes Motor | Yes |
| Manufacturer Warranty Length | 1 yr Limited |
| Airflow @ 2.000 in SP | 210 cfm |
| Airflow @ 4.000 in SP | Not Applicable |
| Sound Level | 74 dBA @ 5 ft |
| Outlet Diameter | Not Applicable |
| Maximum Inlet Air Temperature | 180 Degrees F |
| Airflow @ 5.000 in SP | Not Applicable |
| Wheel Type | Radial |
| Motor Speed | 3,450 rpm |
| Motor Insulation Class | B |
| Overall Depth | 12-1/4 in |
| Airflow @ 13.00 in SP | Not Applicable |
| Motor Horsepower | 0.5 HP |
| Outlet Shape | Square |
| Wheel Diameter | 7-3/4 in |
| Current | 1.8/0.9 A |
| Discharge Position | Bottom Horizontal |
| Motor Duty Class | Continuous |
| Number of Discharge Positions | 8 |
| Airflow @ 8.000 in SP | Not Applicable |
| Housing Width | 11-3/4 in |
| Outlet Height | 3 in |
| Nameplate Voltage | 230/460V AC |
| Maximum Static Pressure | 3 in wc |
| Flange Size | Not Applicable |
| Maximum Ambient Temperature | 104 Degrees F |
| Airflow @ 9.000 in SP | Not Applicable |
| Overall Width | 11-3/4 in |
| Inlet Diameter | 4 in |
| Assembly | Unassembled |
| Airflow @ 6.000 in SP | Not Applicable |
| Housing Color | Gray |
| Frequency | 50/60 Hz |
| Housing Height | 15-1/8 in |
| Maximum Fan Speed | 3,450 rpm |
| Airflow @ 3.500 in SP | Not Applicable |
| Wheel Width | 2-1/4 in |
| Flange Type | Non-Flanged |
| Includes Drive Package | Yes |
| Airflow @ 3.000 in SP | 157 cfm |
| High-Efficiency Motor | Yes |
| Airflow @ 7.000 in SP | Not Applicable |
| Drive Type | Direct Drive |
| Housing Depth | 12-1/4 in |
| Housing Material Gauge | 16 ga |
| Number of Inlets | 1 |
| Airflow @ 12.00 in SP | Not Applicable |
| Features | Paddle-Type, Self-Cleaning are Precision Balanced for Top Performance, Powerful Blower Supplies High-Pressure Air for Efficient Cooling and Conveying |
| Airflow @ 1.000 in SP | 252 cfm |
| Number of Speeds | 1 |
| Shaft Diameter | 1/2 in |
| Standards | AMCA Air Performance Certified |
| Motor Frame Designation | 48 |
| Housing Material Finish | Gray Polyester Epoxy |
| Overall Height | 15-1/8 in |
| OEM Replacement | No |
| Motor Type | 3-Phase |
| Country of Origin (subject to change) | Multiple |
| Package Quantity | 1 |
