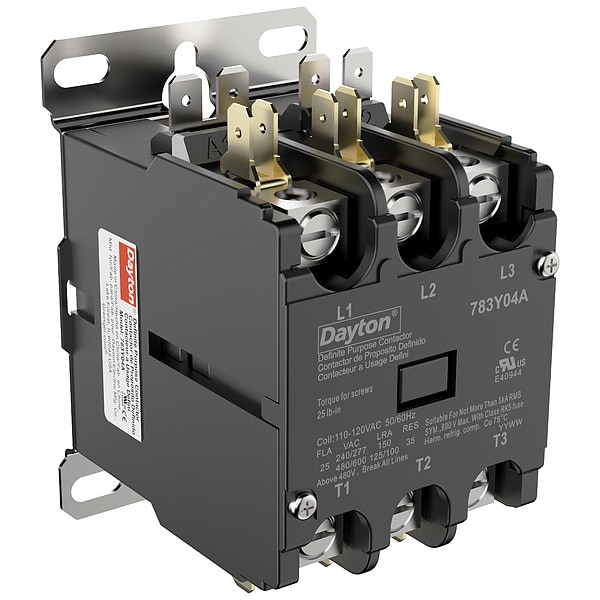

Contactor magnético de propósito definido, 120VAC, 3 polos, 25A.
| Item | Definite Purpose Magnetic Contactor |
|---|---|
| Number of Poles | 3 |
| Full Load Amps-Inductive | 25 A |
| Full Load Amps-Resistive | 35 A |
| Coil Volts | 120V AC |
| HP @ 1 Phase - 120V | 2 hp |
| HP @ 1 Phase - 240V | 3 hp |
| HP @ 3 Phase - 208V | 5 HP |
| HP @ 3 Phase - 240V | 5 hp |
| HP @ 3 Phase - 480V | 7 1/2 hp |
| HP @ 3 Phase - 575V | 7 1/2 hp |
| Height | 2.95 in |
| Width | 2.37 in |
| Depth | 3.74 in |
| Enclosure NEMA Rating | No Enclosure |
| Standards | CE, cRUus |
| Reversing | No |
| Hz | 50/60 |
| Phase | Three |
| Mechanical Operating Durability | 500,000 |
| Full Load Current - Inductive | 25 A |
| Frequency | 50/60 Hz |
| Auxiliary Contact Module Capacity | 2 |
| Contactor Style | HVACR Definite Purpose Contactor |
| NEMA Enclosure Material | Not Applicable |
| Mounting Hole Distance - Height | 3.27 in |
| Reversing Capability | Non-Reversing |
| Tungsten Lighting Current Rating | Not Applicable |
| NEMA Enclosure Rating | No Enclosure |
| Maximum Operating Temperature | 158 deg F |
| Number of Terminals | 8 |
| Includes | Not Applicable |
| LED Lighting Current Rating | Not Applicable |
| Fluorescent Lighting Current Rating | Not Applicable |
| Number of Normally Closed Main Contacts | 0 |
| Horsepower @ Three Phase - 240V AC | 10 HP |
| Horsepower @ Three Phase - 208V AC | 7.5 HP |
| Overall Depth | 3.74 in |
| Electrical Operating Durability | 200,000 |
| Frame Size | Not Applicable |
| Horsepower @ Single Phase - 240V AC | 5 HP |
| Contact Material | Silver Cadmium Oxide |
| Horsepower @ Three Phase - 600V AC | 20 HP |
| IP Rating | Not Applicable |
| Response Time | 20 msec |
| Terminal Connection Type | Box Lugs |
| Coil Voltage | 120V AC |
| Locked Rotor Load | 100 A @ 600V AC, 125 A @ 480V AC, 150 A @ 240/277V AC |
| Horsepower @ Three Phase - 480V AC | 15 HP |
| Includes Shunt | Not Applicable |
| Horsepower @ Single Phase - 120V AC | 2 HP |
| Mounting Postion | Vertical, Horizontal |
| Overall Width | 2.37 in |
| Number of Normally Open Main Contacts | 3 |
| Input Control Type | Not Applicable |
| Status Indicator | Mechanical Flag |
| Mounting Style | Through Panel |
| Resistance Properties | Not Applicable |
| Full Load Current - Resistive | 35 A |
| Minimum Operating Temperature | -40 deg F |
| Overall Height | 2.95 in |
| Mounting Hole Distance - Width | 1-3/4 in |
| Maximum Voltage Rating | 600 V AC |
| Mounting Hole Diameter | Not Applicable |
| Package Quantity | 1 |
