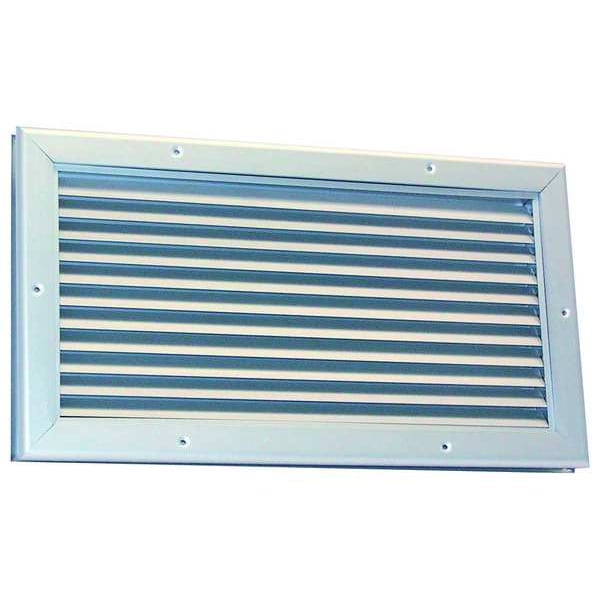

Door Louver, 22-1/4 H, 22-1/8 W, Aluminum
| Item | Door Louver |
|---|---|
| Louver Item | Door Louver |
| Louver Free Area | 1.58 sq ft |
| Material | Aluminum |
| Louver Overall Height | 22-1/8 in |
| Louver Overall Width | 22-1/4 in |
| Louver Cutout Height | 20-1/2 in |
| Louver Cutout Width | 20-1/2 in |
| Louver Door Thickness | 1-3/8 in to 2-1/4 in |
| Louver Material | Extruded Aluminum |
| Number of Blades | 30 |
| Finish | Clear Anodized |
| Blade Angle (Deg.) | 45 Degrees |
| Flange Width (In.) | 1 3/16 in |
| Includes | Fasteners |
| For Use With | New or Existing Doors |
| Type | Intake or Exhaust |
| Flange Width | 1 1/4 in |
| Outside Width | 22-1/4 in |
| Adjustable Blades | No |
| Maximum Door Thickness | 2 1/4 in |
| Rough Opening Width | 20-1/2 in |
| Outside Height | 22-1/8 in |
| Louver Opening Width | 20-1/2 in |
| Free Area | 1.6 sq ft |
| Rough Opening Height | 20-1/2 in |
| Minimum Door Thickness | 1 3/8 in |
| Louver Opening Height | 20-1/2 in |
| Intake or Exhaust Application | Exhaust, Intake |
| Blade Angle | 45 Degrees |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
