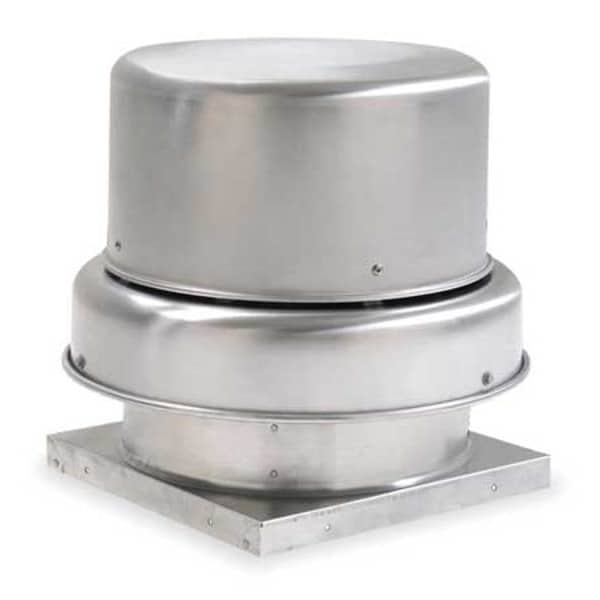

Downblast Vent, Belt Drive, 36 In
| Item - Roof Ventilators | Downblast Ventilator |
|---|---|
| Drive Package With Motor Included | Yes |
| Duty Rating - Roof Ventilators | Standard |
| Drive Type - Roof Ventilators | Belt Drive |
| Mounting Location - Roof Ventilators | Roof |
| Number of Speeds | 1 |
| Voltage - Roof Ventilators | 115V AC/208V AC/230V AC |
| Motor HP - Roof Ventilators | 0.5 HP |
| Base Size - Roof Ventilators | 46 in x 46 in |
| CFM @ 0.000-In. SP | 8,693 |
| Max. Inlet Temp. | 180 deg F |
| Item | Centrifugal Downblast Roof Exhaust Fan |
| Assembled/Unassembled | Unassembled |
| RPM | 325 |
| Drive Type | Belt Drive |
| Wheel Dia. | 36 in |
| Base Length | 46 in |
| CFM @ 0.375-In. SP | 5,001 |
| Phase | 1 |
| Recommended 12 In. Fixed Curb Item No. | 2RB82 or 4HX52 |
| Base Height | 1-3/4 in |
| Includes | Drive Package, NEMA 1 Junction Box |
| Housing Material | Aluminum |
| Sones @ 0.125-In. SP @ 5 Ft. | 8 |
| Hz | 60 |
| Overall Height | 40-1/4 in |
| Wheel Type | Backward Inclined |
| Motor HP | 0.5 |
| Dimension A | 46 in |
| Drive Package Included | Yes |
| Dimension C | 38-1/2 in |
| Shaft Dia. Wheel End | 1-1/4 in |
| Adj. 12 3/8"H Roof Curb Stock No. | 3C598 or 2ZV85 |
| Wheel Material | Aluminum |
| Dimension D | 8-7/8 in |
| CFM @ 0.125-In. SP | 7,830 |
| Max. BHP | 0.56 |
| Agency Compliance | AMCA Sound & Air, UL/cUL 705 |
| Base Width | 46 in |
| Adj. 6 3/8"H Roof Curb Stock No. | 3c597 |
| Dimension B | 58-3/4 in |
| Mounting Location | Roof |
| Sones @ 0.250-In. SP @ 5 Ft. | 6.8 |
| Motor Voltage | 115/208/230 |
| Max. Operating Amps | 8.6/3.7-3.8 |
| Overall Dia. | 58-3/4 in |
| Base Square Size - Roof Ventilators | 46" x 46" |
| Speed Controllable | No |
| Recommended 8 In. Fixed Curb Item No. | 4HX44 |
| CFM @ 0.250-In. SP | 6,756 |
| Standards | AMCA Sound and Air, UL/cUL 705 |
| Bearing Type | Regreasable Pillow Block |
| Mount Type | Roof Curb |
| Housing Width | 58.8 in |
| Spark Resistant Construction Type | A |
| High-Efficiency Motor | No |
| Safety Features | Birdscreen, Windband |
| Includes Drive Package | Yes |
| Housing Material Fabrication | Spun |
| Motor Speed | 1,725 rpm |
| Wheel Diameter | 36 in |
| Motor Location | Out of Airstream |
| Motor Enclosure | Open Dripproof |
| Exhaust Airflow @ 0.250 in SP | 6,756 cfm |
| Airflow @ 0.000 in SP | 8,693 cfm |
| Brake Horsepower | 14/25 hp |
| Exhaust Airflow @ 0.000 in SP | 8,693 cfm |
| Assembly | Unassembled |
| Motor Horsepower | 0.5 HP |
| Frequency | 60 Hz |
| Application | Industrial and Commercial Applications |
| Maximum Inlet Air Temperature | 180 deg F |
| Compatible Curb Manufacturer Part Number | 2RB82, 2ZV85, 3C597, 3C598, 4HX44, 4HX52 |
| Resistance Properties | Weather Resistant |
| Overall Length | 58-3/4 in |
| Features | Fresh Outside Air is Drawn in Under the Motor Cover to Maximize Motor Life, Fully Rolled Windband Bead for Increased Stability and Easy Transport, Nonoverloading Centrifugal Wheel Design |
| Housing Length | 58.8 in |
| Includes Motor | Yes |
| Nameplate Voltage | 115/208-230V AC |
| Damper Size | 39 in x 39 in |
| Exhaust Airflow @ 0.375 in SP | 5,001 cfm |
| Base Shape | Square |
| Propeller Shaft Diameter | 1-1/4 in |
| Current | 7.6/3.7 to 3.8 A |
| Base Diameter | Not Applicable |
| Maximum Static Pressure | 0.375 in wc |
| For Air Type | Clean Air |
| For High-Static Pressure Applications | No |
| Overall Diameter | 58-3/4 in |
| Sound Level | 5.6 sones @ 0.375 in SP and 5 ft, 6.8 sones @ 0.250 in SP and 5 ft, 8.0 sones @ 0.125 in SP and 5 ft, 8.7 sones @ 0.000 in SP and 5 ft |
| Maximum Fan Speed | 325 RPM |
| Overall Width | 58-3/4 in |
| Exhaust Airflow @ 0.125 in SP | 7,830 cfm |
| Electrical Connection | Power Cord |
| Country of Origin (subject to change) | Multiple |
| Package Quantity | 1 |
