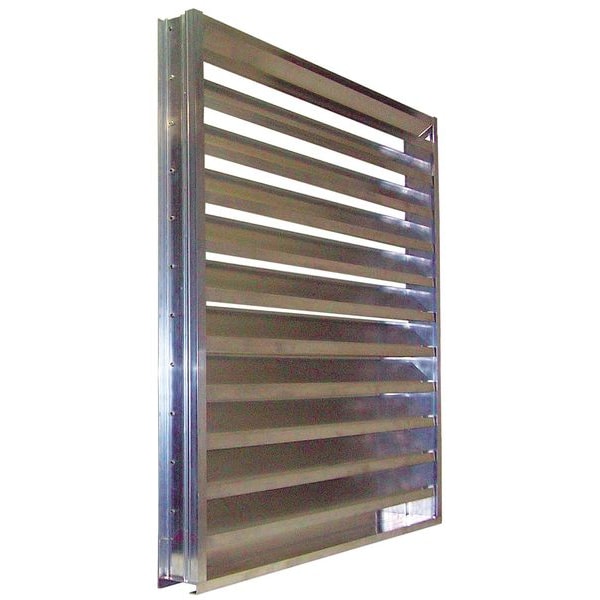

Drainable Louver, Fixed, 29-1/2 H, Alum
| Item | 30"H 30"W Drnbl Extrd Alu Intake Louver |
|---|---|
| Louver Item | Intake Louver |
| Louver Type | Stationary Blade |
| Louver Free Area | 2.93 sq ft |
| Min. Wall Opening (In.) | 30H x 30W |
| For Use With | Intake or Exhaust Applications |
| Louver Max. Intake | 2,115 cfm |
| Louver Max. Exhaust | 3,022 cfm |
| Louver Material | Aluminum |
| Intake Louver Inside Width | 27 in |
| Intake Louver Outside Height | 29-1/2 in |
| Flange Width (In.) | 1-1/4 |
| Blade Angle (Deg.) | 45 |
| Inside Height (In.) | 24 |
| Max. Velocity (FPM) | 3,500 fpm |
| Number of Blades | 6 |
| Outside Width (In.) | 29-1/2 |
| Includes | Bird Screen, Screen Fasteners |
| Louver Maximum Intake | 2,115 cfm |
| Intake or Exhaust Application | Exhaust, Intake |
| Free Area | 3.2 sq ft |
| Minimum Outside Width | 29-1/2 in |
| Outside Width | 29-1/2 in |
| Maximum Air Velocity | 3,500 fpm |
| Beginning Point of Water Penetration | 1,031 fpm |
| Maximum Outside Width | 29-1/2 in |
| Frame Depth | 4 in |
| Outside Height | 29-1/2 in |
| Mounting Style | Recess Mount |
| Frame Type | Hat Channel |
| Maximum Exhaust | 3,022 cfm |
| Blade Type | Drainable |
| Rough Opening Width | 30 in |
| Inside Height | 24 in |
| Inside Width | 27 in |
| Rough Opening Height | 30 in |
| Material | Aluminum |
| Finish | Mill |
| Blade Angle | 45 deg |
| Flange Width | Not Applicable |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
