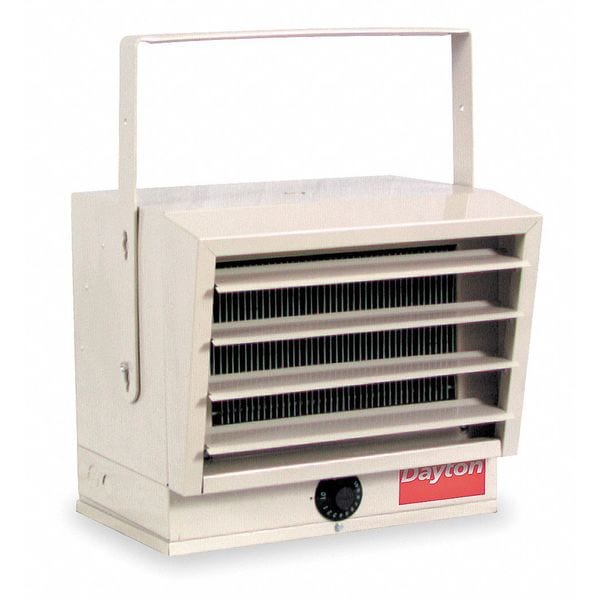

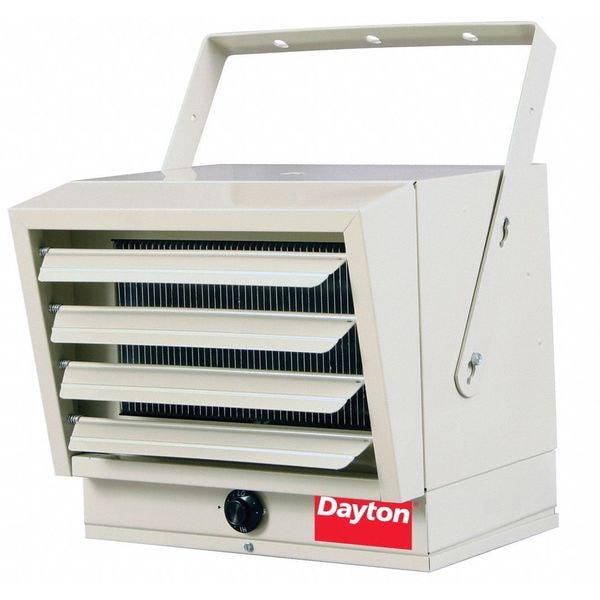

Electric Wall & Ceiling Unit Heater, 1 Phase, 240/208VAC, 12-1/2 in H x 14 in W x 11-1/4 in D
| Electric Heater Item | Electric Utility Heater |
|---|---|
| Item | Electric Wall & Ceiling Unit Heater |
| kW | 5.0/2.5, 3.7/1.8 |
| BtuH | 17,065/14,215, 12,800/6396 |
| Heater Voltage | 208/240VAC |
| Phase | 1 |
| Amps AC | 20.9/10.4, 18/9 |
| Electric Heater Phase | 1 |
| Includes | Bronze/Brown Adjustable Louvers, Mounting Bracket, Thermostat |
| Temp. Rise | 60 deg F |
| Housing Material | Steel |
| Width | 14 in |
| Height | 12-1/2 in |
| Features | Thermostat, Automatic Fan Time Delay |
| Heater Housing Finish | Baked Enamel |
| Hz | 60 |
| Depth | 11-1/4 in |
| Standards | UL Listed, CUL |
| Air Flow | 270 cfm |
| Manufacturers Warranty Length | 1 yr, 5 yr |
| Overall Height | 12-1/2 in |
| Overall Width | 14 in |
| Voltage | 208/240V AC |
| Heating Method | Fan Forced |

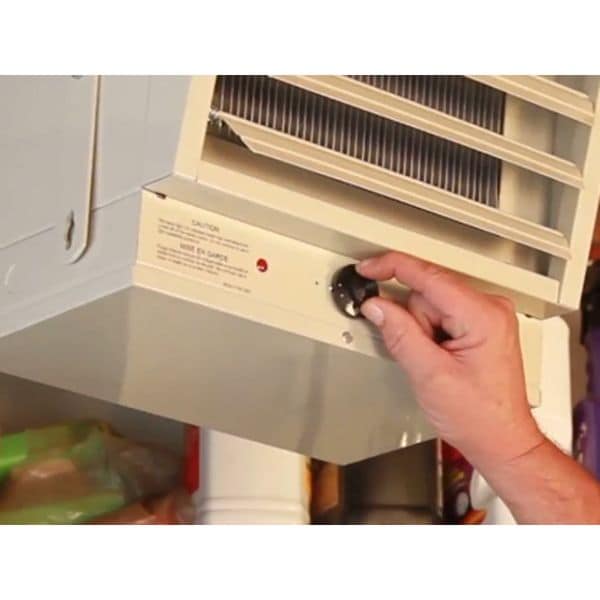

| Control Type | Mechanical Selector Dial |
| Contactor Coil Voltage | 240V AC |
| Frequency | 60 Hz |
| Horizontal Air Throw | 12 ft |
| Overall Depth | 11-1/4 in |
| Housing Color | Beige |
| Vertical Floor Coverage | 16 ft |
| Vertical Mounting H | 11 ft |
| Requires | Not Applicable |
| Heating Capacity | 14,215/17,065 BtuH, 6396/12,800 |
| Amperage | 10.4A/20.9A, 9A/18A |
| Air Temp. Rise | 60 deg F |
| Housing Finish | Baked Enamel |
| Wattage Output | 1.8kW/3.7kW, 2.5kW/5kW |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
