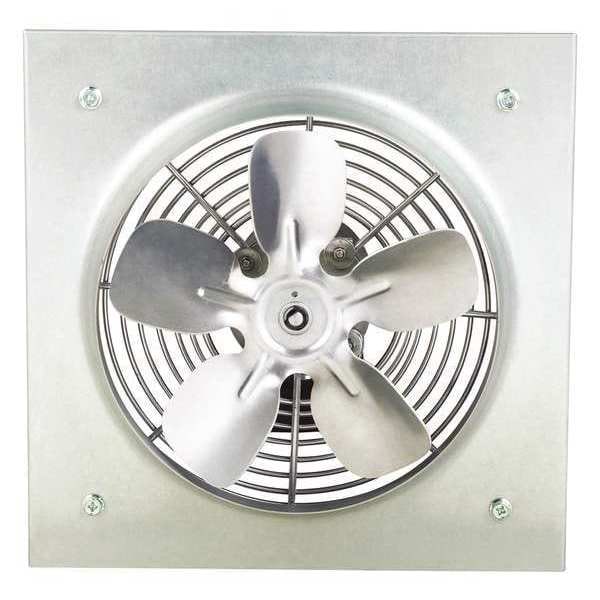

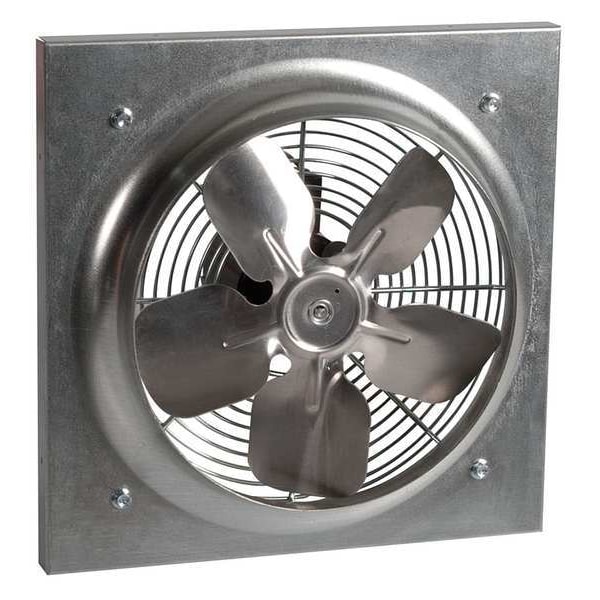

Exhaust Fan, 10", 752 cfm, 115V, 1 Phase
| Exhaust/Supply Fan Item | Exhaust Fan |
|---|---|
| Blade Dia. | 10 in |
| Number of Speeds | 1 |
| Fan Voltage | 115 V |
| CFM @ 0.000-In. SP | 752 cfm |
| Exhaust/Supply Fan Motor HP | 1/30 hp |
| Item | Exhaust Fan |
| Dimension B (In.) | 5 in |
| Max. Ambient Temp. (F) | 104 Degrees F |
| Wire Guard Finish | Zinc Plated |
| Dimension D (In.) | 10-1/4 |
| Sones @ 0.000-In. SP @ 5 Ft. | 9.4 |
| Watts | 60 |
| CFM @ 0.250-In. SP | 431 cfm |
| Type | Medium Duty Direct Drive |
| Dimension C (In.) | 2-5/8 |
| Width (In.) | 14 |
| Drive Package Included | No |
| Mounting Position | Vertical |
| Number of Blades | 5 |
| Motor Enclosure | Totally Enclosed Air Over |
| Flange Width (In.) | 1 |
| Motor RPM | 1,650 RPM |
| Hz | 60 |
| Sones @ 0.125-In. SP @ 5 Ft. | 8.1 |
| Bearing Type | Ball |
| Full Load Amps | 0.6 |
| Frame Material | Steel |
| Propeller Material | Aluminum |
| Aluminum Wall Shutter No. | 4C555 |
| Agency Compliance | AMCA, Listed, UL and cUL |
| Inside Dia. (In.) | 10-1/4 |
| Venturi Depth (In.) | 2 |
| Outside Dia. (In.) | 14 |
| Height (In.) | 14 |
| CFM @ 0.125-In. SP | 641 cfm |
| Max. Depth (In.) | 7-5/8 |
| Phase | 1 |
| Speed Control | 48C172 |
| Dimension A (In.) | 14 |
| For Use With | General Ventilation Applications |
| Guard Material | Steel |
| Voltage | 115 V |
| CFM @ 0.375-In. SP | 297 cfm |
| Motor Insulation | Class B |
| Venturi Clearance Dia. (In.) | 10-3/8 |
| Fiberglass Wall Shutter No. | 5C210 |
| Galvanized Wall Shutter No. | 2C526 |
| Frame Finish | Galvanized |
| Blade Material | Aluminum |
| Standards | AMCA, UL and cUL Listed |
| Overall Height | 14 in |
| Overall Width | 14 in |
| Duct Diameter | 10-1/4 in |
| Includes Dehumidistat | No |
| Exhaust Airflow @ 0.375 in SP | 297 cfm |
| Ventilation Type | Exhaust |
| Venturi Diameter | 10-1/2 in |
| Speed Controllable | Yes |
| Fan Style | Panel |
| Duct Shape | Round |
| Noise Level @ 0.125 in SP @ 5 ft | 8 sones |
| Exhaust Airflow @ 0.100 in SP | 641 cfm |
| Vent Design | Ductless |
| Blade Diameter | 10 in |
| Guard Type | Intake |
| Overall Depth | 7-5/8 in |
| Maximum Ambient Operating Temperature | 104 deg F |
| Exhaust Airflow @ 0.125 in SP | 641 cfm |
| Electrical Connection | Hardwired |
| Flange Width | 1 in |
| Exhaust Airflow @ 0.250 in SP | 431 cfm |
| Exhaust Airflow @ 0.000 in SP | 752 cfm |
| Wattage | 66 W |
| Guard Finish | Zinc Plated |
| Maximum Noise Level | 9.4 sones |
| Noise Level @ 0.000 in SP @ 5 ft | 9.4 sones |
| Drive Type | Direct Drive |
| Nameplate Voltage | 115V AC |
| Motor Speed | 1,650 rpm |
| For Cut-Out Diameter | 10-1/4 in |
| Assembled | Assembled |
| Overall Diameter | 14 in |
| Method of Construction | Stamped |
| Venturi Depth | 2 in |
| Motor Horsepower | 1/30 hp |
| Includes Motor | Yes |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
