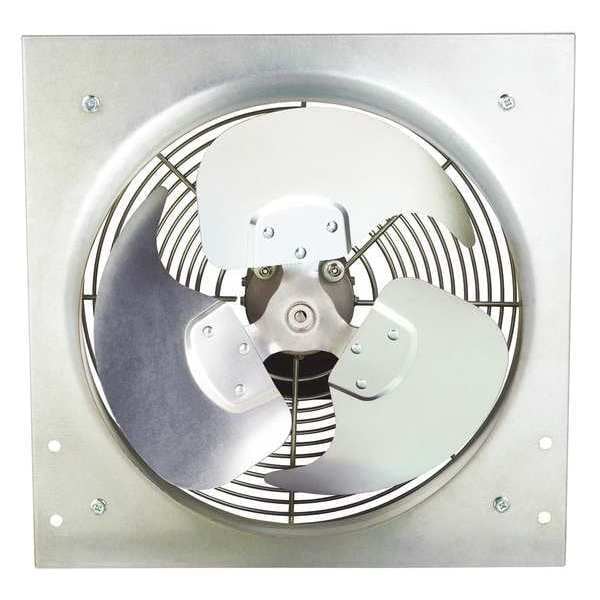

Exhaust Fan, 12 In, 889 CFM
| Item | Exhaust Fan |
|---|---|
| Propeller Material | Aluminum |
| Phase | 1 |
| Motor Enclosure | Totally Enclosed Air Over |
| Fiberglass Wall Shutter No. | 5C211 |
| Watts | 60 |
| Full Load Amps | 0.6 |
| Venturi Depth (In.) | 2-1/2 |
| Hz | 60 |
| Frame Material | Steel |

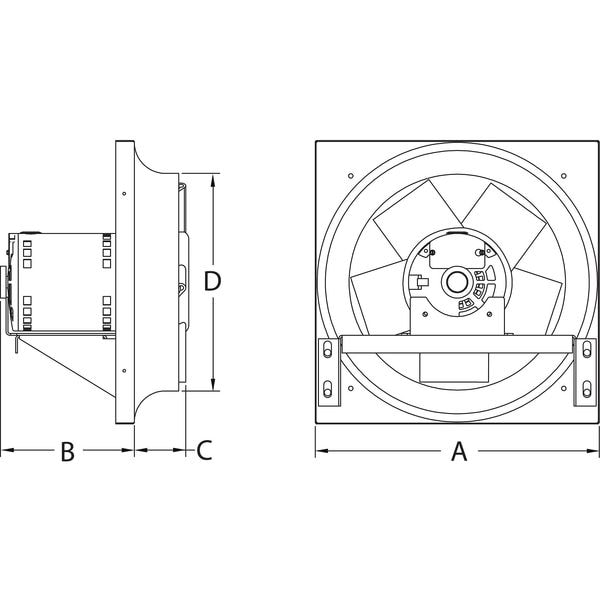

| Dimension B (In.) | 5-1/2 |
| Speed Control | 48C172 |
| Dimension D (In.) | 12-1/4 |
| Guard Material | Steel |
| Flange Width (In.) | 1 |
| Venturi Clearance Dia. (In.) | 12-3/8 |
| Number of Blades | 3 |
| CFM @ 0.250-In. SP | 541 cfm |
| Outside Dia. (In.) | 16 |
| Mounting Position | Vertical |
| Fan Voltage | 115V AC |
| Height (In.) | 16 |
| Aluminum Wall Shutter No. | 4C556 |
| Width (In.) | 16 |
| Agency Compliance | UL and cUL Listed, AMCA |
| Motor RPM | 1,650 RPM |
| Galvanized Wall Shutter No. | 1C742 |
| Wire Guard Finish | Zinc Plated |
| Sones @ 0.125-In. SP @ 5 Ft. | 6.2 |
| Inside Dia. (In.) | 12-1/4 |
| Motor Insulation | Class B |
| CFM @ 0.125-In. SP | 753 cfm |
| For Use With | General Ventilation Applications |
| CFM @ 0.000-In. SP | 912 cfm |
| Dimension C (In.) | 2-7/8 |
| Type | Medium Duty Direct Drive |
| Max. Depth (In.) | 8-3/8 |
| Sones @ 0.000-In. SP @ 5 Ft. | 6 |
| Voltage | 115 |
| Dimension A (In.) | 16 |
| Max. Ambient Temp. (F) | 104 |
| Blade Dia. | 12 in |
| Bearing Type | Sleeve |
| Exhaust/Supply Fan Motor HP | 1/30 hp |
| Drive Package Included | No |
| Frame Finish | Galvanized |
| Exhaust/Supply Fan Item | Exhaust Fan |
| Standards | AMCA, UL and cUL Listed |
| Overall Height | 16 in |
| Overall Width | 16 in |
| Venturi Depth | 2-1/2 in |
| Flange Width | 1 in |
| Maximum Ambient Operating Temperature | 104 Degrees F |
| Guard Finish | Zinc Plated |
| Includes Motor | Yes |
| Overall Diameter | 16 in |
| Exhaust Airflow @ 0.250 in SP | 541 cfm |
| Exhaust Airflow @ 0.000 in SP | 912 cfm |
| Speed Controllable | Yes |
| Exhaust Airflow @ 0.125 in SP | 753 cfm |
| Venturi Diameter | 12-1/2 in |
| Number of Speeds | 1 |
| Assembled | Assembled |
| Wattage | 58 W |
| Duct Diameter | 12-1/4 in |
| Blade Diameter | 12 in |
| Includes Dehumidistat | No |
| Blade Material | Aluminum |
| Vent Design | Ductless |
| Motor Speed | 1,650 rpm |
| Maximum Noise Level | 6.4 sones |
| Fan Style | Panel |
| Motor Horsepower | 1/30 hp |
| Method of Construction | Stamped |
| Noise Level @ 0.000 in SP @ 5 ft | 6.4 sones |
| Nameplate Voltage | 115 V AC |
| Noise Level @ 0.125 in SP @ 5 ft | 6 sones |
| Guard Type | Intake |
| Duct Shape | Round |
| Electrical Connection | Hardwired |
| Exhaust Airflow @ 0.100 in SP | 753 cfm |
| Ventilation Type | Exhaust |
| For Cut-Out Diameter | 12-1/4 in |
| Drive Type | Direct Drive |
| Overall Depth | 8-3/8 in |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
