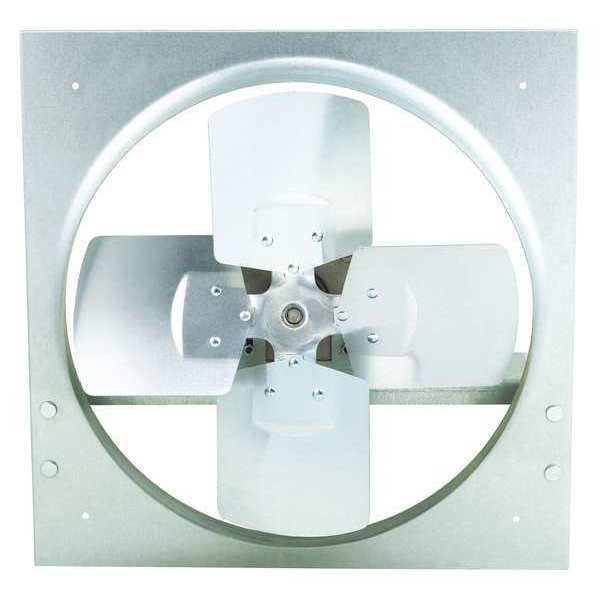

Exhaust Fan, 16 In, 115/230V
| Exhaust/Supply Fan Item | Exhaust Fan |
|---|---|
| Type | Commercial Direct Drive |
| Blade Dia. | 16 in |
| Fan Voltage | 115/230V AC |
| Phase | 1 |
| Exhaust/Supply Fan Motor HP | 0.25 HP |
| CFM @ 0.000-In. SP | 2,548 cfm |
| Number of Blades | 4 |
| Motor RPM | 1,620 rpm |
| Full Load Amps | 2.8/1.5 |
| Propeller Material | Aluminum |
| Aluminum Wall Shutter No. | 4C557 |
| Item | Exhaust Fan |
| Flange Width (In.) | 1 in |
| Hz | 60 |
| Frame Finish | Galvanized |
| Mounting Position | Vertical or Horizontal |
| CFM @ 0.125-In. SP | 2,329 cfm |
| Watts | 186 |
| Fiberglass Wall Shutter No. | 5C212 |
| Dimension D (In.) | 16-3/8 |
| Sones @ 0.125-In. SP @ 5 Ft. | 23 |
| Max. Depth (In.) | 10-1/8 |
| Sones @ 0.000-In. SP @ 5 Ft. | 18.4 |
| Width (In.) | 20 |
| Drive Package Included | No |
| Dimension C (In.) | 3-1/8 |
| Speed Control | No |
| Frame Material | Steel |
| Agency Compliance | UL and cUL Listed, AMCA |
| Bearing Type | Ball |
| For Use With | General Ventilation Applications |
| CFM @ 0.250-In. SP | 2,048 cfm |
| Galvanized Wall Shutter No. | 1C743 |
| Height (In.) | 20 |
| Motor Insulation | Class B |
| Motor Enclosure | Totally Enclosed Air Over |
| Dimension B (In.) | 7 |
| Dimension A (In.) | 20 |
| Intake Guard No. | 1WBT9 |
| Venturi Depth (In.) | 2-3/4 |
| Max. Ambient Temp. (F) | 104 |
| CFM @ 0.375-In. SP | 1,800 cfm |
| Blade Material | Aluminum |
| Standards | AMCA, UL and cUL Listed |
| Voltage | 115/230 |
| Overall Height | 20 in |
| Overall Width | 20 in |
| Drive Type | Direct Drive |
| Mounting Orientation | Horizontal, Vertical |
| Nameplate Voltage | 115/230V AC |
| Noise Level @ 0.125 in SP @ 5 ft | 23 sones |
| Blade Diameter | 16 in |
| Overall Depth | 10-1/8 in |
| Exhaust Airflow @ 0.100 in SP | 2,319 cfm |
| Maximum Noise Level | 18.4 sones |
| Assembled | Assembled |
| Wattage | 210 W, 220 W |
| Noise Level @ 0.000 in SP @ 5 ft | 18.4 sones |
| Electrical Connection | Hardwired |
| Duct Diameter | 16-1/2 in |
| Motor Horsepower | 0.25 HP |
| Exhaust Airflow @ 0.250 in SP | 2,048 cfm |
| Venturi Depth | 3 in |
| Guard Type | None |
| Ventilation Type | Exhaust |
| Duct Shape | Round |
| Exhaust Airflow @ 0.375 in SP | 1,800 cfm |
| Method of Construction | Stamped |
| Maximum Ambient Operating Temperature | 104 deg F |
| Fan Style | Panel |
| Includes Motor | Yes |
| Exhaust Airflow @ 0.000 in SP | 2,548 cfm |
| Flange Width | 1 in |
| Includes Dehumidistat | No |
| Vent Design | Ductless |
| Speed Controllable | No |
| Exhaust Airflow @ 0.125 in SP | 2,329 cfm |
| Number of Speeds | 1 |
| Motor Speed | 1,620 rpm |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
