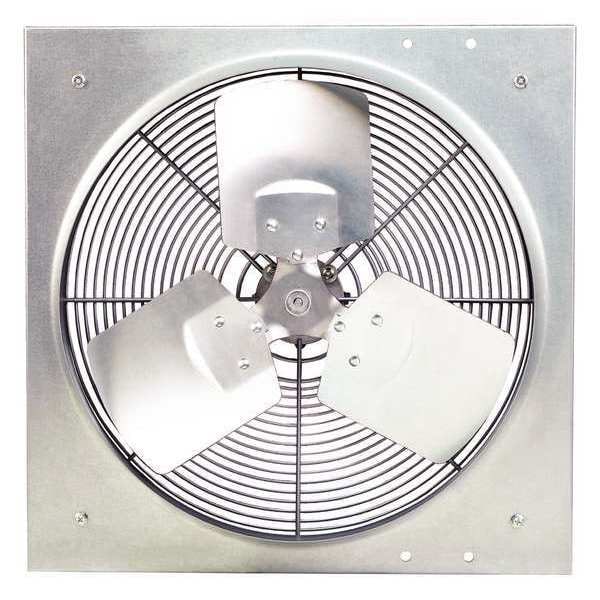

Exhaust Fan, 16 In, 1201 CFM
| Item | Exhaust Fan |
|---|---|
| Bearing Type | Sleeve |
| Agency Compliance | UL and cUL Listed, AMCA |
| Fiberglass Wall Shutter No. | 5C212 |
| Galvanized Wall Shutter No. | 1C743 |
| Frame Finish | Galvanized |
| For Use With | General Ventilation Applications |
| Outside Dia. (In.) | 20 |
| Fan Voltage | 115V AC |
| Max. Depth (In.) | 7-3/4 |
| Sones @ 0.000-In. SP @ 5 Ft. | 10.2 |
| Height (In.) | 20 |
| Blade Dia. | 16 in |
| Drive Package Included | No |
| Aluminum Wall Shutter No. | 4C557 |
| CFM @ 0.125-In. SP | 1,045 cfm |
| Voltage | 115 |
| Max. Ambient Temp. (F) | 104 |
| CFM @ 0.250-In. SP | 704 cfm |
| Full Load Amps | 1 |

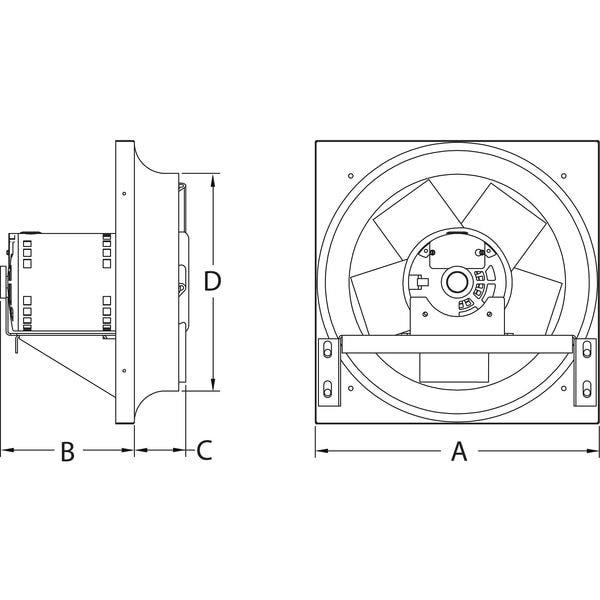

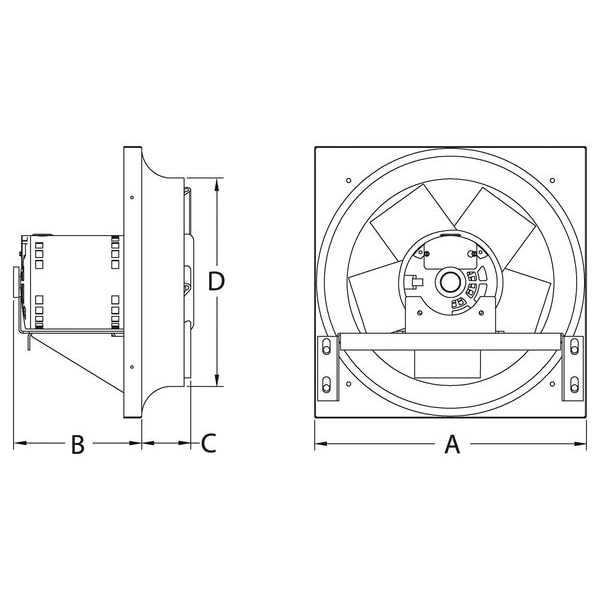

| Dimension B (In.) | 5 |
| Sones @ 0.125-In. SP @ 5 Ft. | 13.6 |
| Dimension C (In.) | 2-1/8 |
| Number of Blades | 3 |
| Hz | 60 |
| Wire Guard Finish | Zinc Plated |
| Exhaust/Supply Fan Item | Exhaust Fan |
| Frame Material | Steel |
| CFM @ 0.000-In. SP | 1,334 cfm |
| Flange Width (In.) | 1 |
| CFM @ 0.375-In. SP | 490 cfm |
| Exhaust/Supply Fan Motor HP | 1/20 hp |
| Guard Material | Steel |
| Motor RPM | 1,650 RPM |
| Inside Dia. (In.) | 16-3/8 |
| Type | Medium Duty Direct Drive |
| Dimension A (In.) | 20 |
| Motor Insulation | Class B |
| Speed Control | 48C172 |
| Venturi Clearance Dia. (In.) | 16-7/16 |
| Motor Enclosure | Totally Enclosed Air Over |
| Phase | 1 |
| Venturi Depth (In.) | 2-3/4 |
| Mounting Position | Vertical |
| Watts | 80 |
| Dimension D (In.) | 16-3/8 |
| Propeller Material | Aluminum |
| Width (In.) | 20 |
| Overall Height | 20 in |
| Overall Width | 20 in |
| Standards | AMCA, UL and cUL Listed |
| Venturi Depth | 3 in |
| Flange Width | 1 in |
| Duct Shape | Round |
| Ventilation Type | Exhaust |
| Blade Diameter | 16 in |
| Wattage | 82 W |
| Overall Diameter | 20 in |
| Guard Type | Intake |
| Assembled | Assembled |
| Includes Dehumidistat | No |
| Duct Diameter | 16-1/2 in |
| Nameplate Voltage | 115 V AC |
| Speed Controllable | Yes |
| Noise Level @ 0.000 in SP @ 5 ft | 10.2 sones |
| Number of Speeds | 1 |
| For Cut-Out Diameter | 16-1/2 in |
| Motor Horsepower | 1/20 hp |
| Maximum Ambient Operating Temperature | 104 Degrees F |
| Blade Material | Aluminum |
| Exhaust Airflow @ 0.000 in SP | 1,334 cfm |
| Electrical Connection | Hardwired |
| Venturi Diameter | 16-1/2 in |
| Noise Level @ 0.125 in SP @ 5 ft | 14 sones |
| Exhaust Airflow @ 0.250 in SP | 704 cfm |
| Exhaust Airflow @ 0.100 in SP | 1,045 cfm |
| Vent Design | Ductless |
| Fan Style | Panel |
| Exhaust Airflow @ 0.375 in SP | 490 cfm |
| Motor Speed | 1,650 rpm |
| Drive Type | Direct Drive |
| Guard Finish | Zinc Plated |
| Includes Motor | Yes |
| Maximum Noise Level | 10.2 sones |
| Exhaust Airflow @ 0.125 in SP | 1,045 cfm |
| Overall Depth | 7-3/4 in |
| Method of Construction | Stamped |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
