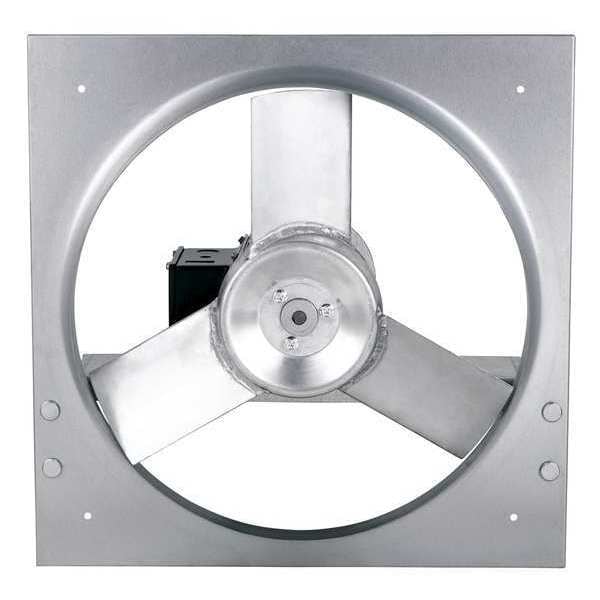

Exhaust Fan, 16 In, 208-230/460V
| Exhaust/Supply Fan Item | Exhaust Fan |
|---|---|
| Type | Industrial Direct Drive |
| Blade Dia. | 16 in |
| Phase | 3 |
| Fan Voltage | 208-230/460V AC |
| Exhaust/Supply Fan Motor HP | 0.25 HP |
| CFM @ 0.000-In. SP | 2,926 cfm |
| Number of Blades | 3 |
| Motor RPM | 1,747 rpm |
| Propeller Material | Aluminum |
| Full Load Amps | 1.5-1.6/0.9 |
| Dimension A (In.) | 20 |
| Venturi Depth (In.) | 2-3/4 |
| Max. Depth (In.) | 9-5/8 |
| Speed Control | No |
| Agency Compliance | UL and cUL Listed, AMCA |
| Aluminum Wall Shutter No. | 4C557 |
| Mounting Position | Vertical or Horizontal |
| CFM @ 0.375-In. SP | 2,184 cfm |
| Bearing Type | Ball |
| Hz | 60 |
| Dimension D (In.) | 16-3/8 |
| CFM @ 0.125-In. SP | 2,693 cfm |
| Item | Exhaust Fan |
| Sones @ 0.125-In. SP @ 5 Ft. | 14.4 |
| Motor Enclosure | Totally Enclosed Air Over |
| Height (In.) | 20 |
| Frame Finish | Galvanized |
| Intake Guard No. | 1WBT9 |
| Max. Ambient Temp. (F) | 104 |
| Dimension B (In.) | 7 |
| Motor Insulation | Class B |
| Flange Width (In.) | 1 in |
| For Use With | General Ventilation Applications |
| CFM @ 0.250-In. SP | 2,417 cfm |
| Width (In.) | 20 |
| Fiberglass Wall Shutter No. | 5C212 |
| Galvanized Wall Shutter No. | 1C743 |
| CFM @ 0.500-In. SP | 1,739 cfm |
| Watts | 186 |
| Dimension C (In.) | 2-5/8 |
| Drive Package Included | No |
| Frame Material | Steel |
| Sones @ 0.000-In. SP @ 5 Ft. | 17.9 |
| Standards | AMCA, UL and cUL Listed |
| Blade Material | Aluminum |
| Overall Height | 20 in |
| Overall Width | 20 in |
| Voltage | 208-230/460 |
| Maximum Ambient Operating Temperature | 104 deg F |
| Motor Speed | 1,747 rpm |
| Nameplate Voltage | 208-230/460V AC |
| Blade Diameter | 16 in |
| Includes Motor | Yes |
| Exhaust Airflow @ 0.250 in SP | 2,417 cfm |
| Noise Level @ 0.125 in SP @ 5 ft | 14 sones |
| Maximum Noise Level | 17.9 sones |
| Exhaust Airflow @ 0.000 in SP | 2,926 cfm |
| Venturi Depth | 3 in |
| Fan Style | Panel |
| Flange Width | 1 in |
| Noise Level @ 0.000 in SP @ 5 ft | 17.9 sones |
| Ventilation Type | Exhaust |
| Motor Horsepower | 0.25 HP |
| Exhaust Airflow @ 0.500 in SP | 1,739 cfm |
| Overall Depth | 9-5/8 in |
| Exhaust Airflow @ 0.375 in SP | 2,184 cfm |
| Exhaust Airflow @ 0.125 in SP | 2,693 cfm |
| Guard Type | None |
| Mounting Orientation | Horizontal, Vertical |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
