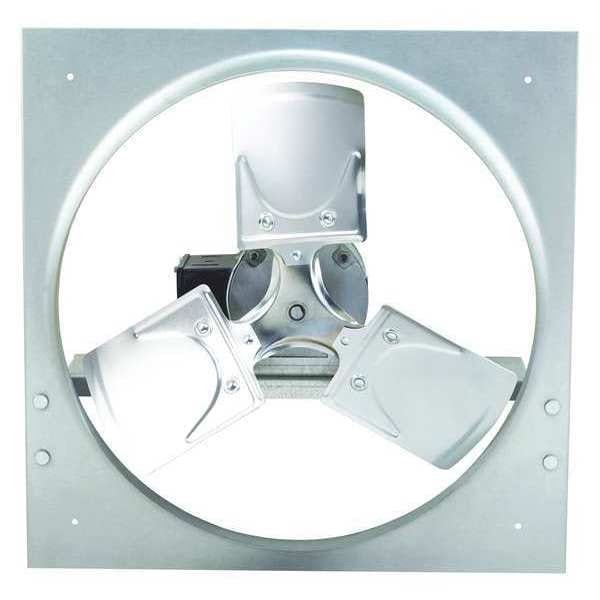

Exhaust Fan, 18 In, 208-230/460V
| Exhaust/Supply Fan Item | Exhaust Fan |
|---|---|
| Type | Commercial Direct Drive |
| Blade Dia. | 18 in |
| Phase | 3 |
| Fan Voltage | 208-230/460V AC |
| Exhaust/Supply Fan Motor HP | 0.3333 HP |
| Number of Blades | 3 |
| CFM @ 0.000-In. SP | 3,477 cfm |
| Motor RPM | 1,700 rpm |
| Propeller Material | Aluminum |
| Full Load Amps | 1.5-1.6/0.8 |
| Fiberglass Wall Shutter No. | 5C213 |
| Frame Material | Steel |
| Intake Guard No. | 1WBU1 |
| For Use With | General Ventilation Applications |
| Dimension C (In.) | 3-3/8 |
| Aluminum Wall Shutter No. | 4C558 |
| Bearing Type | Ball |
| CFM @ 0.125-In. SP | 3,244 cfm |
| Item | Exhaust Fan |
| Drive Package Included | No |
| Sones @ 0.125-In. SP @ 5 Ft. | 22 |
| CFM @ 0.250-In. SP | 2,968 cfm |
| Mounting Position | Vertical or Horizontal |
| Galvanized Wall Shutter No. | 1C744 |
| Height (In.) | 22 |
| Venturi Depth (In.) | 2-5/8 |
| Dimension B (In.) | 7 |
| Hz | 60 |
| Max. Ambient Temp. (F) | 104 |
| Motor Enclosure | Totally Enclosed Air Over |
| Frame Finish | Galvanized |
| Width (In.) | 22 |
| Dimension A (In.) | 22 |
| Flange Width (In.) | 1 in |
| Dimension D (In.) | 18-1/2 |
| Agency Compliance | UL and cUL Listed, AMCA |
| Max. Depth (In.) | 10-3/8 |
| Motor Insulation | Class B |
| Speed Control | No |
| Watts | 248 |
| Sones @ 0.000-In. SP @ 5 Ft. | 18.7 |
| CFM @ 0.375-In. SP | 2,608 cfm |
| Blade Material | Aluminum |
| Standards | AMCA, UL and cUL Listed |
| Overall Height | 22 in |
| Overall Width | 22 in |
| Voltage | 208-230/460 |
| Maximum Noise Level | 18.7 sones |
| Blade Diameter | 18 in |
| Noise Level @ 0.125 in SP @ 5 ft | 22 sones |
| Nameplate Voltage | 208-230/460V AC |
| Noise Level @ 0.000 in SP @ 5 ft | 18.7 sones |
| Includes Motor | Yes |
| Motor Horsepower | 0.3333 HP |
| Guard Type | None |
| Venturi Depth | 2-1/2 in |
| Exhaust Airflow @ 0.125 in SP | 3,244 cfm |
| Fan Style | Panel |
| Ventilation Type | Exhaust |
| Exhaust Airflow @ 0.375 in SP | 2,608 cfm |
| Flange Width | 1 in |
| Maximum Ambient Operating Temperature | 104 deg F |
| Overall Depth | 10-3/8 in |
| Mounting Orientation | Horizontal, Vertical |
| Exhaust Airflow @ 0.000 in SP | 3,477 cfm |
| Motor Speed | 1,700 rpm |
| Exhaust Airflow @ 0.250 in SP | 2,968 cfm |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
