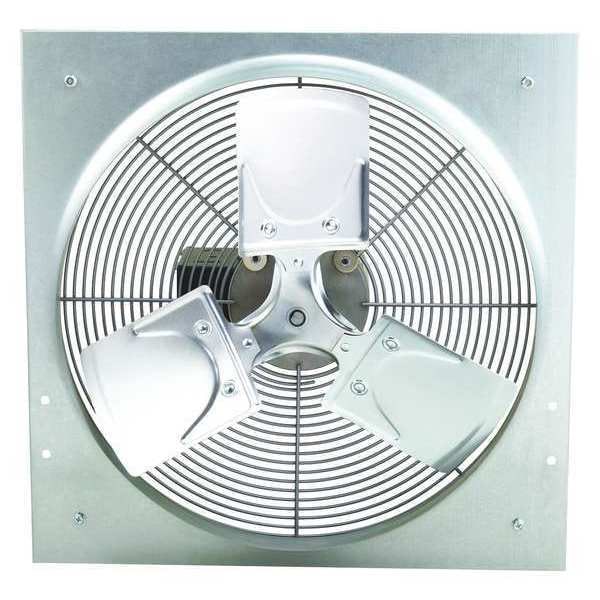

Exhaust Fan, 18 In, 2627 CFM
| Item | Exhaust Fan |
|---|---|
| Propeller Material | Aluminum |
| Agency Compliance | UL and cUL Listed, AMCA |
| Motor Enclosure | Totally Enclosed Air Over |
| For Use With | General Ventilation Applications |
| Guard Material | Steel |
| Inside Dia. (In.) | 18-7/16 |
| Width (In.) | 22 |
| CFM @ 0.250-In. SP | 1,837 cfm |
| Phase | 1 |
| Aluminum Wall Shutter No. | 4C558 |
| Fan Voltage | 115V AC |
| Blade Dia. | 18 in |
| Fiberglass Wall Shutter No. | 5C213 |
| Type | Medium Duty Direct Drive |

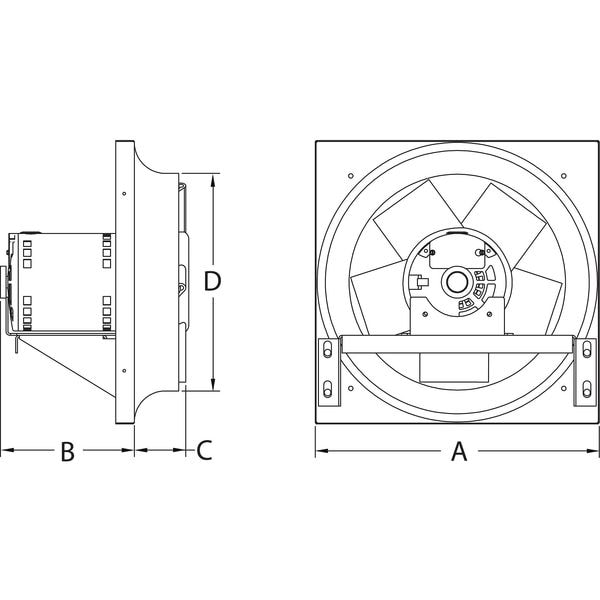

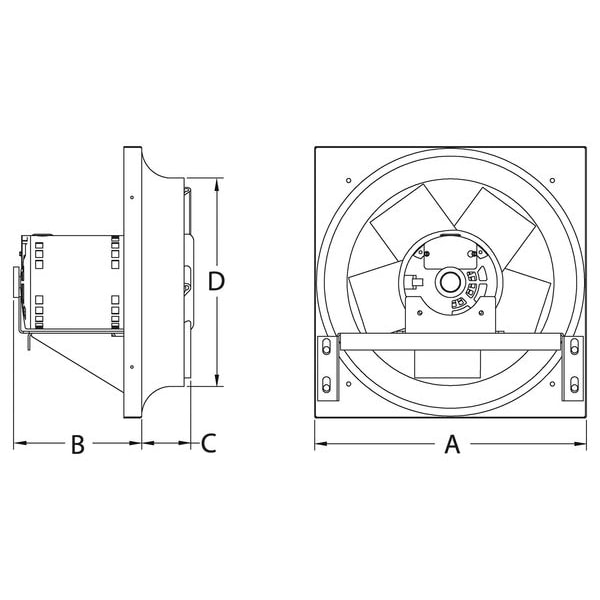

| Dimension B (In.) | 7 |
| Sones @ 0.000-In. SP @ 5 Ft. | 15.5 |
| Exhaust/Supply Fan Item | Exhaust Fan |
| Motor Insulation | Class B |
| Max. Depth (In.) | 10-3/4 |
| CFM @ 0.125-In. SP | 2,316 cfm |
| CFM @ 0.375-In. SP | 1,029 cfm |
| Full Load Amps | 2.8 |
| Frame Finish | Galvanized |
| Watts | 186 |
| CFM @ 0.000-In. SP | 2,652 cfm |
| Number of Blades | 3 |
| Height (In.) | 22 |
| Motor RPM | 1,155 RPM |
| Flange Width (In.) | 1 |
| Drive Package Included | No |
| Max. Ambient Temp. (F) | 104 |
| Sones @ 0.125-In. SP @ 5 Ft. | 11 |
| Voltage | 115 |
| Bearing Type | Ball |
| Frame Material | Steel |
| Exhaust/Supply Fan Motor HP | 1/4 hp |
| Mounting Position | Vertical |
| Dimension C (In.) | 3-3/4 |
| Hz | 60 |
| Venturi Depth (In.) | 2-5/8 |
| Dimension A (In.) | 22 |
| Outside Dia. (In.) | 22 |
| Dimension D (In.) | 18-1/2 |
| Speed Control | 48C172 |
| Wire Guard Finish | Zinc Plated |
| Venturi Clearance Dia. (In.) | 18-7/16 |
| Galvanized Wall Shutter No. | 1C744 |
| Overall Width | 22 in |
| Overall Height | 22 in |
| Standards | AMCA, UL and cUL Listed |
| Venturi Depth | 2-1/2 in |
| Flange Width | 1 in |
| Includes Motor | Yes |
| Exhaust Airflow @ 0.000 in SP | 2,652 cfm |
| Includes Dehumidistat | No |
| Guard Finish | Zinc Plated |
| Fan Style | Panel |
| Assembled | Assembled |
| Electrical Connection | Hardwired |
| Motor Speed | 1,150 rpm |
| Duct Diameter | 18-1/2 in |
| Motor Horsepower | 0.25 HP |
| Blade Diameter | 18 in |
| Blade Material | Aluminum |
| Exhaust Airflow @ 0.375 in SP | 1,029 cfm |
| Number of Speeds | 1 |
| Noise Level @ 0.000 in SP @ 5 ft | 15.5 sones |
| Wattage | 235 W |
| Drive Type | Direct Drive |
| Nameplate Voltage | 115 V AC |
| Venturi Diameter | 18-1/2 in |
| Noise Level @ 0.125 in SP @ 5 ft | 11 sones |
| Vent Design | Ductless |
| Method of Construction | Stamped |
| Maximum Ambient Operating Temperature | 104 Degrees F |
| Exhaust Airflow @ 0.100 in SP | 2,316 cfm |
| Overall Depth | 10-3/4 in |
| Exhaust Airflow @ 0.125 in SP | 2,316 cfm |
| Guard Type | Intake |
| Duct Shape | Round |
| Ventilation Type | Exhaust |
| Maximum Noise Level | 15.5 sones |
| Overall Diameter | 22 in |
| Exhaust Airflow @ 0.250 in SP | 1,837 cfm |
| Speed Controllable | Yes |
| For Cut-Out Diameter | 18-1/2 in |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
