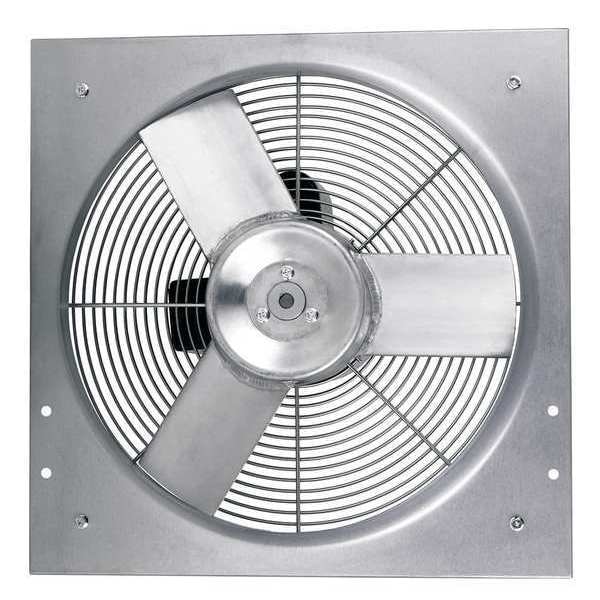

Exhaust Fan, 18 In, 2989 CFM
| Item | Exhaust Fan |
|---|---|
| Full Load Amps | 2.8/1.5 |
| CFM @ 0.000-In. SP | 3,201 cfm |
| Watts | 186 |
| Outside Dia. (In.) | 22 |
| Flange Width (In.) | 1 |
| Fan Voltage | 115/230V AC |
| Galvanized Wall Shutter No. | 1C744 |

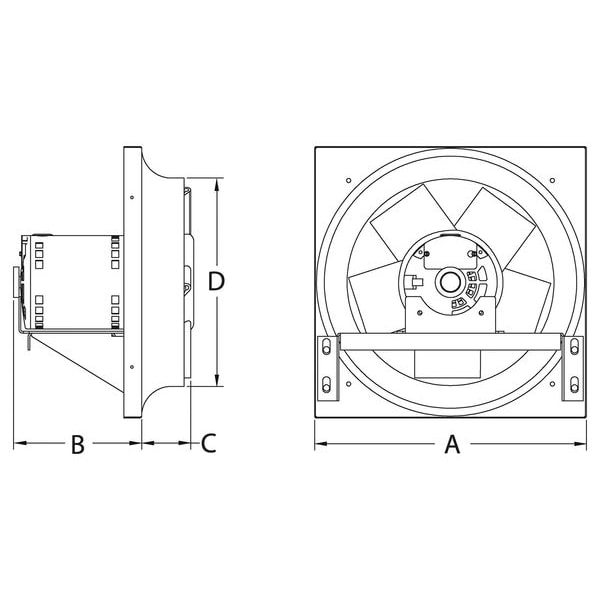

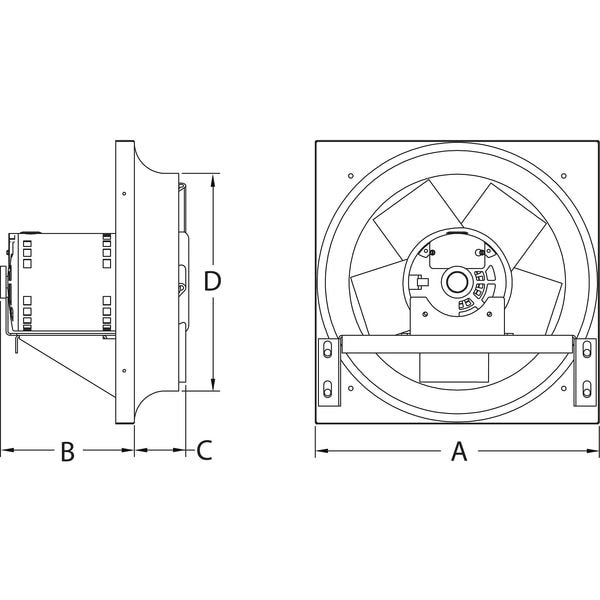

| Dimension B (In.) | 7 |
| Height (In.) | 22 |
| Frame Material | Steel |
| Venturi Depth (In.) | 2-5/8 |
| Venturi Clearance Dia. (In.) | 18-7/16 |
| Width (In.) | 22 |
| Voltage | 115/230 |
| Number of Blades | 3 |
| Dimension A (In.) | 22 |
| Phase | 1 |
| Drive Package Included | No |
| Bearing Type | Ball |
| Dimension D (In.) | 18-1/2 |
| Blade Dia. | 18 in |
| CFM @ 0.250-In. SP | 2,650 cfm |
| Fiberglass Wall Shutter No. | 5C213 |
| Wire Guard Finish | Zinc Plated |
| Type | Heavy Duty Direct Drive |
| Dimension C (In.) | 2-1/2 |
| For Use With | General Ventilation Applications |
| Hz | 60 |
| Speed Control | No |
| Motor Insulation | Class B |
| Aluminum Wall Shutter No. | 4C558 |
| Propeller Material | Aluminum |
| CFM @ 0.500-In. SP | 1,717 cfm |
| Max. Depth (In.) | 9-1/2 |
| CFM @ 0.125-In. SP | 2,947 cfm |
| Sones @ 0.125-In. SP @ 5 Ft. | 14.6 |
| Agency Compliance | UL and cUL Listed, AMCA |
| Frame Finish | Galvanized |
| Sones @ 0.000-In. SP @ 5 Ft. | 18.8 |
| Guard Material | Steel |
| Mounting Position | Vertical |
| Exhaust/Supply Fan Motor HP | 1/4 hp |
| Inside Dia. (In.) | 18-7/16 |
| Motor Enclosure | Totally Enclosed Air Over |
| Max. Ambient Temp. (F) | 104 |
| Motor RPM | 1,739 RPM |
| Exhaust/Supply Fan Item | Exhaust Fan |
| CFM @ 0.375-In. SP | 2,311 cfm |
| Overall Width | 22 in |
| Standards | AMCA, UL and cUL Listed |
| Overall Height | 22 in |
| Venturi Depth | 2-1/2 in |
| Flange Width | 1 in |
| Method of Construction | Stamped |
| Venturi Diameter | 18-1/2 in |
| Noise Level @ 0.000 in SP @ 5 ft | 18.8 sones |
| Exhaust Airflow @ 0.125 in SP | 2,947 cfm |
| Ventilation Type | Exhaust |
| Overall Diameter | 22 in |
| Blade Material | Aluminum |
| Guard Finish | Zinc Plated |
| Guard Type | Intake |
| Exhaust Airflow @ 0.000 in SP | 3,201 cfm |
| Number of Speeds | 1 |
| Motor Horsepower | 0.25 HP |
| Exhaust Airflow @ 0.375 in SP | 2,311 cfm |
| Exhaust Airflow @ 0.250 in SP | 2,650 cfm |
| Motor Speed | 1,739 rpm |
| Speed Controllable | No |
| Maximum Noise Level | 18.8 sones |
| Includes Dehumidistat | No |
| For Cut-Out Diameter | 18-1/2 in |
| Electrical Connection | Hardwired |
| Blade Diameter | 18 in |
| Exhaust Airflow @ 0.100 in SP | 2,947 cfm |
| Overall Depth | 9-1/2 in |
| Nameplate Voltage | 115/230V AC |
| Exhaust Airflow @ 0.500 in SP | 1,717 cfm |
| Assembled | Assembled |
| Drive Type | Direct Drive |
| Duct Shape | Round |
| Fan Style | Panel |
| Noise Level @ 0.125 in SP @ 5 ft | 15 sones |
| Duct Diameter | 18-1/2 in |
| Maximum Ambient Operating Temperature | 104 Degrees F |
| Wattage | 271 W, 281 W |
| Vent Design | Ductless |
| Includes Motor | Yes |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
