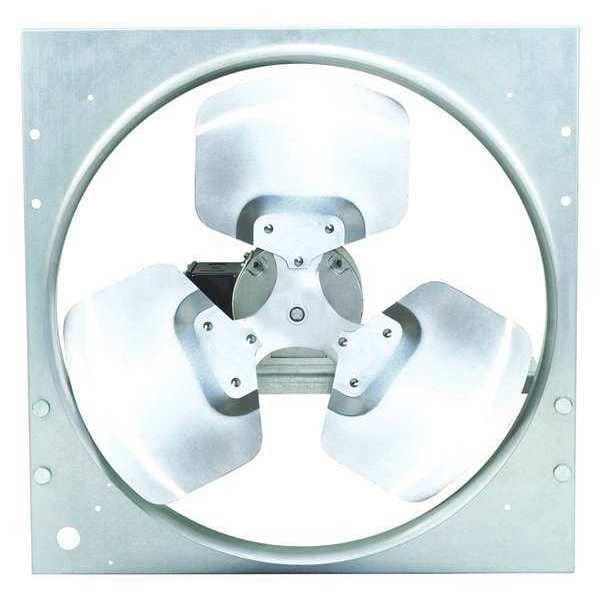

Exhaust Fan, 20 In, 208-230/460V
| Exhaust/Supply Fan Item | Exhaust Fan |
|---|---|
| Type | Commercial Direct Drive |
| Blade Dia. | 20 in |
| Phase | 3 |
| Fan Voltage | 208-230/460V AC |
| Exhaust/Supply Fan Motor HP | 0.5 HP |
| CFM @ 0.000-In. SP | 4,452 cfm |
| Number of Blades | 3 |
| Motor RPM | 1,125 rpm |
| Propeller Material | Aluminum |
| Full Load Amps | 2.1-2.3/1.2 |
| Aluminum Wall Shutter No. | 4C559 |
| Hz | 60 |
| Dimension C (In.) | 5 |
| Item | Exhaust Fan |
| Sones @ 0.000-In. SP @ 5 Ft. | 14.9 |
| Frame Material | Steel |
| Watts | 373 |
| Agency Compliance | UL and cUL Listed, AMCA |
| Max. Depth (In.) | 12-1/2 |
| Intake Guard No. | 1WBU2 |
| Dimension A (In.) | 24 |
| Dimension B (In.) | 7-1/2 |
| Sones @ 0.125-In. SP @ 5 Ft. | 15.1 |
| Venturi Depth (In.) | 3-1/2 |
| Motor Insulation | Class B |
| Fiberglass Wall Shutter No. | 5C214 |
| Width (In.) | 24 |
| CFM @ 0.125-In. SP | 4,134 cfm |
| CFM @ 0.250-In. SP | 3,731 cfm |
| Dimension D (In.) | 20-5/8 |
| For Use With | General Ventilation Applications |
| Motor Enclosure | Totally Enclosed Air Over |
| Bearing Type | Ball |
| Max. Ambient Temp. (F) | 104 |
| Speed Control | No |
| CFM @ 0.375-In. SP | 2,926 cfm |
| Height (In.) | 24 |
| Mounting Position | Vertical or Horizontal |
| Flange Width (In.) | 1 in |
| Drive Package Included | No |
| Frame Finish | Galvanized |
| Galvanized Wall Shutter No. | 1C745 |
| Standards | AMCA, UL and cUL Listed |
| Blade Material | Aluminum |
| Overall Height | 24 in |
| Overall Width | 24 in |
| Voltage | 208-230/460 |
| Exhaust Airflow @ 0.250 in SP | 3,731 cfm |
| Exhaust Airflow @ 0.125 in SP | 4,134 cfm |
| Includes Motor | Yes |
| Noise Level @ 0.125 in SP @ 5 ft | 15 sones |
| Mounting Orientation | Horizontal, Vertical |
| Exhaust Airflow @ 0.000 in SP | 4,452 cfm |
| Overall Depth | 12-1/2 in |
| Motor Horsepower | 0.5 HP |
| Noise Level @ 0.000 in SP @ 5 ft | 14.9 sones |
| Ventilation Type | Exhaust |
| Motor Speed | 1,125 rpm |
| Nameplate Voltage | 208-230/460V AC |
| Maximum Ambient Operating Temperature | 104 deg F |
| Blade Diameter | 20 in |
| Exhaust Airflow @ 0.375 in SP | 2,926 cfm |
| Guard Type | None |
| Maximum Noise Level | 14.9 sones |
| Fan Style | Panel |
| Flange Width | 1 in |
| Venturi Depth | 3-1/2 in |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
