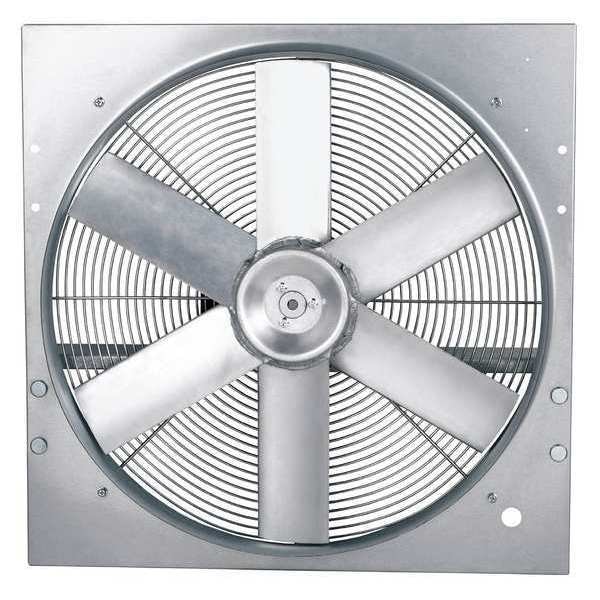

Exhaust Fan, 24 In, 5438 CFM
| Item | Exhaust Fan |
|---|---|
| Max. Depth (In.) | 9-3/4 |
| Max. Ambient Temp. (F) | 104 |
| CFM @ 0.250-In. SP | 5,216 cfm |
| Number of Blades | 6 |
| Agency Compliance | UL and cUL Listed, AMCA |
| Phase | 1 |
| CFM @ 0.125-In. SP | 5,767 cfm |
| Fiberglass Wall Shutter No. | 5C215 |
| Speed Control | No |
| Venturi Depth (In.) | 3-3/8 |
| Propeller Material | Aluminum |
| Exhaust/Supply Fan Item | Exhaust Fan |
| Dimension A (In.) | 28 |
| Width (In.) | 28 |
| Wire Guard Finish | Zinc Plated |
| Venturi Clearance Dia. (In.) | 24-3/8 |
| Drive Package Included | No |
| Outside Dia. (In.) | 28 |
| CFM @ 0.375-In. SP | 4,558 cfm |
| Watts | 373 |
| Full Load Amps | 5.4/2.8 |
| Hz | 60 |
| CFM @ 0.500-In. SP | 3,223 cfm |
| Type | Heavy Duty Direct Drive |
| Motor Enclosure | Totally Enclosed Air Over |
| Blade Dia. | 24 in |
| Sones @ 0.000-In. SP @ 5 Ft. | 21 |
| Guard Material | Steel |
| Sones @ 0.125-In. SP @ 5 Ft. | 16.3 |
| Motor Insulation | Class B |
| Voltage | 115/230 |
| Motor RPM | 1,134 RPM |
| Aluminum Wall Shutter No. | 3C308 |
| Galvanized Wall Shutter No. | 1C746 |
| Mounting Position | Vertical |
| Frame Finish | Galvanized |
| Inside Dia. (In.) | 24-3/8 |
| Exhaust/Supply Fan Motor HP | 1/2 hp |
| Flange Width (In.) | 1 |
| Dimension D (In.) | 24-1/2 |
| Frame Material | Steel |
| For Use With | General Ventilation Applications |
| CFM @ 0.000-In. SP | 6,254 cfm |
| Height (In.) | 28 |
| Dimension B (In.) | 7-1/2 |
| Dimension C (In.) | 2-1/4 |
| Fan Voltage | 115/230V AC |
| Bearing Type | Ball |
| Overall Width | 28 in |
| Standards | AMCA, UL and cUL Listed |
| Overall Height | 28 in |
| Flange Width | 1 in |
| Venturi Depth | 3-1/2 in |
| Blade Material | Aluminum |
| Noise Level @ 0.125 in SP @ 5 ft | 16 sones |
| Method of Construction | Stamped |
| Drive Type | Direct Drive |
| Includes Motor | Yes |
| Exhaust Airflow @ 0.100 in SP | 5,767 cfm |
| Maximum Ambient Operating Temperature | 104 Degrees F |
| Exhaust Airflow @ 0.125 in SP | 5,767 cfm |
| Vent Design | Ductless |
| Exhaust Airflow @ 0.375 in SP | 4,558 cfm |
| Exhaust Airflow @ 0.500 in SP | 3,223 cfm |
| Wattage | 510 W, 520 W |
| Venturi Diameter | 24-1/2 in |
| Includes Dehumidistat | No |
| Assembled | Assembled |
| Blade Diameter | 24 in |
| Exhaust Airflow @ 0.250 in SP | 5,216 cfm |
| For Cut-Out Diameter | 24-1/2 in |
| Guard Finish | Zinc Plated |
| Duct Diameter | 24-1/2 in |
| Guard Type | Intake |
| Noise Level @ 0.000 in SP @ 5 ft | 21 sones |
| Nameplate Voltage | 115/230V AC |
| Maximum Noise Level | 21 sones |
| Number of Speeds | 1 |
| Duct Shape | Round |
| Speed Controllable | No |
| Motor Speed | 1,134 rpm |
| Motor Horsepower | 0.5 HP |
| Overall Diameter | 28 in |
| Electrical Connection | Hardwired |
| Exhaust Airflow @ 0.000 in SP | 6,254 cfm |
| Ventilation Type | Exhaust |
| Fan Style | Panel |
| Overall Depth | 9-3/4 in |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
