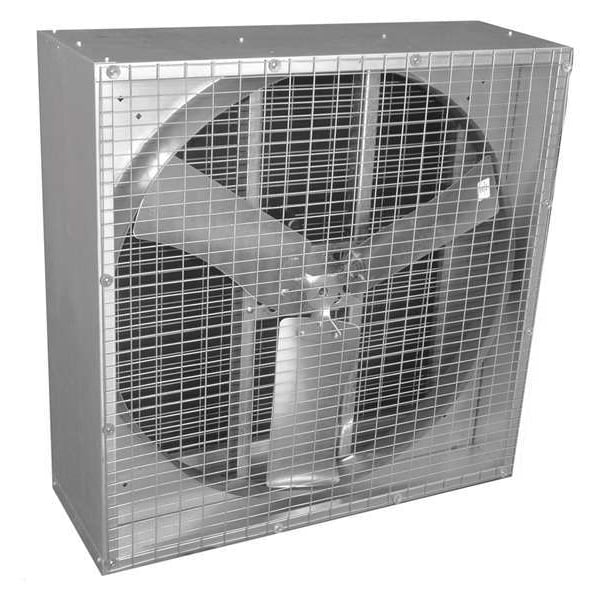

Exhaust Fan, 36 In, D/D
| Type | Direct Drive, Assembled |
|---|---|
| Venturi Clearance Dia. (In.) | 5/16 |
| Dimension B (In.) | 14 |
| Max. Depth (In.) | 14 |
| Venturi Depth (In.) | 4 |
| Phase | 1 |
| CFM/Watt @ 0.100-In. SP | 16.4 |
| Shaft Dia. (In.) | 5/8 |
| Frame Material | Steel |
| Motor Type | 3-Phase |
| Opening Required H (In.) | 40-3/4 |
| Max. Ambient Temp. (F) | 104 |
| CFM @ 0.100-In. SP | 9,381 |
| HP | 1/2 hp |
| CFM @ 0.050-In. SP | 10,217 |
| Mounting Location | Vertical |
| Full Load Amps | 5.2/2.6 |
| Agency Compliance | Motor is UL recognized for USA & Canada. |
| Width (In.) | 40-7/64 |
| Opening Required W (In.) | 40-3/4 |
| Bearing Type | Permanently Lubricated Sealed Ball |
| Dimension A (In.) | 40-1/8 |
| CFM/Watt @ 0.050-In. SP | 18.6 |
| Dimension D (In.) | 3/8 |
| Voltage | 115/230 |
| CFM/Watt @ 0.150-In. SP | 14.5 |
| Frame Finish | Galvanized |
| Propeller Dia. (In.) | 36 |
| Includes | Mesh Screen |
| Motor Enclosure | Totally Enclosed Air Over |
| Fan RPM | 850 |
| CFM @ 0.000-In. SP | 11,077 |
| Height (In.) | 40-1/8 |
| Hz | 60 |
| Propeller Material | Galvanized Steel |
| Mesh Size | 1 in x 2 in |
| Motor Insulation | Class B |
| Item | Agricultural Exhaust Fan |
| CFM @ 0.150-In. SP | 8,557 |
| CFM/Watt @ 0.000-In. SP | 21.1 |
| Number of Blades | 3 |
| Motor RPM | 825 |
| Standards | C-UL Listed, UL Listed |
| Overall Width | 40-1/8 in |
| Overall Height | 40-1/8 in |
| Venturi Depth | 4 in |
| Maximum Airflow | 11,077 cfm |
| Shaft Diameter | 5/8 in |
| Guard Finish | Zinc Plated |
| Guard Material | Steel |
| Overall Depth | 14 in |
| Motor Speed | 825 RPM |
| For Cut-Out Width | 40-3/4 in |
| Motor Horsepower | 0.5 HP |
| Exhaust Airflow @ 0.100 in SP | 9,381 cfm |
| Maximum Noise Level | 28 sones |
| Fan Style | Box |
| Exhaust Airflow @ 0.000 in SP | 11,077 cfm |
| Number of Speeds | 1 |
| Blade Material | Steel |
| Housing Material | Steel |
| Blade Diameter | 36 in |
| Nameplate Voltage | 115/230V AC |
| Number of Fans | 1 |
| Maximum Ambient Operating Temperature | 104 deg F |
| Full Load Current | 5.2 A |
| Noise Level @ 0.000 in SP @ 5 ft | 28 sones |
| Includes Motor | Yes |
| Mounting Orientation | Vertical |
| Frequency | 60 Hz |
| Housing Finish | Galvanized |
| Drive Type | Direct Drive |
| For Maximum Wall Thickness | 8 in |
| For Minimum Wall Thickness | 6 in |
| Speed Controllable | No |
| Noise Level @ 0.100 in SP @ 5 ft | 26.8 sones |
| Electrical Connection | Hardwired |
| Includes Dehumidistat | No |
| Guard Type | Exhaust |
| For Cut-Out Height | 40-3/4 in |
| Assembled | Assembled |
| Wattage | 620 W |
| Ventilation Type | Exhaust |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
