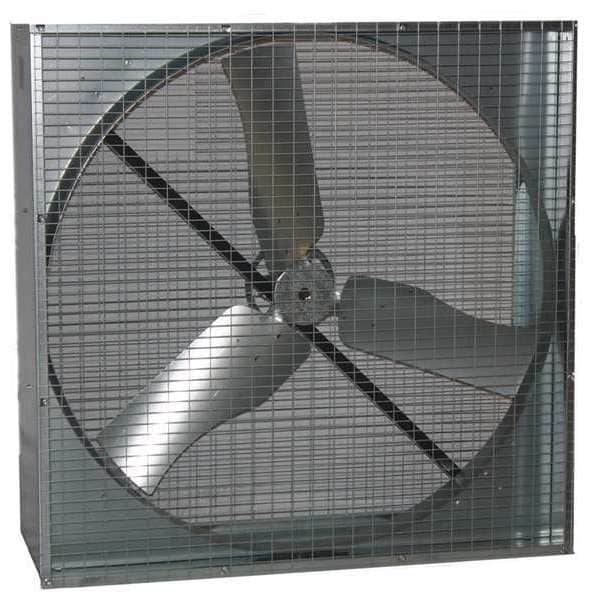

Exhaust Fan, 48In, Belt Drive Less Motor
| Type | Belt Drive, Less Motor |
|---|---|
| Frame Material | Steel |
| Requires | 1 HP (Capacitor Start Totally Enclosed) |
| CFM/Watt @ 0.050-In. SP | 19.5 |
| Opening Required W (In.) | 52-7/8 |
| Width (In.) | 52-1/8 |
| Venturi Depth (In.) | 4-1/2 |
| Propeller Material | Galvanized Steel |
| Bearing Type | Permanently Lubricated Sealed Ball |
| Number of Blades | 3 |
| Frame Finish | Zinc-Plated |
| Motor RPM | 1725 |
| Height (In.) | 52-1/8 |
| CFM @ 0.150-In. SP | 15,347 |
| Mesh Size | 1 in x 2 in |
| Dimension D (In.) | 3/8 |
| Item | Agricultural Exhaust Fan |
| Venturi Clearance Dia. (In.) | 5/16 |
| CFM/Watt @ 0.000-In. SP | 21.6 |
| Fan RPM | 608 |
| Shaft Dia. (In.) | 1 |
| CFM @ 0.100-In. SP | 16,773 |
| Opening Required H (In.) | 52-7/8 |
| CFM/Watt @ 0.150-In. SP | 15.4 |
| Max. Ambient Temp. (F) | 104 |
| CFM/Watt @ 0.100-In. SP | 17.3 |
| Includes | Intake And Discharge Screens, Drive Sheaves And Belt, Mounting Frame |
| For Use With | Farm Duty Motor (not Included) |
| Mounting Location | Vertical |
| Dimension C (In.) | 22 |
| Propeller Dia. (In.) | 48 |
| Dimension A (In.) | 52-1/8 |
| HP | 1 hp |
| CFM @ 0.000-In. SP | 19,608 |
| Max. Depth (In.) | 17 |
| Dimension B (In.) | 17 |
| CFM @ 0.050-In. SP | 18,228 |
| Overall Height | 52-1/8 in |
| Overall Width | 52-1/8 in |
| Standards | OSHA, UL |
| Venturi Depth | 4-1/2 in |
| Ventilation Type | Exhaust |
| Blade Diameter | 48 in |
| Venturi Diameter | 3/8 in |
| Blade Finish | Galvanized |
| Maximum Static Pressure | 0.3 in wg |
| Maximum Ambient Operating Temperature | 104 deg F |
| Shaft Diameter | 1 in |
| Drive Type | Belt Drive |
| For Maximum Motor Speed | 1,725 rpm |
| For Maximum Motor Horsepower | 1 HP |
| Mounting Orientation | Vertical |
| Includes Motor | No |
| For Cut-Out Height | 53 in |
| Overall Depth | 17 in |
| For Minimum Motor Speed | 525 RPM |
| Blade Material | Steel |
| Fan Style | Guard-Mounted |
| Guard Type | Intake |
| Assembled | Unassembled |
| Minimum Airflow | 19,000 cfm |
| For Minimum Motor Horsepower | 1 HP |
| Maximum Airflow | 19,608 cfm |
| For Cut-Out Width | 53 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
