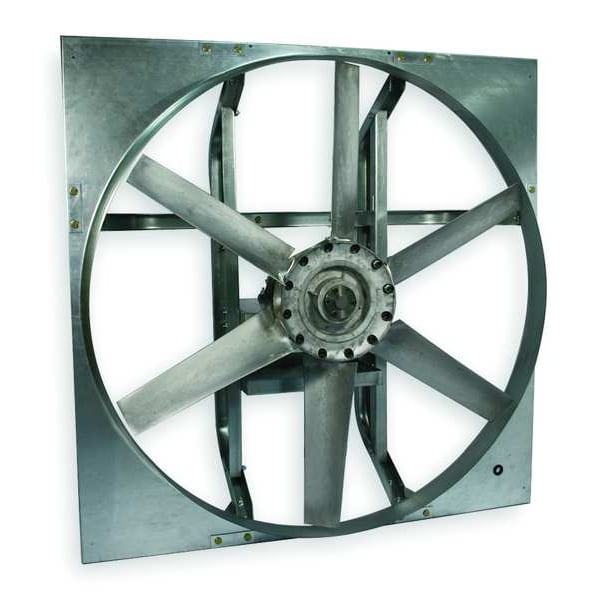

Exhaust Fan, 54 In, Less Drive Package
| Exhaust/Supply Fan Item | Exhaust Fan |
|---|---|
| Type | Heavy Duty Belt Drive Less Drive Package |
| Blade Dia. | 54 in |
| CFM Range | 33,602 to 50,124 |
| Exhaust/Supply Fan Motor HP | 3 to 10 |
| Drive Package With Motor Included | No |
| Max. Depth (In.) | 33-1/2 |
| Shaft Dia. (In.) | 1-1/2 |
| Aluminum Wall Shutter No. | 3C313 |
| Weatherhood No. | 1WBW5 |
| Propeller Material | Cast Aluminum |

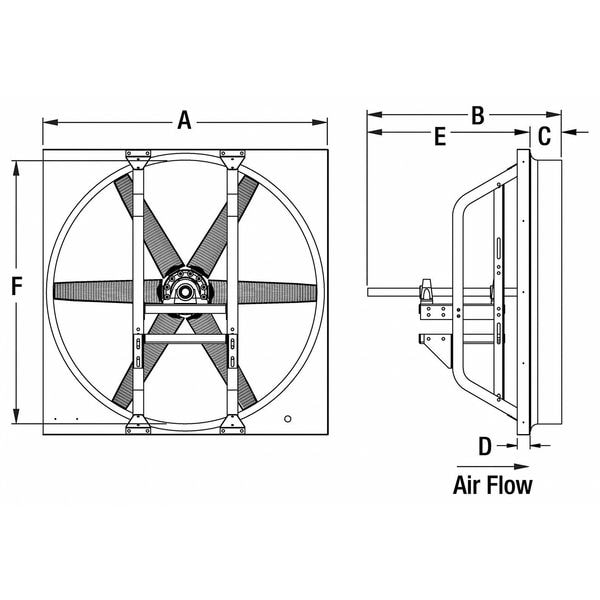

| Dimension E (In.) | 27 |
| Dimension A (In.) | 60 |
| Requires | Wall Collar and Shutter For New Installation |
| Max. Ambient Temp. (F) | 104 |
| Wall Housing Item No. | 3FKG4 |
| Wall Collar Stock No. | 1WBV7 |
| Venturi Depth (In.) | 6-1/2 |
| Drive Package Included | No |
| Mounting Position | Horizontal or Vertical |
| Fiberglass Wall Shutter No. | 5C221 |
| Dimension C (In.) | 6-1/2 |
| Frame Material | Steel |
| Dimension D (In.) | 2 |
| Bearing Size (In.) | 1-1/2 |
| Dimension F (In.) | 55 |
| Intake Guard No. | 1WBU8 |
| RPM Range | 480 to 716 |
| Item | Exhaust Fan |
| Number of Blades | 6 |
| Venturi Clearance Dia. (In.) | 55 |
| Dimension B (In.) | 33-1/2 |
| Height (In.) | 60 |
| Bearing Type | Regreasable Pillow Block |
| Galvanized Wall Shutter No. | 3C115 |
| Width (In.) | 60 |
| Flange Depth (In.) | 2 |
| Overall Width | 60 in |
| Standards | AMCA Air and Sound, UL/cUL 705 |
| Overall Height | 60 in |
| Maximum Ambient Operating Temperature | 104 deg F |
| Ventilation Type | Exhaust |
| Method of Construction | Cast |
| Overall Depth | 33-1/2 in |
| Mounting Orientation | Horizontal, Vertical |
| For Cut-Out Diameter | 57-1/2 in |
| Maximum Airflow | 50,124 cfm |
| Shaft Diameter | 1-1/2 in |
| Manufacturer Warranty Length | 1 yr |
| Overall Diameter | 54 in |
| Maximum Inlet Temperature | 104 deg F |
| Venturi Depth | 6-1/2 in |
| Minimum Airflow | 33,602 cfm |
| Venturi Diameter | 55 in |
| For Minimum Motor Speed | 480 RPM |
| Blade Diameter | 54 in |
| Flange Depth | 2 in |
| Includes Motor | No |
| For Minimum Motor Horsepower | 3 HP |
| Assembled | Unassembled |
| For Maximum Motor Speed | 716 RPM |
| Bearing Size | 1-1/2 in |
| Fan Style | Panel |
| Blade Material | Aluminum |
| Flange Width | 60 in |
| Maximum Static Pressure | 0.75 in wg |
| For Cut-Out Width | 56-1/2 in |
| For Cut-Out Height | 56-1/2 in |
| For Maximum Motor Horsepower | 10 HP |
| Guard Type | None |
| Frame Finish | Zinc-Plated |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
