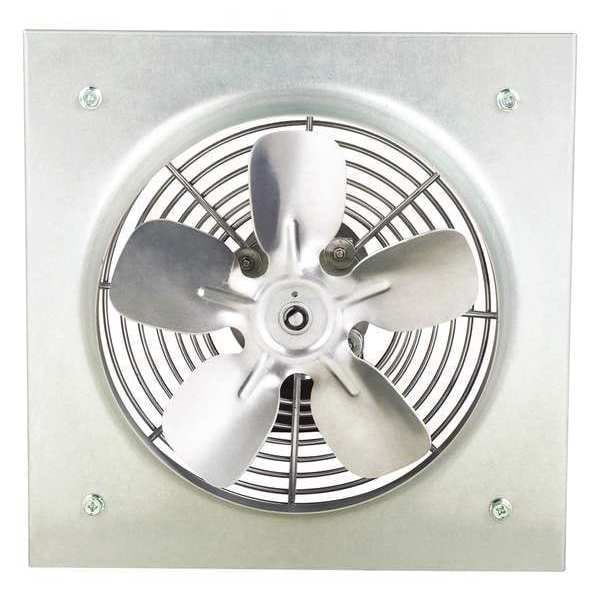

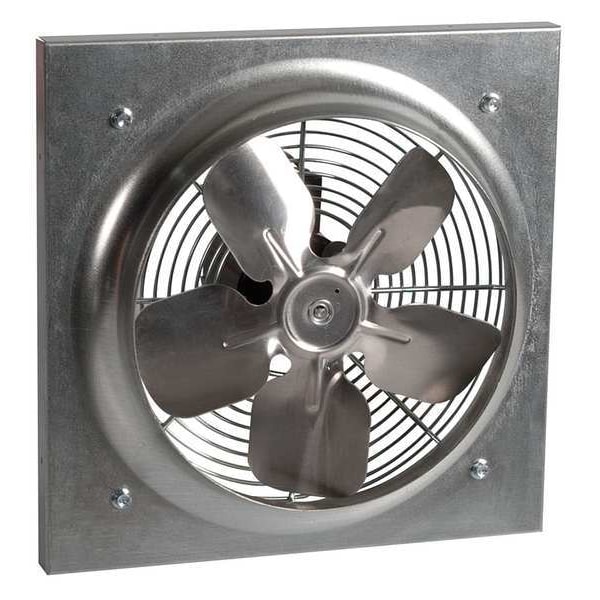

Exhaust Fan, 8", 466 cfm, 115V, 1 Phase
| Exhaust/Supply Fan Item | Exhaust Fan |
|---|---|
| Blade Dia. | 8 in |
| Number of Speeds | 1 |
| Fan Voltage | 115 V |
| CFM @ 0.000-In. SP | 466 cfm |
| Exhaust/Supply Fan Motor HP | 1/30 hp |
| Item | Exhaust Fan |
| CFM @ 0.250-In. SP | 170 cfm |
| Venturi Depth (In.) | 1-3/4 |

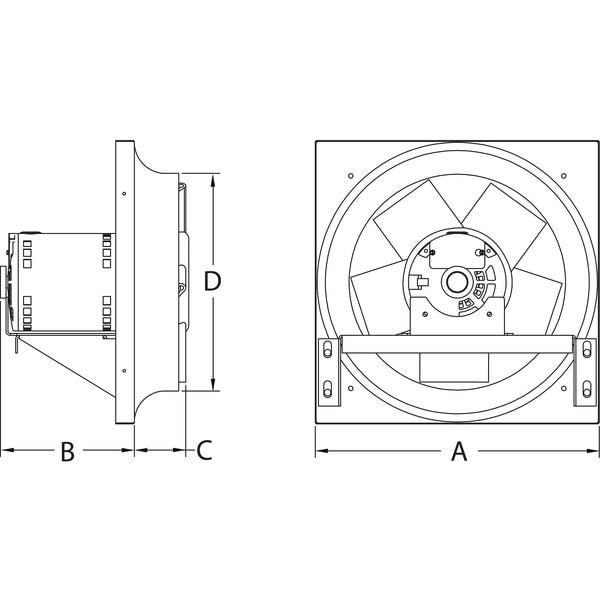

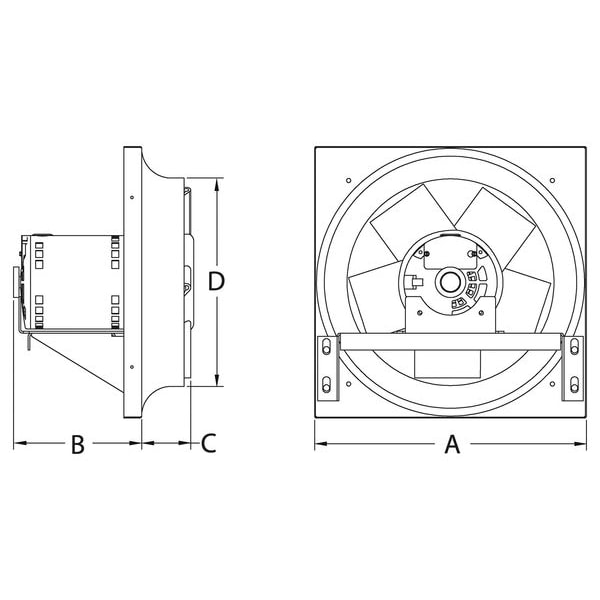

| Dimension C (In.) | 2-3/8 |
| Number of Blades | 5 |
| Type | Medium Duty Direct Drive |
| Height (In.) | 12 |
| Voltage | 115 V |
| Frame Finish | Galvanized |
| Dimension B (In.) | 5 in |
| Agency Compliance | AMCA, Listed, UL and cUL |
| Watts | 25 |
| Motor Insulation | Class B |
| Max. Depth (In.) | 7-3/8 |
| Hz | 60 |
| Width (In.) | 12 |
| Frame Material | Steel |
| Wire Guard Finish | Zinc Plated |
| CFM @ 0.125-In. SP | 329 cfm |
| Speed Control | 48C172 |
| Bearing Type | Ball |
| Propeller Material | Aluminum |
| Mounting Position | Vertical |
| Flange Width (In.) | 1 |
| Motor RPM | 1,775 RPM |
| For Use With | General Ventilation Applications |
| Drive Package Included | No |
| Inside Dia. (In.) | 8-1/4 |
| Sones @ 0.000-In. SP @ 5 Ft. | 6.8 |
| Venturi Clearance Dia. (In.) | 8-3/8 |
| Full Load Amps | 0.6 |
| Phase | 1 |
| Dimension D (In.) | 8-1/4 |
| Motor Enclosure | Totally Enclosed Air Over |
| CFM @ 0.375-In. SP | 117 cfm |
| Guard Material | Steel |
| Sones @ 0.125-In. SP @ 5 Ft. | 7.6 |
| Outside Dia. (In.) | 12 |
| Max. Ambient Temp. (F) | 104 Degrees F |
| Dimension A (In.) | 12 |
| Blade Material | Aluminum |
| Standards | AMCA, UL and cUL Listed |
| Overall Height | 12 in |
| Overall Width | 12 in |
| Method of Construction | Stamped |
| Venturi Diameter | 8-1/2 in |
| Exhaust Airflow @ 0.125 in SP | 329 cfm |
| Overall Depth | 7-3/8 in |
| Guard Finish | Zinc Plated |
| Motor Speed | 1,775 rpm |
| Nameplate Voltage | 115V AC |
| Maximum Ambient Operating Temperature | 104 deg F |
| Ventilation Type | Exhaust |
| Flange Width | 1 in |
| Exhaust Airflow @ 0.250 in SP | 170 cfm |
| Includes Dehumidistat | No |
| Motor Horsepower | 1/30 hp |
| Duct Diameter | 8-1/4 in |
| Exhaust Airflow @ 0.100 in SP | 329 cfm |
| Exhaust Airflow @ 0.000 in SP | 466 cfm |
| Drive Type | Direct Drive |
| Maximum Noise Level | 6.8 sones |
| Electrical Connection | Hardwired |
| Guard Type | Intake |
| For Cut-Out Diameter | 8-1/4 in |
| Noise Level @ 0.000 in SP @ 5 ft | 6.8 sones |
| Exhaust Airflow @ 0.375 in SP | 117 cfm |
| Venturi Depth | 2 in |
| Fan Style | Panel |
| Speed Controllable | Yes |
| Vent Design | Ductless |
| Assembled | Assembled |
| Duct Shape | Round |
| Blade Diameter | 8 in |
| Noise Level @ 0.125 in SP @ 5 ft | 8 sones |
| Wattage | 57 W |
| Includes Motor | Yes |
| Overall Diameter | 12 in |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
