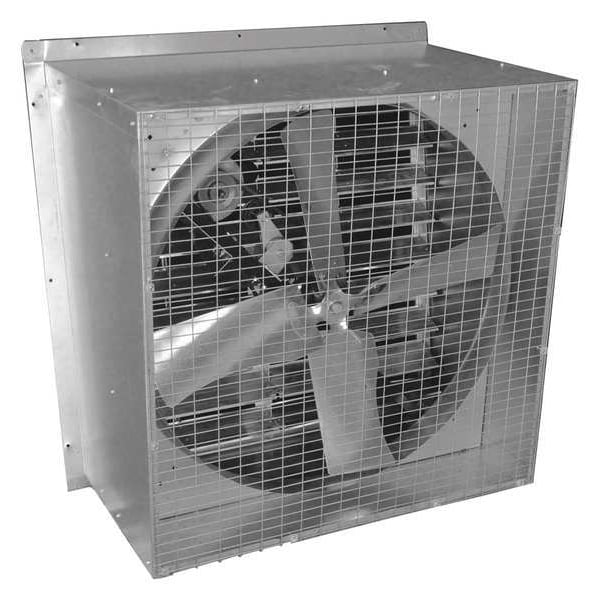

Exhaust Fan, Slantwall, 36In, Belt Drive
| Type | Slant-Wall, Belt-Drive |
|---|---|
| Motor Type | 3-Phase |
| Dimension B (In.) | 45-1/4 |
| Opening Required H (In.) | 42-7/8 |
| Max. Depth (In.) | 27 |
| Full Load Amps | 6.4/3.2 |
| CFM/Watt @ 0.150-In. SP | 14.2 |
| Frame Material | Steel |
| CFM @ 0.050-In. SP | 10,790 |
| Number of Blades | 4 |
| Dimension AA (In.) | 39-1/2 |
| CFM @ 0.000-In. SP | 11,420 |
| Flange Width (In.) | 2 |
| Propeller Material | Galvanized Steel |
| Venturi Depth (In.) | 4 |
| Width (In.) | 40-7/64 |
| Dimension A (In.) | 44 |
| CFM/Watt @ 0.000-In. SP | 19.4 |
| Includes | Mesh Screen |
| Hz | 60 |
| Phase | 1 |
| CFM/Watt @ 0.050-In. SP | 17.6 |
| Dimension BB (In.) | 40-1/8 |
| Voltage | 115/230 |
| CFM @ 0.150-In. SP | 9,480 |
| Venturi Clearance Dia. (In.) | 5/16 |
| Mounting Location | Wall |
| Opening Required W (In.) | 40-7/8 |
| Dimension C (In.) | 27 |
| CFM/Watt @ 0.100-In. SP | 15.9 |
| Dimension E (In.) | 4-1/2 |
| Motor Insulation | Class B |
| Dimension F (In.) | 45-3/4 |
| Agency Compliance | Motor is UL recognized for USA & Canada. |
| Max. Ambient Temp. (F) | 104 |
| Height (In.) | 40-3/4 |
| CFM @ 0.100-In. SP | 10,170 |
| Frame Finish | Galvanized |
| Dimension D (In.) | 16-3/4 |
| HP | 3/4 hp |
| Motor RPM | 1725 |
| Fan RPM | 705 |
| Bearing Type | Permanently Lubricated Sealed Ball |
| Propeller Dia. (In.) | 36 |
| Item | Agricultural Exhaust Fan |
| Shaft Dia. (In.) | 7/8 |
| Motor Enclosure | Totally Enclosed Air Over |
| Mesh Size | 1 in x 2 in |
| Standards | C-UL Listed, UL Listed |
| Overall Height | 40-3/4 in |
| Overall Width | 40-1/8 in |
| Venturi Depth | 4 in |
| Flange Width | 2 in |
| Mounting Orientation | Vertical |
| Includes Motor | Yes |
| Number of Fans | 1 |
| Guard Material | Steel |
| Fan Style | Slant-Wall |
| Guard Finish | Zinc Plated |
| Wattage | 660 W |
| Maximum Noise Level | 24.2 sones |
| Nameplate Voltage | 115/230V AC |
| For Cut-Out Height | 43 in |
| Blade Diameter | 36 in |
| Exhaust Airflow @ 0.100 in SP | 10,170 cfm |
| Noise Level @ 0.100 in SP @ 5 ft | 23.1 sones |
| Housing Finish | Galvanized |
| Overall Depth | 27 in |
| For Minimum Wall Thickness | 6 in |
| Exhaust Airflow @ 0.000 in SP | 11,420 cfm |
| Motor Horsepower | 0.75 HP |
| Shaft Diameter | 7/8 in |
| Maximum Ambient Operating Temperature | 104 deg F |
| Number of Speeds | 1 |
| For Cut-Out Width | 40-7/8 in |
| For Maximum Wall Thickness | 8 in |
| Maximum Airflow | 11,420 cfm |
| Motor Speed | 1,725 rpm |
| Drive Type | Belt Drive |
| Includes Dehumidistat | No |
| Blade Material | Steel |
| Noise Level @ 0.000 in SP @ 5 ft | 24.2 sones |
| Full Load Current | 6.4 A |
| Guard Type | Exhaust |
| Speed Controllable | No |
| Frequency | 60 Hz |
| Ventilation Type | Exhaust |
| Housing Material | Steel |
| Electrical Connection | Hardwired |
| Assembled | Assembled |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
