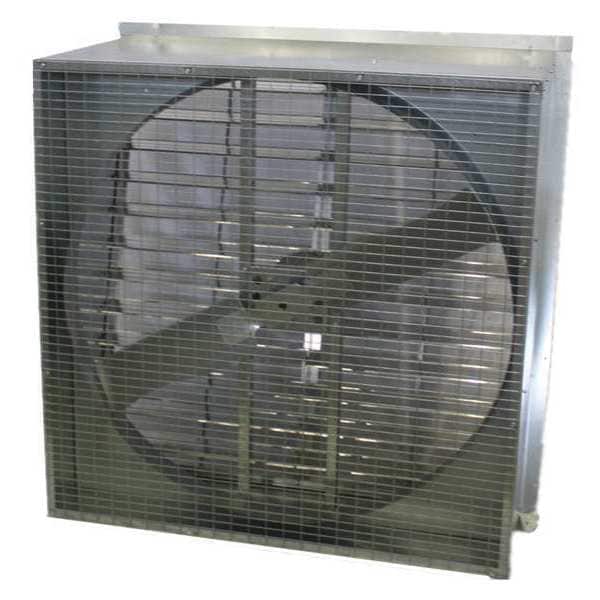

Exhaust Fan, Slantwall, 48"Propeller
| Type | Slant-Wall, Direct-Drive |
|---|---|
| CFM/Watt @ 0.100-In. SP | 14.8 |
| Motor RPM | 850 |
| Opening Required H (In.) | 55-1/2 |
| Propeller Dia. (In.) | 48 |
| Motor Enclosure | Totally Enclosed Air Over |
| CFM @ 0.000-In. SP | 19,100 |
| Width (In.) | 52-1/8 |
| Propeller Material | Galvanized Steel |
| HP | 1 hp |
| Phase | 1 |
| Bearing Type | Permanently Lubricated Sealed Ball |
| Dimension BB (In.) | 53-1/4 |
| Fan RPM | 855 |
| Height (In.) | 53-1/4 |
| Venturi Depth (In.) | 4-1/2 |
| CFM/Watt @ 0.050-In. SP | 16.5 |
| Dimension A (In.) | 56 |
| Hz | 60 |
| CFM @ 0.100-In. SP | 16,500 |
| Dimension AA (In.) | 51-1/2 |
| Number of Blades | 2 |
| Includes | Mesh Screen |
| Frame Finish | Galvanized |
| Dimension C (In.) | 29-1/4 |
| Flange Width (In.) | 2 |
| CFM @ 0.050-In. SP | 17,900 |
| Motor Type | 3-Phase |
| CFM/Watt @ 0.150-In. SP | 13.1 |
| Full Load Amps | 11.0/5.5 |
| Shaft Dia. (In.) | 7/8 |
| Frame Material | Steel |
| Max. Ambient Temp. (F) | 104 |
| Venturi Clearance Dia. (In.) | 5/16 |
| CFM @ 0.150-In. SP | 14,900 |
| Mounting Location | Wall |
| Agency Compliance | Motor is UL recognized for USA & Canada. |
| CFM/Watt @ 0.000-In. SP | 18.1 |
| Motor Insulation | Class B |
| Item | Agricultural Exhaust Fan |
| Dimension F (In.) | 58-1/8 |
| Dimension E (In.) | 3 |
| Voltage | 115/230 |
| Max. Depth (In.) | 28 |
| Mesh Size | 1 in x 2 in |
| Dimension B (In.) | 57-7/8 |
| Dimension D (In.) | 15-5/8 |
| Opening Required W (In.) | 52-7/8 |
| Standards | C-UL Listed, UL Listed |
| Overall Height | 53-1/4 in |
| Overall Width | 52-1/8 in |
| Flange Width | 2 in |
| Venturi Depth | 4-1/2 in |
| Number of Fans | 1 |
| Nameplate Voltage | 115/230V AC |
| Maximum Ambient Operating Temperature | 104 deg F |
| Guard Finish | Zinc Plated |
| Grille Length | 51-1/2 in |
| Grille Width | 53-1/4 in |
| Shaft Diameter | 7/8 in |
| Manufacturer Warranty Length | 1 yr |
| Thermal Protection | Yes |
| Motor Speed | 850 RPM |
| For Maximum Wall Thickness | 8 in |
| Number of Speeds | 1 |
| Blade Diameter | 48 in |
| Discharge Direction | Horizontal |
| Full Load Current | 11 A |
| Assembled | Assembled |
| For Cut-Out Width | 52-7/8 in |
| Blade Material | Steel |
| Fan Style | Slant-Wall |
| Overall Depth | 28 in |
| Includes Dehumidistat | No |
| Exhaust Airflow @ 0.100 in SP | 16,500 cfm |
| Guard Type | Exhaust |
| Speed Controllable | No |
| For Cut-Out Height | 55-1/2 in |
| Guard Material | Steel |
| Exhaust Airflow @ 0.000 in SP | 19,100 cfm |
| For Minimum Wall Thickness | 6 in |
| Housing Material | Steel |
| Housing Finish | Galvanized |
| Motor Horsepower | 1 HP |
| Ventilation Type | Exhaust |
| Noise Level @ 0.000 in SP @ 5 ft | 37 sones |
| Wattage | 1,130 W |
| Mounting Orientation | Vertical |
| Maximum Noise Level | 37 sones |
| Maximum Airflow | 19,100 cfm |
| Electrical Connection | Hardwired |
| Frequency | 60 Hz |
| Drive Type | Direct Drive |
| Includes Motor | Yes |
| Noise Level @ 0.100 in SP @ 5 ft | 35 sones |
| Number of Shutters | 1 |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
