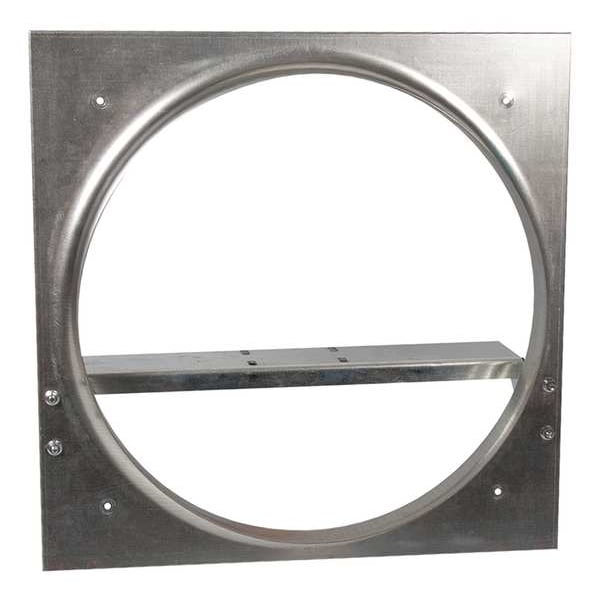

Exhaust Fan Venturi Frame, 22x22, Galv
| Item | Exhaust Fan Venturi Frame |
|---|---|
| Material | Steel |
| Flange Width | 1 in |
| Venturi Depth | 3 in |
| Frame Finish | Galvanized |

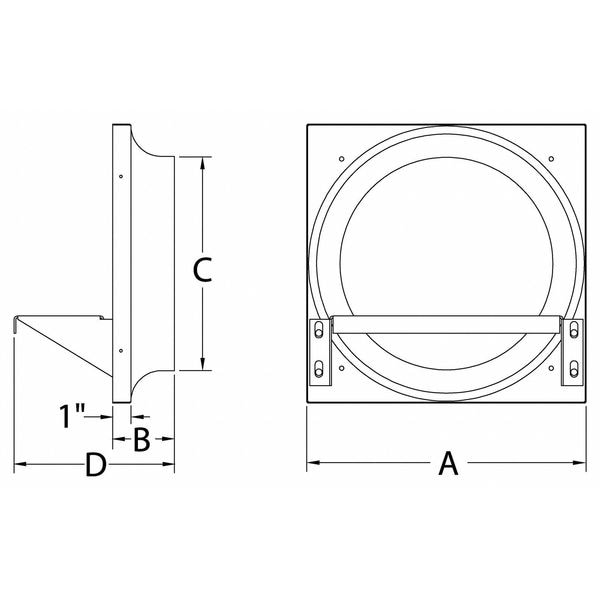

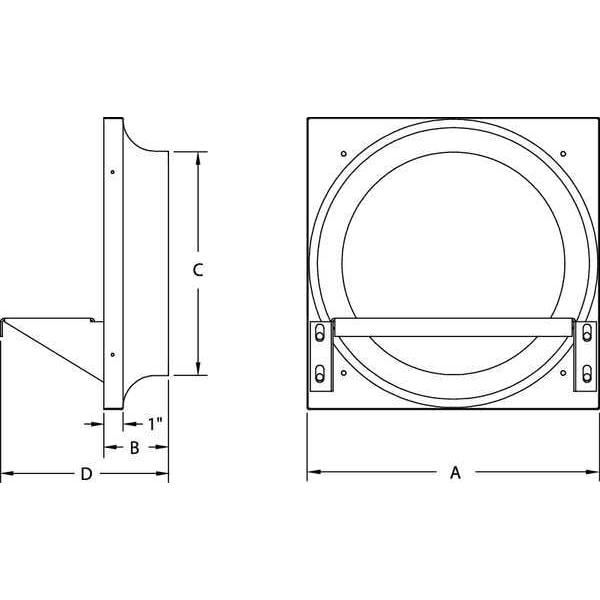

| Dimension C | 18-1/2 in |
| Height | 22 in |
| Width | 22 in |
| Dimension D | 9-1/2 in |
| Dimension A | 22 in |
| Dia. Opening Required | 20-1/2 in |
| For Blade Dia. | 18 in |
| Max. Depth | 9 in |
| Dimension B | 4 in |
| Frame Material | Steel |
| Includes | Mounting Bolts, Slotted Motor Base |
| For Cut-Out Height | 20-1/2 in |
| For Blade Diameter | 18 in |
| Overall Depth | 9 in |
| Opening Diameter | 20-1/2 in |
| For Cut-Out Width | 20-1/2 in |
| Overall Height | 22 in |
| Overall Width | 22 in |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
