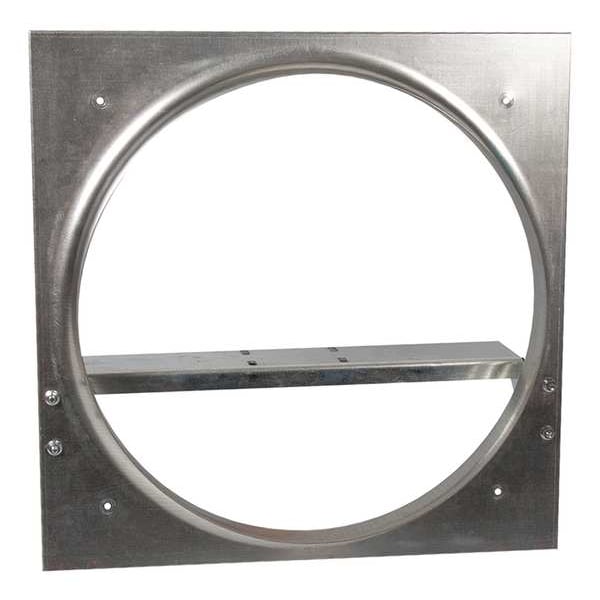

Exhaust Fan Venturi Frame, 28x28, Galv
| Item | Exhaust Fan Venturi Frame |
|---|---|
| Material | Steel |
| Flange Width | 1 in |
| Width | 28 in |
| Includes | Mounting Bolts, Slotted Motor Base |
| Venturi Depth | 3-1/2 in |

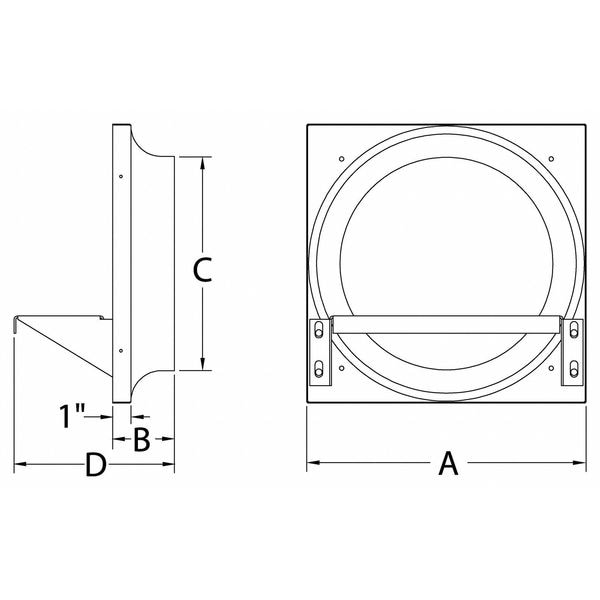

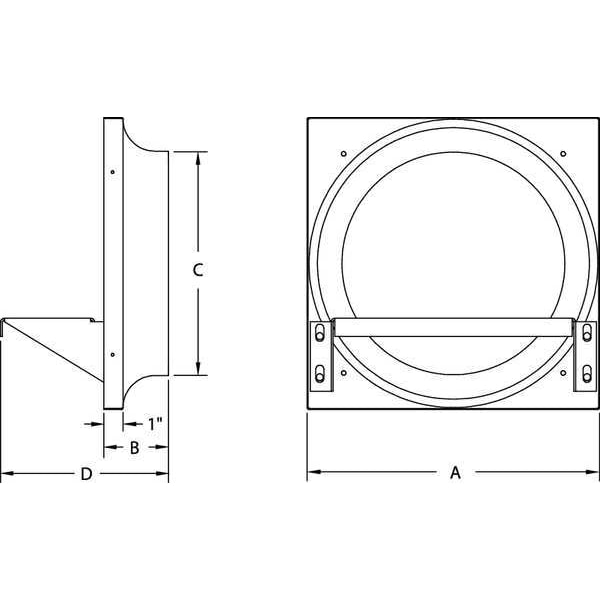

| Dimension D | 12 in |
| Dia. Opening Required | 26-1/2 in |
| Max. Depth | 8-7/8 in |
| Height | 28 in |
| Dimension C | 24-1/2 in |
| Dimension A | 28 in |
| Frame Finish | Galvanized |
| For Blade Dia. | 24 in |
| Dimension B | 4-1/2 in |
| Frame Material | Steel |
| Opening Diameter | 26-1/2 in |
| For Blade Diameter | 24 in |
| Overall Width | 28 in |
| Overall Height | 28 in |
| For Cut-Out Height | 26-1/2 in |
| For Cut-Out Width | 26-1/2 in |
| Overall Depth | 9 in |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
