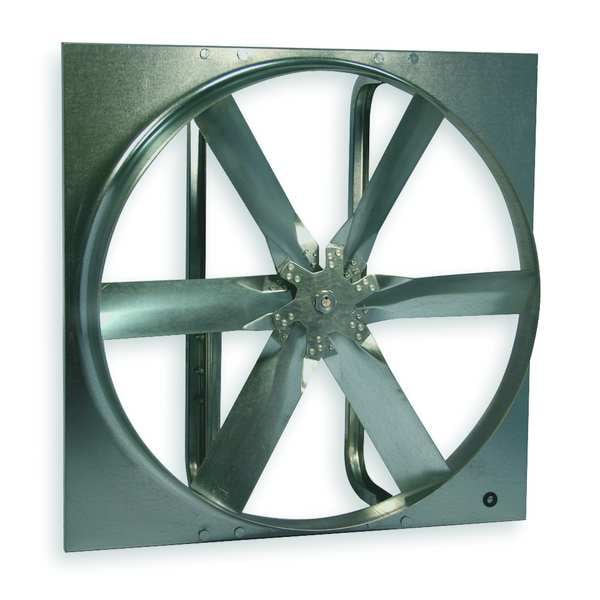

Exhaust Fan with Drive Package, 20 in Blade Dia, 115/208-230V AC, 1/3 hp, 947 RPM
| Item | Exhaust Fan with Drive Package |
|---|---|
| Exhaust/Supply Fan Item | Exhaust Fan |
| Blade Dia. | 20 in |
| Fan Voltage | 115/208-230V AC |
| Exhaust/Supply Fan Motor HP | 0.3333 HP |
| Motor Enclosure | Open Dripproof |
| Motor Type | 3-Phase |
| Fan RPM | 947 |
| Drive Package With Motor Included | Yes |
| CFM @ 0.000-In. SP | 4,844 cfm |
| CFM @ 0.125-In. SP | 4,156 cfm |
| Flange Width | 24 in |

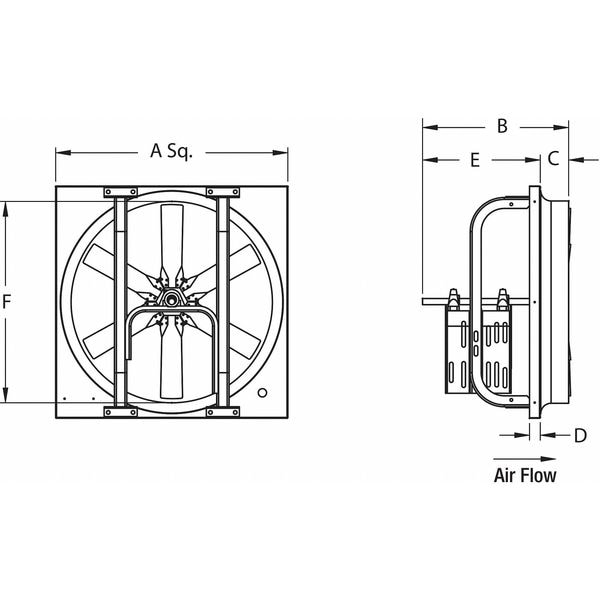

| Dimension C | 3-1/4 in |
| Bearing Size | 3/4 in |
| Fiberglass Wall Shutter No. | 5C214 |
| Max. Depth | 19-1/2 in |
| Width (In.) | 24 |
| Wall Collar Stock No. | 3FKF3 |
| Dimension D | 1 in |
| Weatherhood No. | 3FKF2 |
| Includes | Drive Package |
| Drive Package Included | Yes |
| Full Load Amps | 6.6/3.4-3.1 |
| Aluminum Wall Shutter No. | 4C559 |
| Motorized Wall Galv. Shutter Stock No. | 3C726 |
| Propeller Material | Steel |
| Shaft Dia. | 3/4 in |

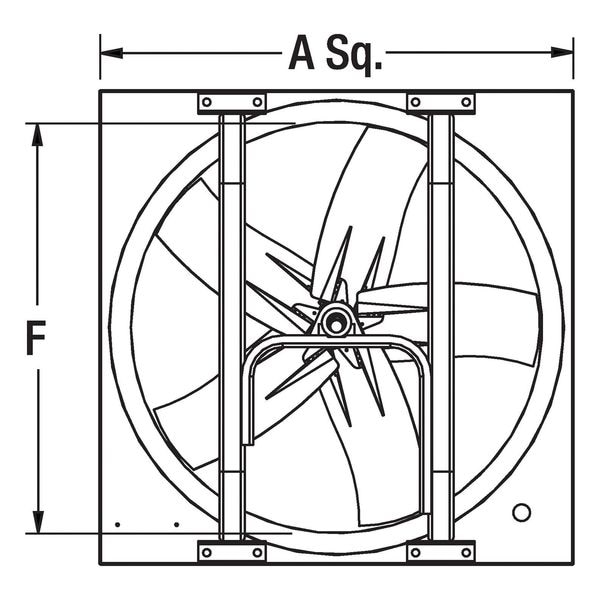

| Dimension A | 24 in |
| Hz | 60 Hz |
| Motor Insulation | Class B |
| Venturi Depth | 3-1/2 in |
| Dimension F | 20 1/2 in |
| Mounting Position | Horizontal or Vertical |

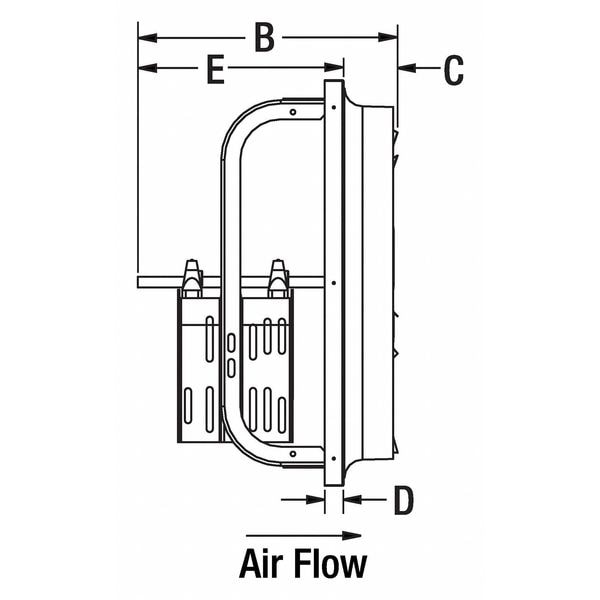

| Dimension B | 19-1/2 in |
| Sones @ 0.000-In. SP @ 5 Ft. | 16.1 |
| Number of Blades | 5 |
| Max. BHP | 0.3945 |
| Height | 24 in |
| Max. Inlet Temp. | 104 Degrees F |
| Dimension E | 16-1/4 in |
| Venturi Clearance Dia. | 20-1/2 in |
| Intake Guard No. | 1WBU2 |
| Frame Material | Steel |
| Phase | 1 |
| Assembled/Unassembled | Unassembled |
| Stock No. | 3FKD8 |
| Bearing Type | Sealed Pillow Block |
| Motor RPM | 1,725 rpm |
| Flange Depth | 1 in |
| Galvanized Wall Shutter No. | 1C745 |
| Standards | AMCA, UL, cUL |
| Guard Type | None |
| Includes Dehumidistat | No |
| Includes Grill | No |
| Full Load Current | 6.6 A |
| Exhaust Airflow @ 0.000 in SP | 4,844 cfm |
| Number of Shutters | 0 |
| For Cut-Out Height | 22-1/2 in |
| Venturi Diameter | 20-1/2 in |
| Motor Speed | 1,725 rpm |
| Nameplate Voltage | 115/208-230V AC |
| For Cut-Out Length | 22-1/2 in |
| Overall Width | 24 in |
| Includes Motor | Yes |
| For Cut-Out Width | 22-1/2 in |
| Ventilation Type | Exhaust |
| Number of Speeds | 1 |
| Fan Style | Panel |
| Noise Level @ 0.125 in SP @ 5 ft | 16 sones |
| Blade Finish | Galvanized |
| Maximum Noise Level | 16.1 sones |
| Maximum Inlet Temperature | 104 Degrees F |
| Assembled | Unassembled |
| Speed Controllable | No |
| Overall Depth | 19-1/2 in |
| Drive Type | Belt Drive |
| Motor Horsepower | 0.3333 HP |
| Manufacturer Warranty Length | 1 yr |
| Frame Finish | Zinc Plated |
| Noise Level @ 0.000 in SP @ 5 ft | 16.1 sones |
| Shaft Diameter | 3/4 in |
| Maximum Airflow | 4,844 cfm |
| Exhaust Airflow @ 0.125 in SP | 4,156 cfm |
| Blade Diameter | 20 in |
| Overall Height | 24 in |
| Vent Design | Ductless |
| Blade Material | Steel |
| Frequency | 60 Hz |
| Mounting Orientation | Horizontal, Vertical |
| Number of Fans | 1 |
| Width | 24 in |
| Voltage | 115/208-230 |
| Country of Origin (subject to change) | Multiple |
| Package Quantity | 1 |
