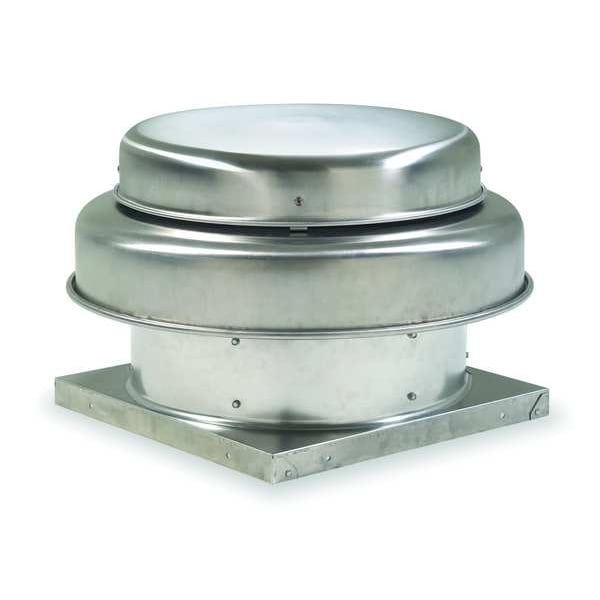

Exhaust Vent, 14 In, RPM: 1750
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Item | Axial Downblast Roof Exhaust Fan |
| Propeller Dia. | 14 in |
| Voltage | 115/230 |
| Motor HP | 0.5 |
| CFM @ 0.125-In. SP | 2,298 |
| CFM @ 1.000-In. SP | 716 |

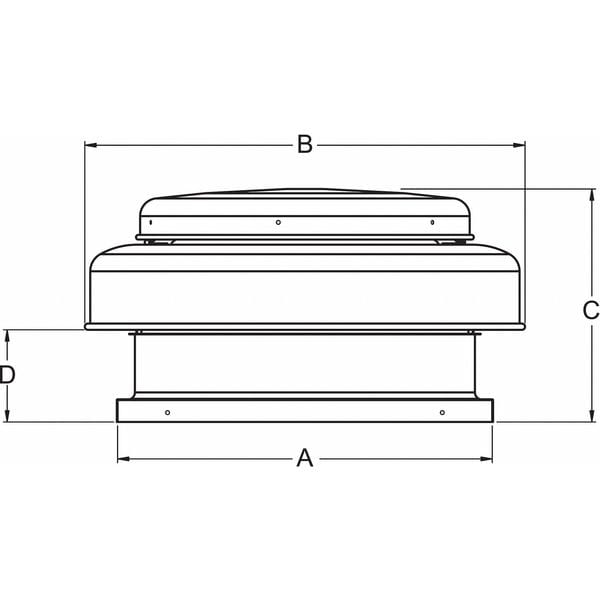

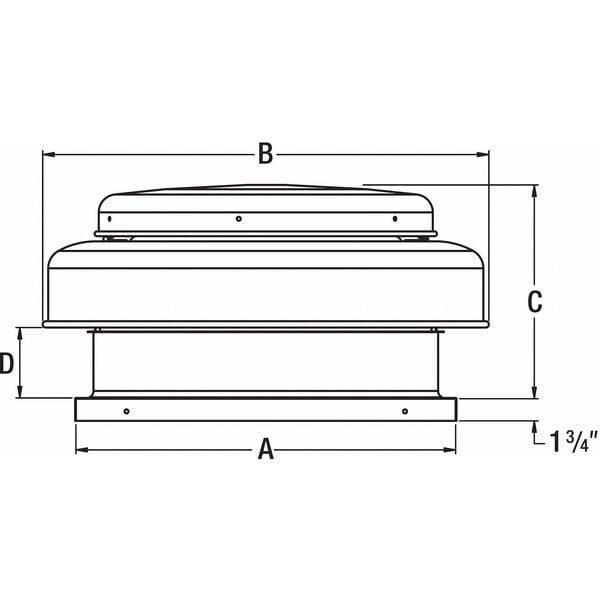

| Dimension B | 28-5/8 in |
| Base Length | 22 in |
| Includes | NEMA 1 Junction Box |
| Base Top to Shroud | 6 1/4 in |
| Dimension D | 6-1/4 in |
| Recommended Damper Stock No. | 4HX65 |
| Recommended 8 In. Fixed Curb Item No. | 4HX39 |
| Shaft Dia. Propeller End | 1/2 in |
| Overall Dia. | 28-5/8 in |
| Overall Height | 18-1/4 in |
| CFM @ 0.625-In. SP | 1,381 |
| Max. Inlet Temp. | 120 Degrees F |
| Max. Operating Watts | 380 W |
| Speed Control | 48C173 |
| CFM @ 0.375-In. SP | 1,875 |
| Sones @ 0.250-In. SP @ 5 Ft. | 16.2 |
| Speed Controllable | Yes |
| Sones @ 0.125-In. SP @ 5 Ft. | 16.3 |
| Housing Material | Aluminum |
| Dimension A | 22 in |
| Standards | AMCA Sound and Air, UL/cUL 705 |
| CFM @ 0.500-In. SP | 1,603 |
| Recommended 12 In. Fixed Curb Item No. | 2RB76 |
| Propeller Material | Aluminum |
| Base Height | 1 3/4 in |
| Adj. 12 3/8"H Roof Curb Stock No. | 2ZV82 |
| CFM @ 0.000-In. SP | 2,457 |
| Dimension C | 16-1/2 in |
| CFM @ 0.750-In. SP | 1,244 |
| CFM @ 0.875-In. SP | 984 |
| RPM | 1750 |
| CFM @ 0.250-In. SP | 2,093 |
| Adj. 6 3/8"H Roof Curb Stock No. | 4c453 |
| Base Width | 22 in |
| Max. Operating Amps | 4.4 |

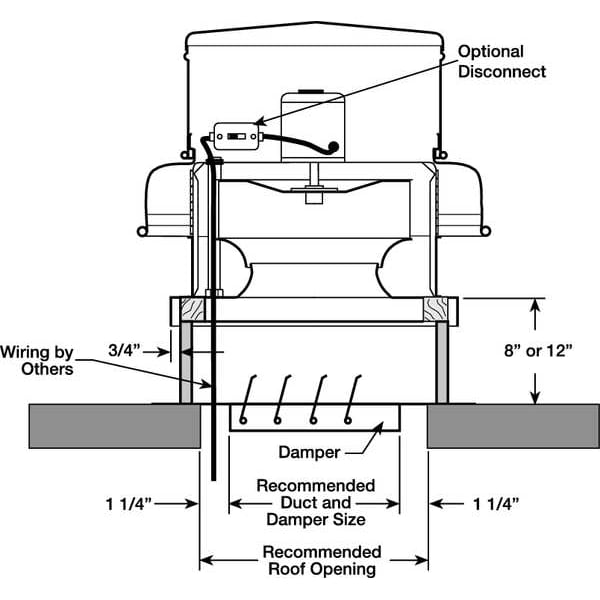

| Requires | Roof Curb for New Installation |
| Mounting Location | Roof |
| Max. BHP | 0.4044 |
| Hz | 60 |
| Phase | 1 |
| Recommended Damper Size | 15 in x 15 in |
| Overall Length | 28-5/8 in |
| Overall Width | 28-5/8 in |
| Application | Industrial and Commercial Applications |
| Features | Fully Rolled Baffle Bead for Stability and Ease of Transport With Spun Aluminum Hood Construction, Galvanized Steel Venturi, Inlet and Supports, NEMA 1 Junction Box Located in Motor Enclosure |
| Base Shape | Square |
| Blade Diameter | 14 in |
| Housing Material Fabrication | Spun |
| Safety Features | Birdscreen |
| Includes Drive Package | Yes |
| Exhaust Airflow @ 0.000 in SP | 2,457 cfm |
| Housing Width | 28.6 in |
| Exhaust Airflow @ 0.125 in SP | 2,298 cfm |
| Maximum Static Pressure | 1 in wc |
| Exhaust Airflow @ 0.500 in SP | 1,603 cfm |
| Exhaust Airflow @ 0.250 in SP | 2,093 cfm |
| Cutout Size | 17-1/2 in L x 17-1/2 in W |
| Nameplate Voltage | 115/230V AC |
| Number of Speeds | 1 |
| Maximum Inlet Air Temperature | 120 Degrees F |
| Compatible Curb Manufacturer Part Number | 2RB76, 2ZV82, 4C453, 4C670, 4HX39, 4HX47 |
| Damper Size | 15 in x 15 in |
| Mount Type | Roof Curb |
| Motor Horsepower | 0.5 HP |
| For Air Type | Clean Air |
| Exhaust Airflow @ 0.375 in SP | 1,875 cfm |
| Motor Enclosure | Open Dripproof |
| Blade Design | Swept Steeply Pitched |
| Base Diameter | Not Applicable |
| Frequency | 60 Hz |
| Blade Material | Aluminum |
| Assembly | Assembled |
| Includes Motor | Yes |
| Electrical Connection | Power Cord |
| Current | 6.0/3.0 A |
| Maximum Fan Speed | 1,750 rpm |
| Power Consumption | 380 W |
| Propeller Shaft Diameter | 1/2 in |
| Supply Airflow @ 0.000 in SP | 2,457 cfm |
| High-Efficiency Motor | No |
| Drive Type | Direct Drive |
| Airflow @ 0.000 in SP | 2,457 cfm |
| Overall Diameter | 28.6 in |
| Sound Level | 16.1 sones @ 0.375 in SP and 5 ft, 16.2 sones @ 0.250 in SP and 5 ft, 16.3 sones @ 0.125 in SP and 5 ft, 16.8 sones @ 0.000 in SP and 5 ft, 18.4 sones @ 0.750 in SP and 5 ft, 19.2 sones @ 0.500 in SP and 5 ft, 19.3 sones @ 0.875 in SP and 5 ft, 19.5 sones @ 0.625 in SP and 5 ft, 22.0 sones @ 1.000 in SP and 5 ft |
| Cutout Length | 17-1/2 in |
| Number of Blades | 4 |
| Motor Location | In Airstream |
| For High-Static Pressure Applications | No |
| Brake Horsepower | 0.41 HP |
| Compatible Speed Control | 48C173 |
| Housing Length | 28.6 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
