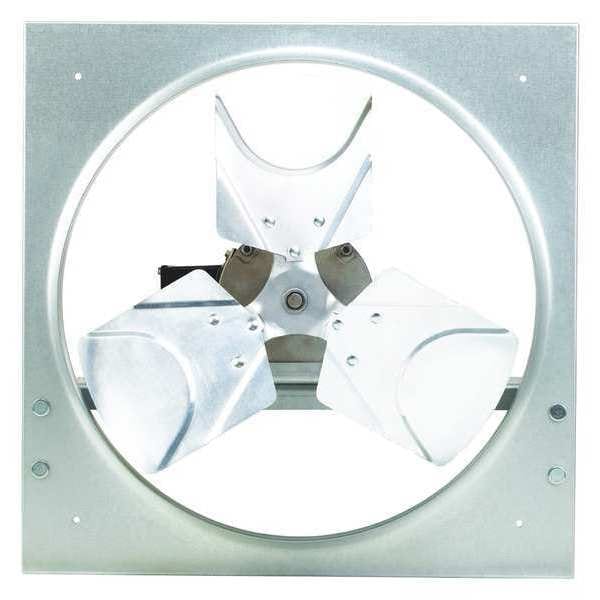

Exhaust/Supply Fan, 16 In, 3 Phase
| Exhaust/Supply Fan Item | Reversible Exhaust/Supply Fan |
|---|---|
| Drive Package With Motor Included | No |
| Exhaust/Supply Fan Motor HP | 0.25 HP |
| Blade Dia. | 16 in |
| Fan Voltage | 208-230/460V AC |
| Motor Enclosure | Totally Enclosed Air Over |
| Fan RPM | 1750/1742 |
| Exhaust/Supply CFM @ 0.000-In. SP | 2226/1926 |
| Operating Amps | 1.5-1.6/0.9 |
| Type | Direct Drive Reversible |
| Recommended Wall Collar | 16D552 |
| Mounting Position | Vertical |
| Speed | 1 |

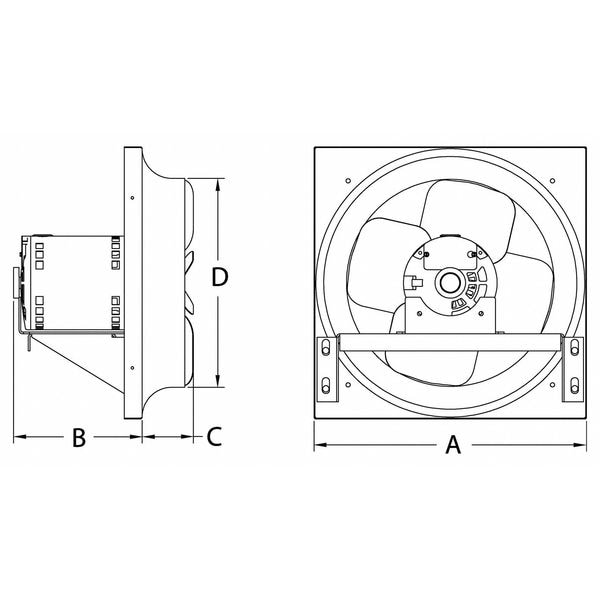

| Dimension D (In.) | 16-3/8 |
| Phase | 3 |
| Max. Depth (In.) | 12-13/16 |
| Exhaust/Supply CFM @ 0.250-In. SP | 1654/1420 |
| Agency Compliance | UL and cUL Listed, AMCA |
| Max. Ambient Temp. (F) | 104 Degrees F |
| Recommended Intake Guards | 1WBT9 |
| Propeller Material | Aluminum |
| Dia. Opening Required (In.) | 18 |
| Hz | 60 |
| Max. Inlet Temp. (Deg. F) | 104 |
| Exhaust/Supply CFM @ 0.375-In. SP | 1181/1081 |
| Number of Blades | 3 |
| Shaft Dia. (In.) | 1/2 |
| Dimension A (In.) | 20 |
| Height (In.) | 20 |
| Drive Package Included | No |
| Bearing Type | Ball |
| Motor RPM | 1750/1742 |
| Includes | Reversing Switch |
| Motor Insulation | Class B |
| Item | Exhaust/Supply Fan |
| Dimension B (In.) | 7 |
| Exhaust/Supply CFM @ 0.125-In. SP | 1993/1739 |
| Recommended Wall Housing | 3FKF5 |
| Frame Finish | Galvanized |
| Width (In.) | 20 |
| Dimension C (In.) | 2-7/8 |
| Motor Type | 3-Phase |
| Overall Diameter | 1/2 in |
| Supply Airflow @ 0.375 in SP | 1,081 cfm |
| Frame Material | Steel |
| Supply Airflow @ 0.250 in SP | 1,420 cfm |
| Overall Depth | 12-13/16 in |
| Exhaust Airflow @ 0.375 in SP | 1,081 cfm |
| Supply Airflow @ 0.125 in SP | 1,739 cfm |
| Motor Horsepower | 0.25 HP |
| Maximum Inlet Temperature | 104 Degrees F |
| For Cut-Out Diameter | 18 in |
| Includes Motor | Yes |
| Nameplate Voltage | 208-230/460V AC |
| Mounting Orientation | Vertical |
| Ventilation Type | Reversible |
| Overall Width | 20 in |
| Maximum Ambient Operating Temperature | 104 Degrees F |
| Blade Diameter | 16 in |
| Fan Style | Panel |
| Exhaust Airflow @ 0.000 in SP | 2,226 cfm |
| Blade Material | Aluminum |
| Overall Height | 20 in |
| Motor Speed | 1,750 rpm |
| Supply Airflow @ 0.000 in SP | 1,926 cfm |
| Standards | AMCA, Listed, UL, cUL |
| Exhaust Airflow @ 0.125 in SP | 1,993 cfm |
| Exhaust Airflow @ 0.250 in SP | 1,420 cfm |
| Voltage | 208-230/460 |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
