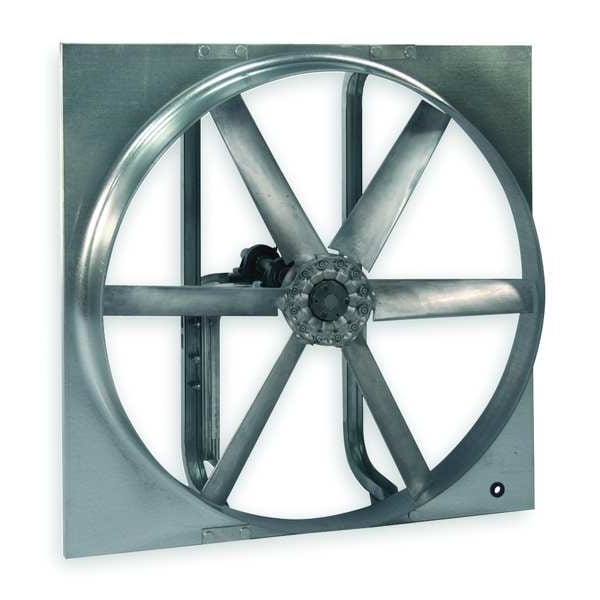

Exhaust/Supply Fan, 48 In Less Drive Pkg
| Exhaust/Supply Fan Item | Reversible Exhaust/Supply Fan |
|---|---|
| Drive Package With Motor Included | No |
| Blade Dia. | 48 in |
| Type | Belt Drive Reversible |

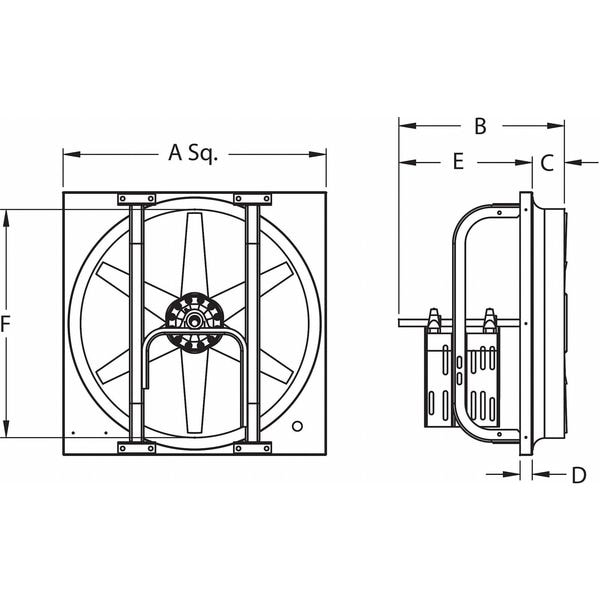

| Width (In.) | 54 |
| Height (In.) | 54 |
| Max. Depth (In.) | 23-1/2 |
| Dimension C (In.) | 7 |
| Dimension A (In.) | 54 |
| Speed | 1 |
| Max. Inlet Temp. (Deg. F) | 104 |
| Drive Package Included | No |
| Mounting Position | Vertical |
| Frame Finish | Zinc Plated |
| Bearing Type | Regreasable Cast Pillow Block |
| Dimension D (In.) | 2 |
| Max. Ambient Temp. (F) | 104 Degrees F |
| Item | Exhaust/Supply Fan |
| Dimension E (In.) | 16-1/2 |
| Recommended Intake Guards | 1WBU7 |
| Dimension F (In.) | 48-1/2 |
| Number of Blades | 6 |
| Dimension B (In.) | 23-1/2 |
| Shaft Dia. (In.) | 1-1/2 |
| Propeller Material | Cast Aluminum |
| Overall Height | 54 in |
| Overall Width | 54 in |
| Standards | C-UL Listed, UL Listed |
| For Cut-Out Diameter | 50-1/2 in |
| Mounting Orientation | Horizontal or Vertical |
| Manufacturer Warranty Length | 1 yr |
| Flange Width | 54 in |
| Maximum Static Pressure | 0.75 in wg |
| Blade Material | Aluminum |
| Minimum Airflow | 19,105 cfm |
| For Maximum Motor Speed | 1,007 rpm |
| Maximum Inlet Temperature | 104 Degrees F |
| Maximum Ambient Operating Temperature | 104 Degrees F |
| Flange Depth | 2 in |
| Ventilation Type | Reversible |
| For Minimum Motor Speed | 539 RPM |
| Blade Diameter | 48 in |
| Guard Type | None |
| For Cut-Out Width | 50-1/2 in |
| For Minimum Motor Horsepower | 0.75 HP |
| Method of Construction | Cast |
| Frame Material | Steel |
| Overall Diameter | 1-1/2 in |
| Venturi Diameter | 48-1/2 in |
| For Maximum Motor Horsepower | 5 HP |
| Includes Motor | No |
| Venturi Depth | 7 in |
| For Cut-Out Height | 50 1/2 in |
| Fan Style | Panel |
| Assembled | Unassembled |
| Maximum Airflow | 35,694 cfm |
| Overall Depth | 23-1/2 in |
| Shaft Diameter | 1-1/2 in |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
