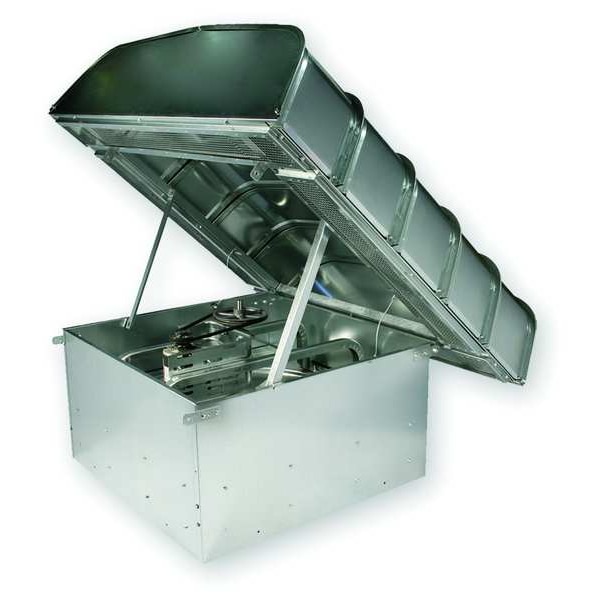

Exhaust/Supply Vent, 115/208-230 V
| Item - Roof Ventilators | Ventilator |
|---|---|
| Drive Type - Roof Ventilators | Belt Drive |
| Blade Dia. | 30 in |
| Voltage - Roof Ventilators | 115V AC/208-230V AC |
| Motor HP - Roof Ventilators | 0.3333 HP |
| Base Size - Roof Ventilators | 34-1/2 in x 34-1/2 in |
| Overall Height - Roof Ventilators | 38 in |
| Overall Width - Roof Ventilators | 57 in |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Includes | Drive Package, Hood, Wall-Mounted Reversing Switch |
| Recommended 12 3/8"H Roof Curb Item No. | 2ZV84 |
| Propeller Material | Cast Aluminum |
| Style - Roof Ventilators | Hooded |
| Full Load Amps | 5.9/2.8-2.9 |
| Recommended Gravity Backdraft Damper Item No. | 3HHL8 |
| Hz | 60 Hz |
| Recommended 6 3/8"H Roof Curb Item No. | 4C455 |
| Height (In.) | 38 |
| Motor Type | Split Phase |
| Dimension C | 60 in |
| Dimension F | 7-1/2 in |
| Width (In.) | 57 |
| Bearing Type | Sealed Pillow Block |
| Dimension F (In.) | 7-1/2 |
| Fan RPM | 714 |
| Max. Ambient Temp. (F) | 104 Degrees F |
| Number of Blades | 6 |
| Dimension D | 38 in |
| Max. Inlet Temp. (Deg. F) | 104 Degrees F |
| Dimension B (In.) | 57 |
| Dimension A | 34-1/2 in |
| Motor HP | 0.3333 |
| Max. BHP | 0.3748 |
| Base Square Size - Roof Ventilators | 34-1/2 in x 34-1/2 in |
| Mounting Position | Horizontal |
| Type | Axial Belt Drive Downblast |
| Motor RPM | 1,725 rpm |
| Exhaust/Supply CFM @ 0.125-In. SP | 4,604 |
| Shaft Dia. (In.) | 1 |
| Propeller Dia. (In.) | 30 |
| Item | Axial Downblast Roof Supply/Exhaust Fan |
| Dimension B | 57 in |
| Assembled/Unassembled | Unassembled |
| Dimension E | 22 in |
| Exhaust/Supply CFM @ 0.000-In. SP | 5,991 |
| Dimension E (In.) | 22 |
| Max. Depth (In.) | 60 |
| Phase | 1 |
| Dimension A (In.) | 34-1/2 |
| Dimension D (In.) | 38 |
| Bearing Size (In.) | 1 |
| Dimension C (In.) | 60 |
| Voltage | 115/208-230 |
| Frame Material | Galvanized Steel |
| Maximum Inlet Air Temperature | 104 Degrees F |
| Assembly | Unassembled |
| Blade Material | Steel |
| Hood Width | 57 in |
| Hood Length | 60 in |
| Mount Type | Roof Curb |
| Housing Finish | Galvanized |
| Application | Factories, Large Facilities, Warehouses |
| Features | Strong and Weathertight Hood |
| Hood Height | 16 in |
| Mounting Orientation | Horizontal |
| Nameplate Voltage | 115/208-230V AC |
| Overall Width | 57 in |
| Includes Drive Package | Yes |
| Overall Diameter | Not Applicable |
| Maximum Ambient Temperature | 104 Degrees F |
| Base Length | 34-1/2 in |
| Supply Airflow @ 0.000 in SP | 5,991 cfm |
| For Air Type | Clean Air |
| Damper Size | 30 in x 30 in |
| Drive Type | Belt Drive |
| Overall Height | 38 in |
| Base Shape | Square |
| Current | 7.8/3.9-4.0 A |
| Blade Diameter | 30 in |
| Exhaust Airflow @ 0.000 in SP | 5,991 cfm |
| Base Height | 22 in |
| Compatible Curb Manufacturer Part Number | 2ZV84, 3AZH8, 3C438, 4C455 |
| Overall Length | 60 in |
| For High-Static Pressure Applications | No |
| Includes Motor | Yes |
| Motor Speed | 1,725 rpm |
| Number of Speeds | 1 |
| Maximum Static Pressure | 1/8 in wc |
| Housing Length | 34-1/2 in |
| Blade Finish | Galvanized |
| Maximum Fan Speed | 714 RPM |
| Base Width | 34-1/2 in |
| Housing Width | 34-1/2 in |
| Propeller Shaft Diameter | 1 in |
| High-Efficiency Motor | No |
| Housing Material | Steel |
| Airflow @ 0.000 in SP | 5,991 cfm |
| Standards | AMCA Sound and Air, UL/cUL 705 |
| Speed Controllable | No |
| Base Diameter | Not Applicable |
| Resistance Properties | Weather Resistant |
| Frequency | 60 Hz |
| Brake Horsepower | 19/50 hp |
| Motor Horsepower | 0.3333 HP |
| Country of Origin (subject to change) | Multiple |
| Package Quantity | 1 |
