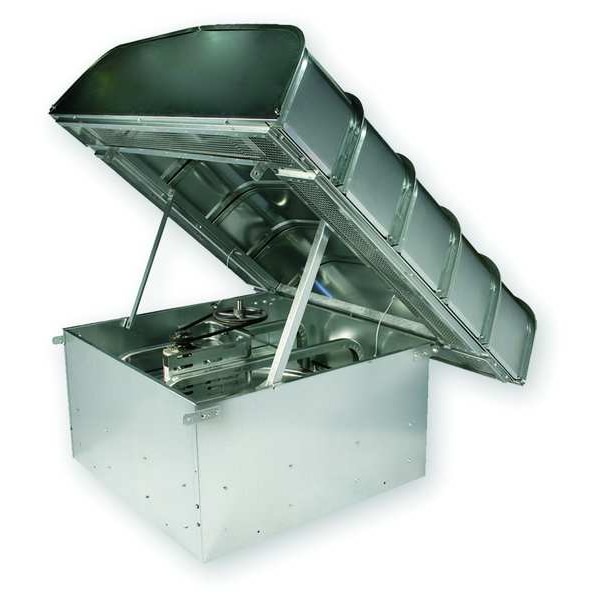

Exhaust/Supply Vent, 115/208-230 V
| Item - Roof Ventilators | Ventilator |
|---|---|
| Drive Type - Roof Ventilators | Belt Drive |
| Blade Dia. | 48 in |
| Voltage - Roof Ventilators | 115V AC/208-230V AC |
| Motor HP - Roof Ventilators | 0.75 HP |
| Base Size - Roof Ventilators | 54-1/2 in x 54-1/2 in |
| Overall Height - Roof Ventilators | 42-1/2 in |
| Overall Width - Roof Ventilators | 90 in |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Recommended 12 3/8"H Roof Curb Item No. | 2ZV87 |
| Dimension E | 26-1/2 in |
| Dimension F | 12 in |
| Dimension F (In.) | 12 |
| Max. Depth (In.) | 84 |
| Bearing Type | Sealed Pillow Block |
| Exhaust/Supply CFM @ 0.125-In. SP | 10,334 |
| Mounting Position | Horizontal |
| Phase | 1 |
| Frame Material | Galvanized Steel |
| Dimension A (In.) | 54-1/2 |
| Full Load Amps | 11.0/5.4-5.5 |
| Number of Blades | 6 |
| Width (In.) | 90 |
| Dimension C (In.) | 84 |
| Motor Type | Capacitor-Start |
| Exhaust/Supply CFM @ 0.000-In. SP | 14,711 |
| Fan RPM | 539 |
| Max. Inlet Temp. (Deg. F) | 104 Degrees F |
| Style - Roof Ventilators | Hooded |
| Dimension B (In.) | 90 |
| Voltage | 115/208-230 |
| Bearing Size (In.) | 1-1/2 |
| Dimension B | 90 in |
| Item | Axial Downblast Roof Supply/Exhaust Fan |
| Base Square Size - Roof Ventilators | 54-1/2 in x 54-1/2 in |
| Shaft Dia. (In.) | 1-1/2 |
| Height (In.) | 42-1/2 |
| Dimension D | 42-1/2 in |
| Propeller Dia. (In.) | 48 |
| Dimension E (In.) | 26-1/2 |
| Recommended Gravity Backdraft Damper Item No. | 6WRK8 |
| Max. Ambient Temp. (F) | 104 Degrees F |
| Recommended 6 3/8"H Roof Curb Item No. | 3C216 |
| Assembled/Unassembled | Unassembled |
| Max. BHP | 0.8482 |
| Type | Axial Belt Drive Downblast |
| Dimension D (In.) | 42-1/2 |
| Dimension A | 54-1/2 in |
| Motor HP | 0.75 |
| Includes | Drive Package, Hood, Wall-Mounted Reversing Switch |
| Hz | 60 Hz |
| Propeller Material | Cast Aluminum |
| Motor RPM | 1,725 rpm |
| Dimension C | 84 in |
| Overall Height | 42-1/2 in |
| Supply Airflow @ 0.000 in SP | 14,711 cfm |
| Current | 11.0/5.4-5.5 A |
| Maximum Static Pressure | 1/8 in wc |
| Speed Controllable | No |
| High-Efficiency Motor | No |
| Hood Width | 90 in |
| Overall Diameter | Not Applicable |
| Maximum Fan Speed | 539 RPM |
| Resistance Properties | Weather Resistant |
| Propeller Shaft Diameter | 1-1/2 in |
| Housing Material | Steel |
| Exhaust Airflow @ 0.000 in SP | 14,711 cfm |
| Damper Size | 48 in x 48 in |
| Housing Length | 54-1/2 in |
| Housing Finish | Galvanized |
| Mount Type | Roof Curb |
| Overall Length | 84 in |
| Brake Horsepower | 43/50 hp |
| Base Height | 26-1/2 in |
| Frequency | 60 Hz |
| Compatible Curb Manufacturer Part Number | 2ZV86, 3AZJ6, 3C216, 3C439 |
| Assembly | Unassembled |
| Base Width | 54-1/2 in |
| Number of Speeds | 1 |
| Base Shape | Square |
| Motor Speed | 1,725 rpm |
| For Air Type | Clean Air |
| Motor Horsepower | 0.75 HP |
| Blade Diameter | 48 in |
| Overall Width | 90 in |
| Base Length | 54-1/2 in |
| Blade Material | Steel |
| Housing Width | 54-1/2 in |
| Base Diameter | Not Applicable |
| Hood Length | 84 in |
| Standards | AMCA Sound and Air, UL/cUL 705 |
| Maximum Inlet Air Temperature | 104 Degrees F |
| Features | Strong and Weathertight Hood |
| Includes Motor | Yes |
| Airflow @ 0.000 in SP | 14,711 cfm |
| Blade Finish | Galvanized |
| Maximum Ambient Temperature | 104 Degrees F |
| Application | Factories, Large Facilities, Warehouses |
| For High-Static Pressure Applications | No |
| Drive Type | Belt Drive |
| Mounting Orientation | Horizontal |
| Nameplate Voltage | 115/208-230V AC |
| Hood Height | 16 in |
| Includes Drive Package | Yes |
| Country of Origin (subject to change) | Multiple |
| Package Quantity | 1 |
