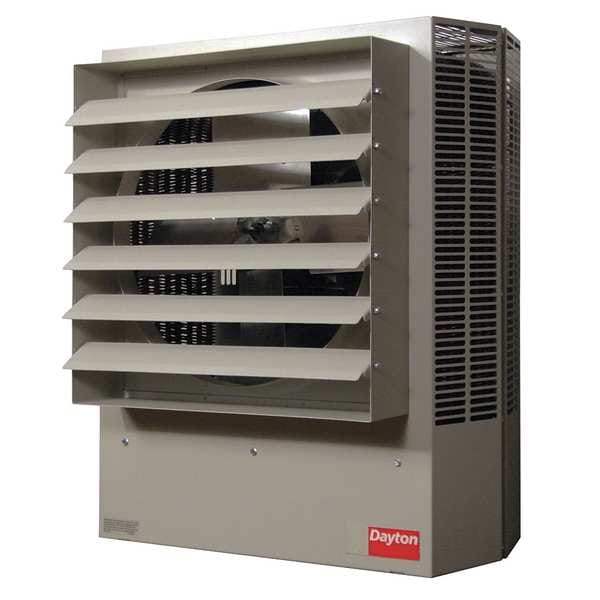

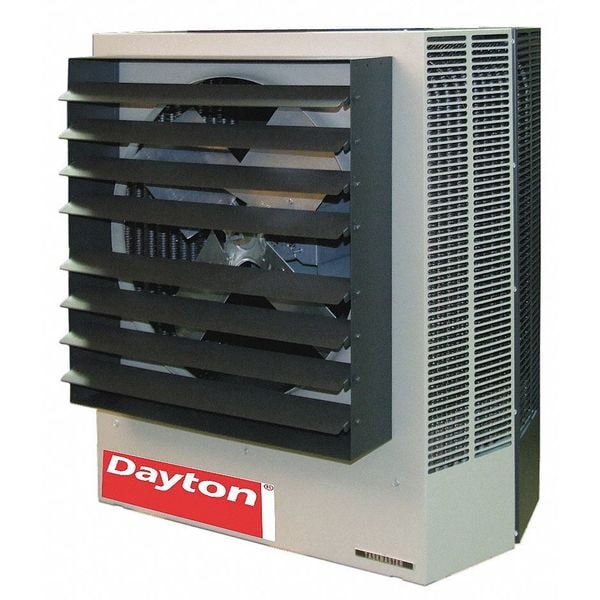

Fan Forced Electric Unit Heater, Wall & Ceiling, 3 Phase, 480VAC, 60kW, 35-1/2 in H, 30 1/2 in W
| Wattage Output | 60 kW |
|---|---|
| Heating Capacity | 204,700 BtuH |
| Voltage | 480VAC |
| Air Temp. Rise | 60°F |
| Air Flow | 3,400 cfm |
| Phase | 3 |
| Item | Electric Unit Heater |
| Amperage | 72.3A |
| Mounting Type | Wall & Ceiling |
| Heater Voltage | 480 V AC |
| Includes | Adjustable Louvers, Direct Wire with Hinged and Latched Access Door |
| Features | Totally Enclosed, Single Speed, Ball Bearing, Thermal Protected Fan Motor, Manual Reset Linear Thermal Protector |
| Housing Finish | Powder Coated |
| Contactor Coil Voltage | 24V AC |
| Hz | 60 |
| Vertical Mounting H | 31 ft |
| Height | 35-1/2 in |
| Requires | Mounting Bracket, Thermostat |
| Depth | 14-1/2" |
| Housing Material | Steel |
| Width | 30-1/2 in |
| Horizontal Air Throw | 50 ft |
| Standards | ETL Listed for US & Canada |
| Vertical Floor Coverage | 75 ft |
| Manufacturers Warranty Length | 1 yr |
| Overall Width | 30-1/2 in |
| Overall Height | 35-1/2 in |
| Voltage, Phase | 480V AC, 3-phase |
| Housing Color | Brown |
| Heating Method | Fan Forced |
| Frequency | 60 Hz |
| Overall Depth | 14-1/2 in |
| Control Type | Thermostat |
| Overall Dimensions - H x W x D | 35-1/2 in x 30-1/2 in x 14-1/2 in |
| Type | Fan Forced |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
